EliteAlarms EC-CAB PRO

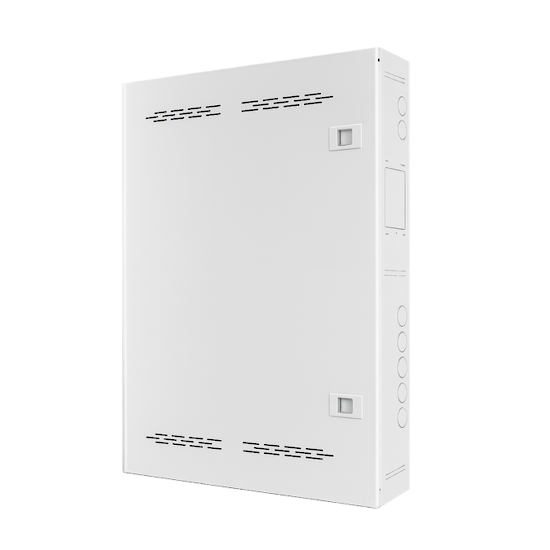

EliteAlarms EC-CAB PRO Large-Format Security Cabinet / Enclosure – Surface-Mount – Conduit & Trunking Entry Points – Efficient Heat Dissipation – Size: 562mm (H) x 444mm (W) x 99mm (D)

Introducing our purpose built EliteAlarms security cabinet for high end residential and small to medium commercial installations. Unlike generic enclosures, this cabinet is engineered with the Elite security system in mind. It offers the space, mounting flexibility and cable management required to neatly accommodate control panels, expanders, power supplies, wall/lid tamper switches and batteries, all within a robust, secure enclosure.

Whether you’re designing an intrusion, access control, or fully integrated security solution, the EC-CAB PRO delivers the space, flexibility, and scalability required to support a wide range of installation types and system sizes. Below are three example system configurations, showcasing the versatility and adaptability of the EC-CAB PRO.

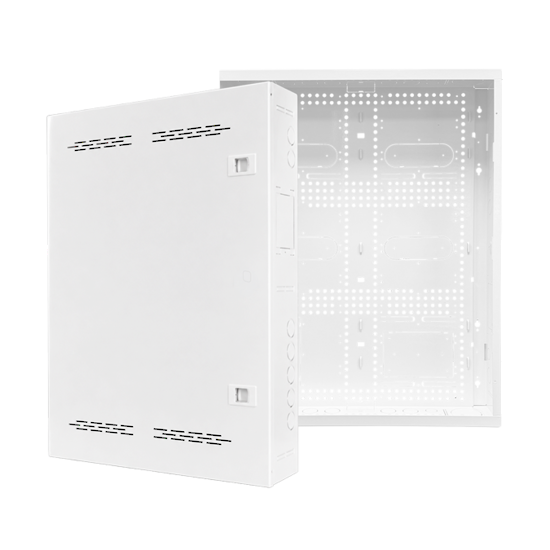

Designed for both surface and flush mounting, the removable hinged lid can be configured left or right for flexible access, and the enclosure also includes four GPO locations (two for flush mounting and two for surface mounting), plus multiple 20mm and 25mm conduit entry points and top and bottom trunking access for versatile cable routing.

Built with practicality in mind, the cabinet is stepped 6mm off the wall to allow for rear cable runs and press fit clips for power and data components, while extra internal width, integrated cable tie points, and SLA battery tabs enable clean, organised cable management without additional brackets.

Key Features :-

• Surface or Flush Mount (EC-CAB PRO FLUSH sold separately)
• Compatible with EC & EC-i, expanders & power supplies
• Removeable hinged lid for easy access
• 2 x Flush & 2 x Surface GPO locations
• Conduit and trunking entry points
• Built in cable management tie locations
• Integrated shelves for 12V 7.5A, 9A & 18A batteries

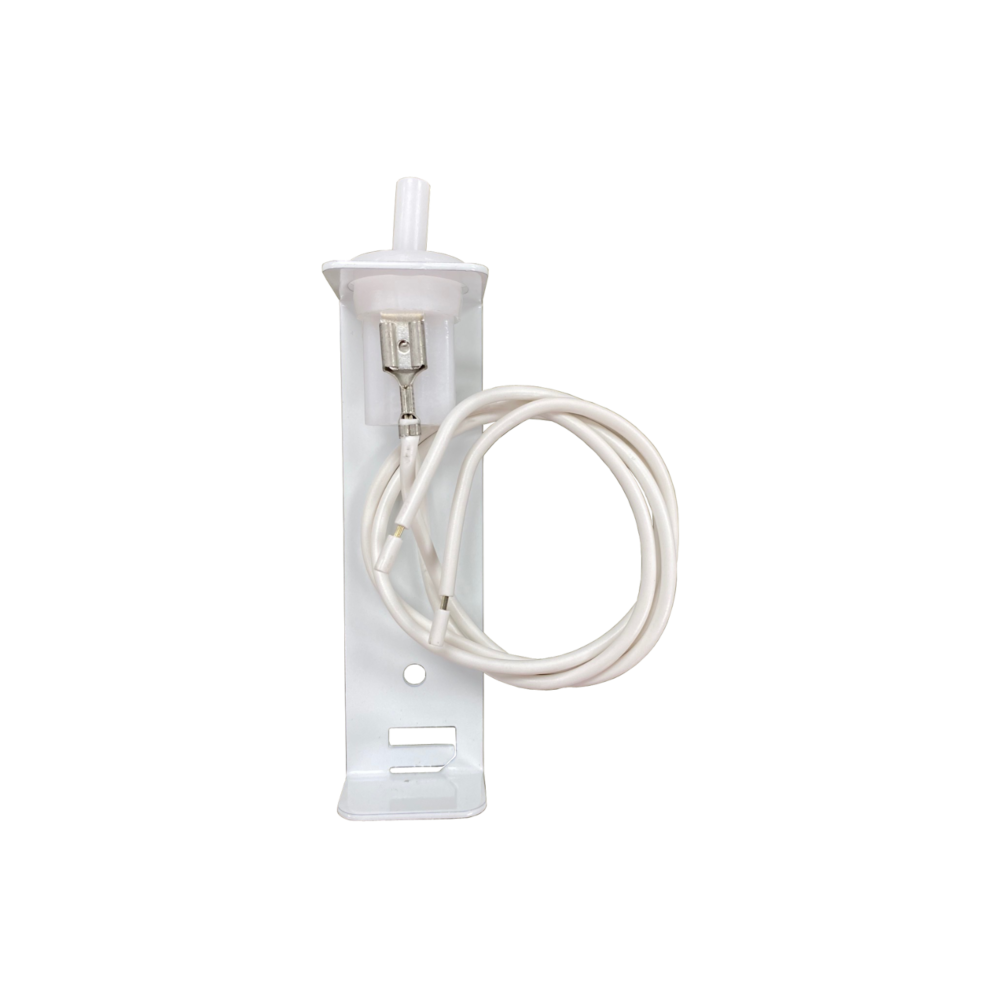

• 2 x Wall/lid tamper locations (EC-TAMPER M sold separately)

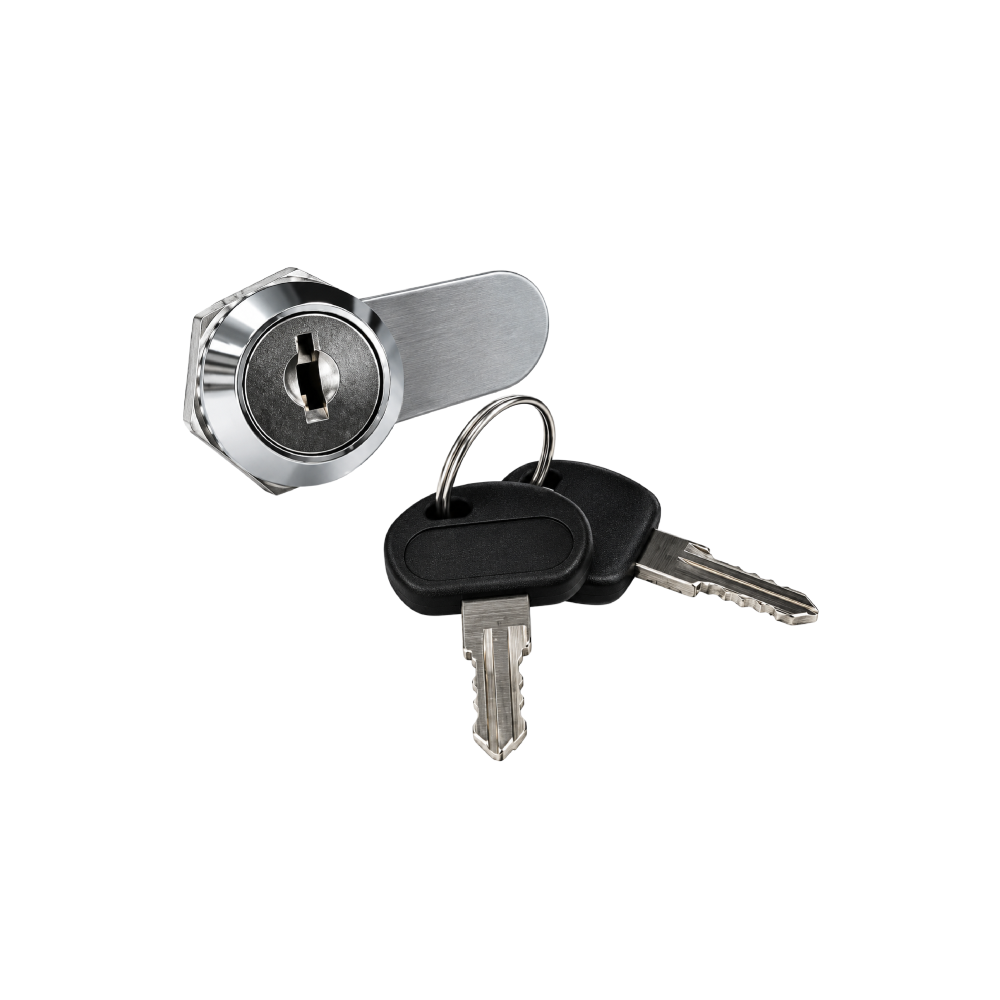

• Spring clip lid with optional cam lock
• Discrete, efficient heat dissipation
• Size: 562mm (H) x 444mm (W) x 99mm (D)
