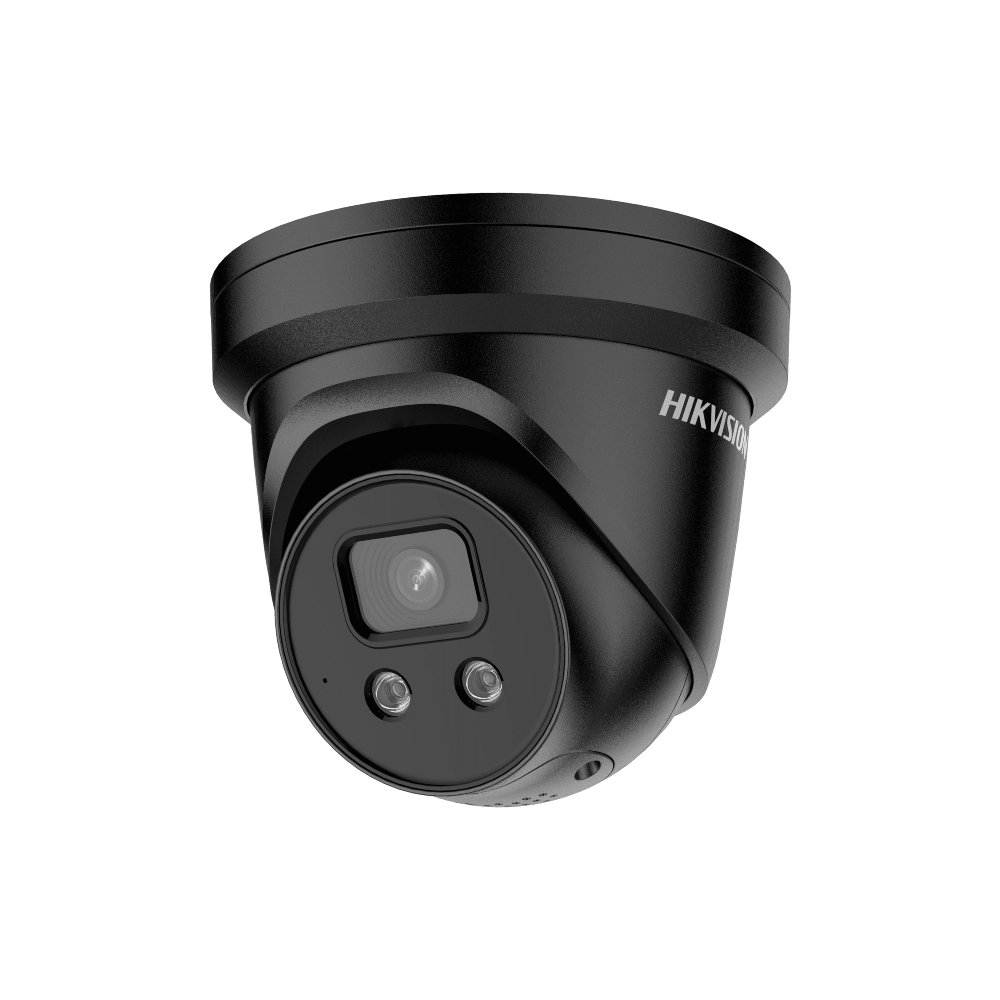

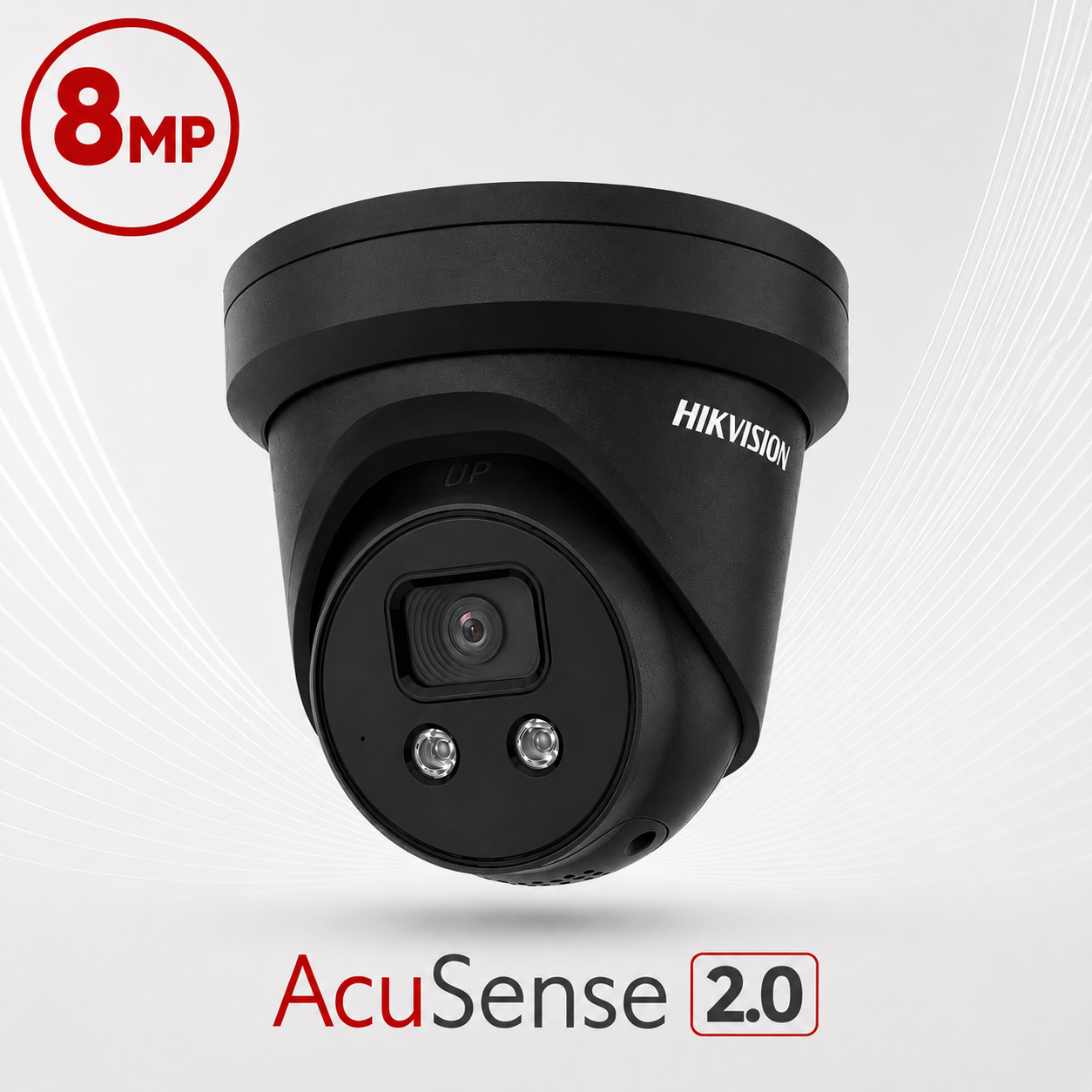

Hikvision DS-2CD2386G2-ISU/SL-BLK-2.8MM

Hikvision DS-2CD2386G2-ISU/SL-BLK-2.8MM AcuSense Gen2 H265 4K 8MP PoE IP EXIR (30m) 120dB True-WDR Darkfighter-Powered Low-light (0.003 Lux Colour) Weatherproof BLACK Eyeball Turret Camera with 2.8mm Fixed Lens, with Built-in Audio Mic + Strobe Light + Audio Alarm Siren + Speaker

  • Hikvision DS-1280ZJ-DM21-BLACK

    Hikvision DS-1280ZJ-DM21-BLACK Weatherproof Junction Box - Black

  • Hikvision DS-1273ZJ-140-BLACK

    Hikvision DS-1273ZJ-140-BLACK Weatherproof Wall-mount Bracket - Black Colour

  • Hikvision DS-1275ZJ-SUS-BLK

    Hikvision DS-1275ZJ-SUS-BLK Stainless Steel Weatherproof Universal Vertical Pole-mount Bracket - BLACK Colour

This product is currently unavailable.

Hikvision DS-2CD2386G2-ISU/SL-BLK-2.8MM AcuSense Gen2 H265 4K 8MP PoE IP EXIR (30m) 120dB True-WDR Darkfighter-Powered Low-light (0.003 Lux Colour) Weatherproof BLACK Eyeball Turret Camera with 2.8mm Fixed Lens, with Built-in Audio Mic + Strobe Light + Audio Alarm Siren + Speaker

Features :-

  • 8MP high resolution
  • 2.8mm fixed lens
  • Powered by Darkfighter for Ultra Low Light
  • Triple stream
  • Up to 30m IR distance
  • H.265+ compression
  • 4 analytics
  • Face Capture
  • Smart motion detection
  • IP67 weatherproof
  • 120dB wide dynamic range
  • Built-in microphone
  • Built-in speaker
  • Active strobe light and audio alarm to warn intruders off
  • Supports onboard storage (up to 256GB)
  • 12V DC & PoE (802.3af)

Hikvision Product-Link = DS-2CD2386G2-ISU/SL

Camera

  • Image Sensor: 1/1.8″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON)
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • P/N: P/N
  • Wide Dynamic Range: 120 dB
  • Day & Night: ICR Cut
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

  • Focal Length & FOV: 2.8mm -> horizontal FOV 102°, vertical FOV 55°, diagonal FOV 120°; 4mm -> horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°; 6mm -> horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
  • Aperture: F1.6
  • Lens Mount: M16

Illuminator

  • IR Range: Up to 30 m
  • IR Wavelength: 850 nm
  • Smart Supplement Light: Yes
  • Visual Alarm: Yes

Video

  • Max. Resolution: 3840 × 2160
  • Main Stream; 50Hz: 20fps (3840 × 2160, 3072 × 1728); 25fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60Hz: 20fps (3840 × 2160, 3072 × 1728) 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream: 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240): 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
  • Video Compression: Main stream: H.265 / H.264; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264
  • Video Bit Rate: 32Kbps to 16Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.264+: Main Stream supports
  • H.265+: Main Stream supports
  • Bit Rate Control: CBR / VBR
  • Scalable Video Coding (SVC): Yes
  • Region Of Interest (ROI): 1 fixed region for each stream

Audio

  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8kHz / 16kHz / 32kHz / 44.1kHz / 48kHz
  • Audio Compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM/MP3
  • Audio Bit Rate: 64Kbps (G.711ulaw/G.711alaw) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32-192Kbps (MP2L2) / 8-320Kbps(MP3)

Network

  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Smooth Streaming: Yes
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
  • Network Storage: microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+


  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

  • Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
  • Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone
  • On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Hardware Reset: Yes
  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Deep Learning Function

  • Face Capture: Yes
  • Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Intelligent (Traditional Algorithm)

  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection

General

  • Linkage Method: Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning
  • Web Client Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
  • Software Reset: Yes
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F)
  • Power Supply: 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3
  • Power Consumption And Current: 12 VDC, 0.75 A, max. 9 W; PoE: (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W
  • Power Interface: Ø5.5 mm coaxial power plug
  • Camera Material: Metal except for trim ring
  • Camera Dimension: Ø138.3 × 124.5 mm (Ø5.4″ × 4.9″)
  • Package Dimension: 170 × 170 × 150 mm (6.9″ × 6.9″ × 5.9″)
  • Camera Weight: Approx. 800 g (1.8 lb.)
  • With Package Weight: Approx. 1093 g (2.4 lb.)

Approval

  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: Ingression protection: IP67 (IEC 60529-2013)
Camera Resolution

8MP

Camera Type

Eyeball Camera, Turret Camera

Image Sensor Size

1 / 1.8"

Image Sensor Type

Darkfighter-Powered

IR Range

30M

Lens Type

Fixed Lens

Lenses

2.8MM

Surveillance Type

IP

Weatherproof

Yes

Weatherproof IP Rating

IP66

Wide Dynamic Range

120dB True WDR
