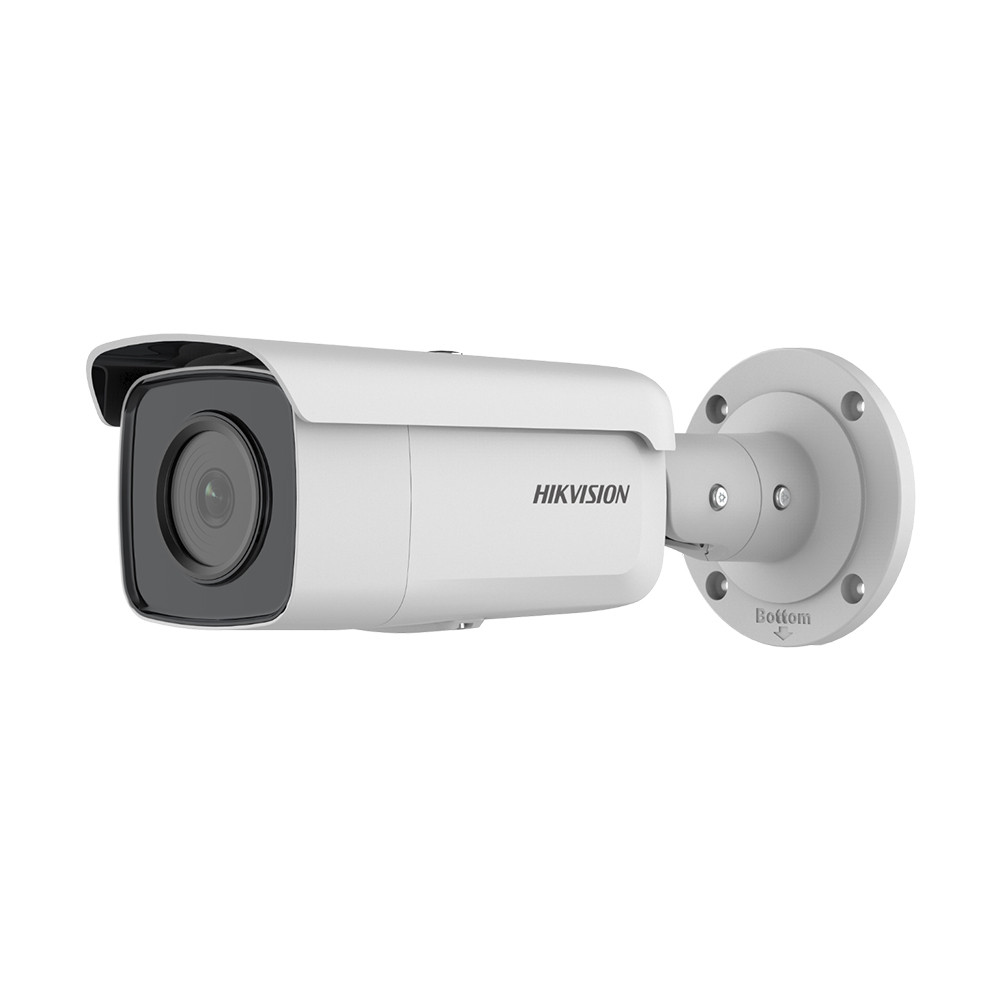

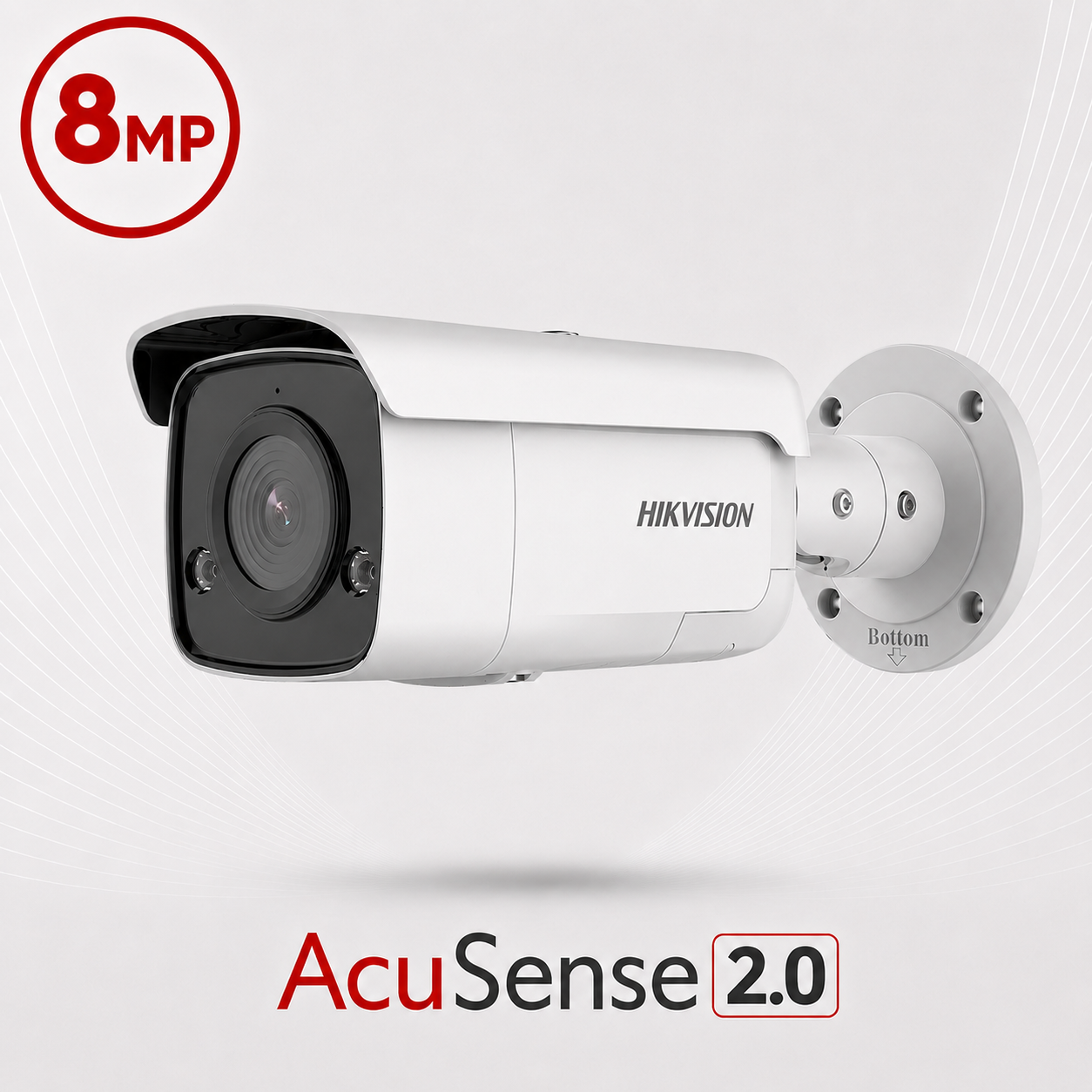

Hikvision DS-2CD2T86G2-2I-2.8MM

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 3840 x 2160
• Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI

• DORI: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: up to 60 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 25 fps (3840 x 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 x 2160); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings.
• Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264 (*Third stream is supported under certain settings.)
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 1 fixed region(s) for main stream and sub-stream

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log，TLS 1.1/1.2/1.3，host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC / TF card, up to 256 GB
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Deep Learning Function

• Face Capture: Yes

General

• Power: 12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W
• Dimension: Ø105 mm × 290 mm (Ø4.1″ × 11.4″)
• Package Dimension: 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
• Approx. 1270 g
• With Package Weight: Approx. 1510 g
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker

Approval

• EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013
