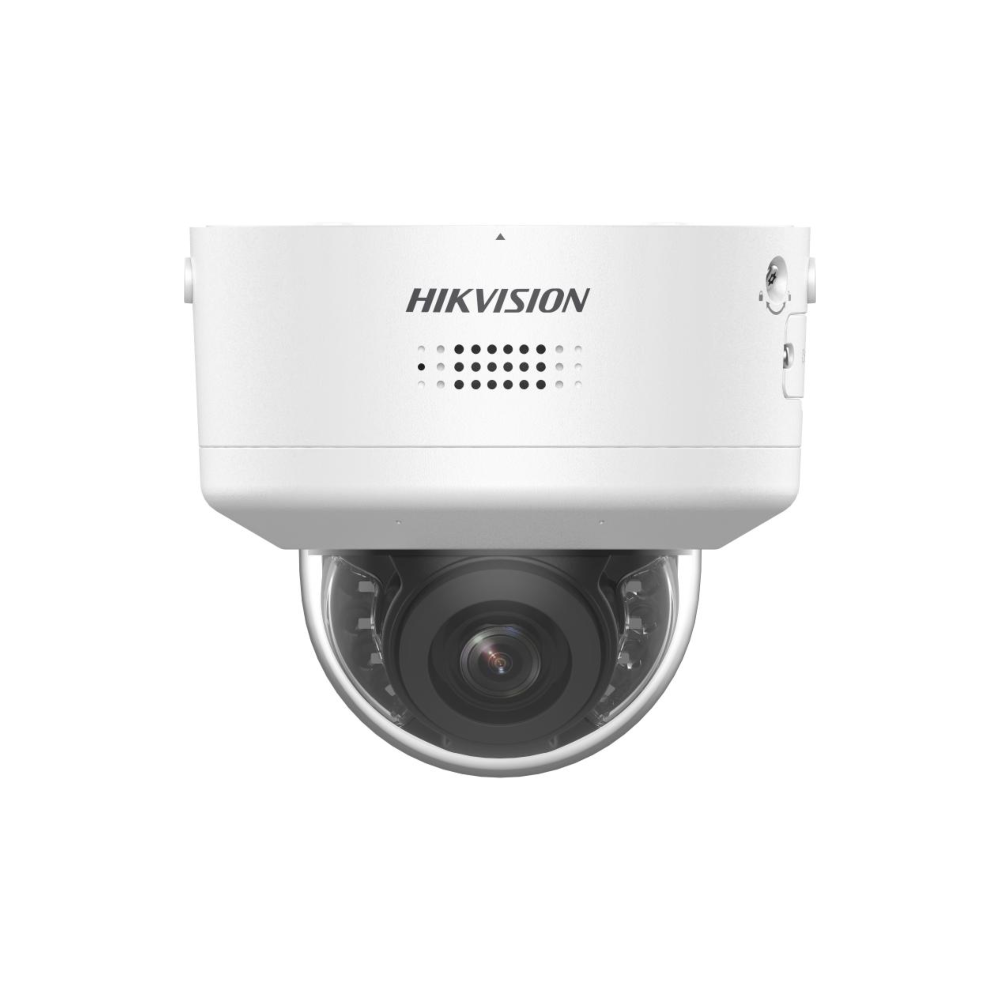

Hikvision DS-2CD3767G3T-LIZSUY/SL(PTRZ)

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON); 0 Lux with light
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Remote adjustment (Max. 1000 cycles); Pan: 0° to 350°, tilt: 0° to 85°; rotate: 0° to 350°

Lens

• Lens Type: Varifocal lens, motorized lens, 2.7 to 13.5 mm
• Focal Length & FOV: horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
• Lens Mount: Integrated
• Focus: Auto, Semi-auto, Manual
• Iris Type: Auto-iris
• Aperture: Max. F1.2
• Depth of Field: 1 m to ∞

DORI

• DORI:
  • • Wide: D: 74.3 m, O: 29.5 m, R: 14.9 m, I: 7.4 m
    • Tele: D: 183.3 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

HEOP

• Open Resources: Memory: 40 MB,; Smart RAM: 450 MB, eMMC: 2 GB
• Computing Power: 1.5 TOPS
• Open Capability: HEOP 2.0 OpendevSDK
• Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
• Programming Language: C, C++

Video

• Main Stream: 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings.
• Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360); *Fourth stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
• Target Cropping: Yes
• e-PTZ: Support Patrol and Auto Tracking settings

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Type: Mono sound
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, TPM 2.0 (FIPS 140-2 level 2), host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+; Local service: Chrome 91+, Firefox 88+, Edge 91+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 130 dB
• Image Enhancement: BLC, HLC,3D DNR, Distortion Correction, Defog
• SNR: ≥ 52 dB
• Image Stabilization: EIS
• Privacy Mask: 8 programmable polygon privacy masks

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes, 2 built-in microphones
• Built-in Speaker: 1* built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
• Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 3 inputs, 3 outputs (max. 24 VDC/24 VAC, 1 A)
• Reset Key: Yes
• Power Output: 12 VDC, max. 100 mA

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Smart Event: Scene change detection, audio exception detection, defocus detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning

Deep Learning Function

• Face Capture: Yes
• People Counting: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)

General

• Power: 12 VDC ± 25%, 1.35 A, max. 16.2 W,2-core terminal block,reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 18 W
• Dimension: Ø155 mm × 140.4 mm (Ø6.10″ × 5.53″)
• Package Dimension: 203 mm × 203 mm × 230 mm (7.99″ × 7.99″ × 9.06″)
• Approx. 1250 g (2.76 lb.)
• With Package Weight: Approx. 1900 g (4.19 lb.)
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Flashing LightWhite Light

Approval

• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety: CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
