Hikvision DS-2CD6825G0/C-IVS

Please login for price

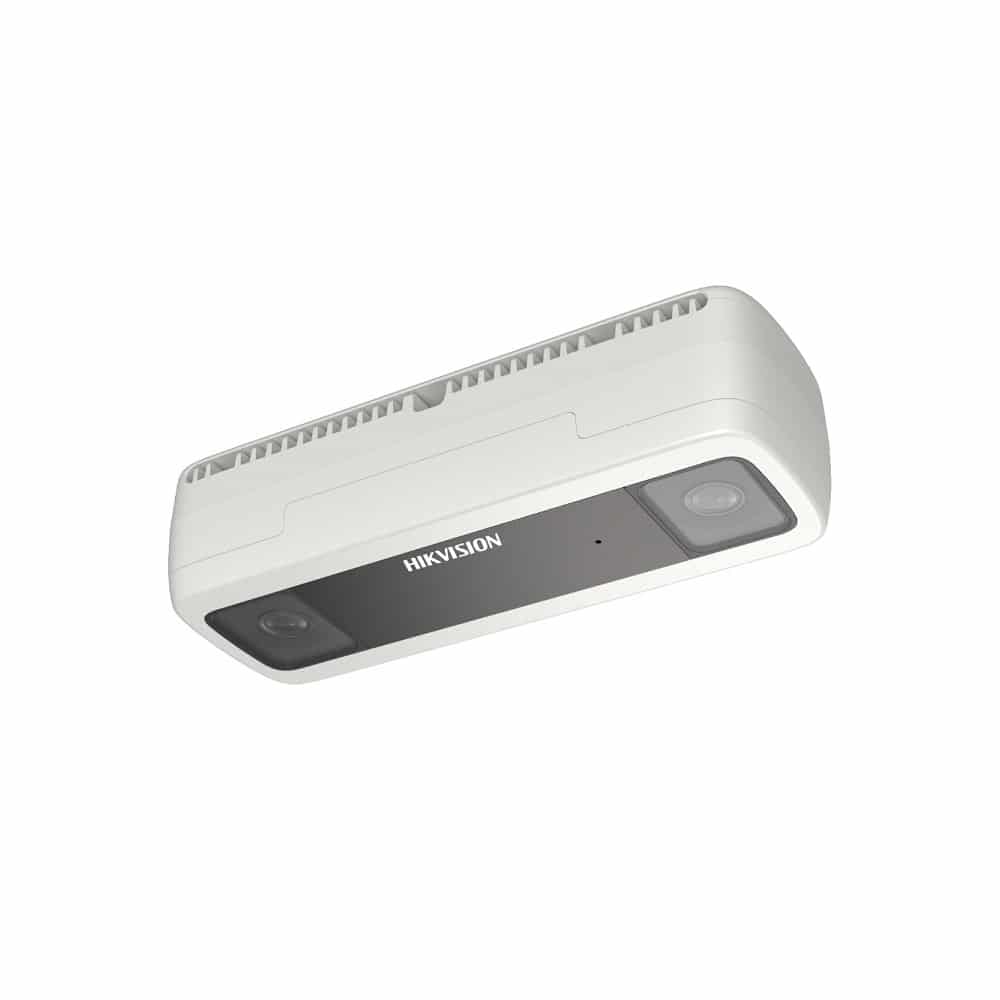

Hikvision DS-2CD6825G0/C-IVS Special Series 2MP Low-light IR (6m) Weatherproof Vandalproof Dual-Lens People-Counting Camera with 2mm Fixed Lens

Description

Hikvision DS-2CD6825G0/C-IVS Special Series 2MP Low-light IR (6m) Weatherproof Vandalproof Dual-Lens People-Counting Camera with 2mm Fixed Lens

Features :-

  • 1/2.7” Progressive Scan CMOS
  • Max. resolution 1920× 1080
  • 2mm fixed lens
  • Dual lens
  • Up to 6m IR distance
  • Built in microphone & alarm I/O
  • Vandalproof
  • 3D DNR
  • Supports tailgating detection
  • Visitor density monitoring solution
  • DC 12V/PoE (802.3af)

Camera

  • Image Sensor: 1/2.7ʺ Progressive Scan CMOS
  • Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON)
  • Shutter Speed: 1/25 s – 1/100,000 s
  • DNR: Digital WDR
  • Day & Night: IR Cut Filter

Lens

  • Aperture: F2.25
  • FOV: Horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
  • Lens Mount: M12
  • Focal Length: 2mm fixed lens

Audio

  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Audio I/O: 1 built-in mic -S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound

Smart Feature-Set

  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • People Counting: Counts people entering and exiting separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
  • Region Of Interest: 4 fixed regions for main stream and sub-stream
  • Linkage Method: Upload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture


  • Image Enhancement: HLC, BLC, 3D DNR, defog
  • Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm input (-S)
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image Settings: Saturation, brightness, contrast, sharpness are adjustable by client software or web browser
  • Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Max. Resolution: 1920 × 1080
  • Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 720)

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome (5.0)
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log
  • Simultaneous Live ViewUp to 20 channels
  • User/Host: Up to 32 users 3 levels: Administrator, Operator and User
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11

Interface

  • Communication Interface: 1 RJ45 10M/100M Ethernet port -S: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) -IVSM, -IVM/ND: M12 aviation plug, 4-core 10M/100M Ethernet port
  • Alarm (-S Model): 1 input, 1 output (max. 24 VDC, 1A)

Approval

  • EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
  • Safety: UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
  • Protection: With -V model: IP67 (IEC 60529-2013)

Compression Standard

  • H.264+: Main stream supports
  • H.265+: Main stream supports
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • H.265 Type: Main Profile
  • Video Bitrate: 32 Kbps to 16 Mbps
  • Audio Bitrate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • SVC: H.265 and H.264 support

IR

  • IR Range: Up to 6 m IR range
  • Wavelength: 850 nm

General

  • Firmware Version: 5.5.90
  • Web Client Language: 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function: Anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter
  • Storage Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply: 12VDC±20%, reverse polarity protection, Φ5.5mm coaxial power plug 12 VDC, PoE (36 to 57 VDC, 802.3af), Calss3
  • Material: Front cover: plastic, camera body: metal
  • Dimensions: With -V: 168 mm × 61 mm × 41 mm (6.6″ × 2.4″ × 1.6″ ) Without -V: 168 mm × 61 mm × 36 mm (6.6″ × 2.4″ × 1.4″) With Package: 235 mm × 120 mm × 125 mm (9.2″ × 4.7″ × 4.9″)
  • Weight: Camera: Approx. 435 g (1 lb.) With package: 725 g (1.6 lb)
  • Operating Conditions: -30 °C to +45 °C (-22 °F to +113 °F), Humidity 95% or less (non-condensing)
  • Power Consumption: 12VDC, 0.66 A, max. 8 W, PoE (802.3 af, 36 to 57 VDC), 0.23 A to 0.14 A, max. 8.3 W

Hikvision DS-2CD6825G0/C-IVS Data-sheet
