Hikvision DS-2FSCH30

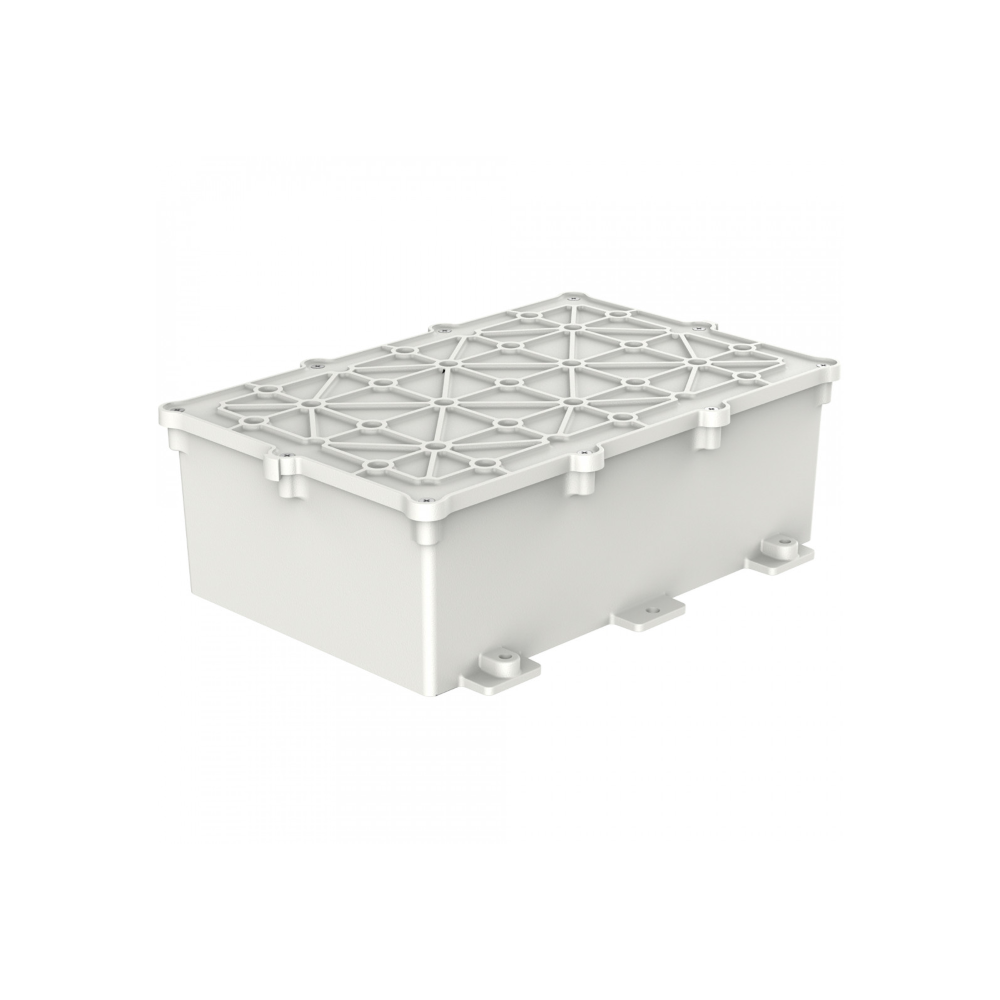

Hikvision DS-2FSCH30 30Ah Chargeable Lithium Battery – To Use with DS-2XS6A87G1-LC32S80 Solar Kit

SKU: DS-2FSCH30 Categories: , Tags: , , , ,

Hikvision DS-2FSCH30 30Ah Chargeable Lithium Battery – To Use with DS-2XS6A87G1-LC32S80 Solar Kit

Features :-

  • Battery Dimension: 236 × 154 × 80 mm (9.29″ × 6.06″ × 3.15″)
  • Battery Type Lithium Battery
  • Voltage 10.8V
  • Capacity 30Ah
  • Max. Charging Voltage 12.6V
  • Weight Approx. 3.3 kg (7.3 lb.)
  • Material Housing: Aluminum Alloy Protection IP68 (1.5 m, 72 h)
  • Heater Yes

Parameters

  • Weight: Approx. 3.3 kg (7.3 lb.)
  • Material: Housing: Aluminum Alloy
  • Dimension: Battery Dimension: 236 × 154 × 80 mm (9.29″ × 6.06″ × 3.15″); Package Dimension: 280 × 170 × 218 mm (11.02 × 6.69″ × 8.58″)”
  • Protection Level: IP68 (1.5 m, 72 h)
  • Operating Conditions: Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F); Discharging Condition: -20 °C to 60 °C (-4 °F to 140 °F)
  • Interface: 1 RS-485 (half duplex), Ø5.5 mm coaxial power plug, M8 aviation plug
  • Storage Conditions: -20 °C to 60 °C (-4 °F to 140 °F)
  • Battery Type: Lithium
  • Battery Voltage: 10.8 V
  • Capacity: 30 Ah
  • Max. Charging Voltage: 12.6 V
  • Battery Life: More than 500 cycles
  • Heater: Yes
  • Solar Power Controller: MPPT solar power controller; Fully charged voltage: 12.6 VDC; Max. output current: 8 A
