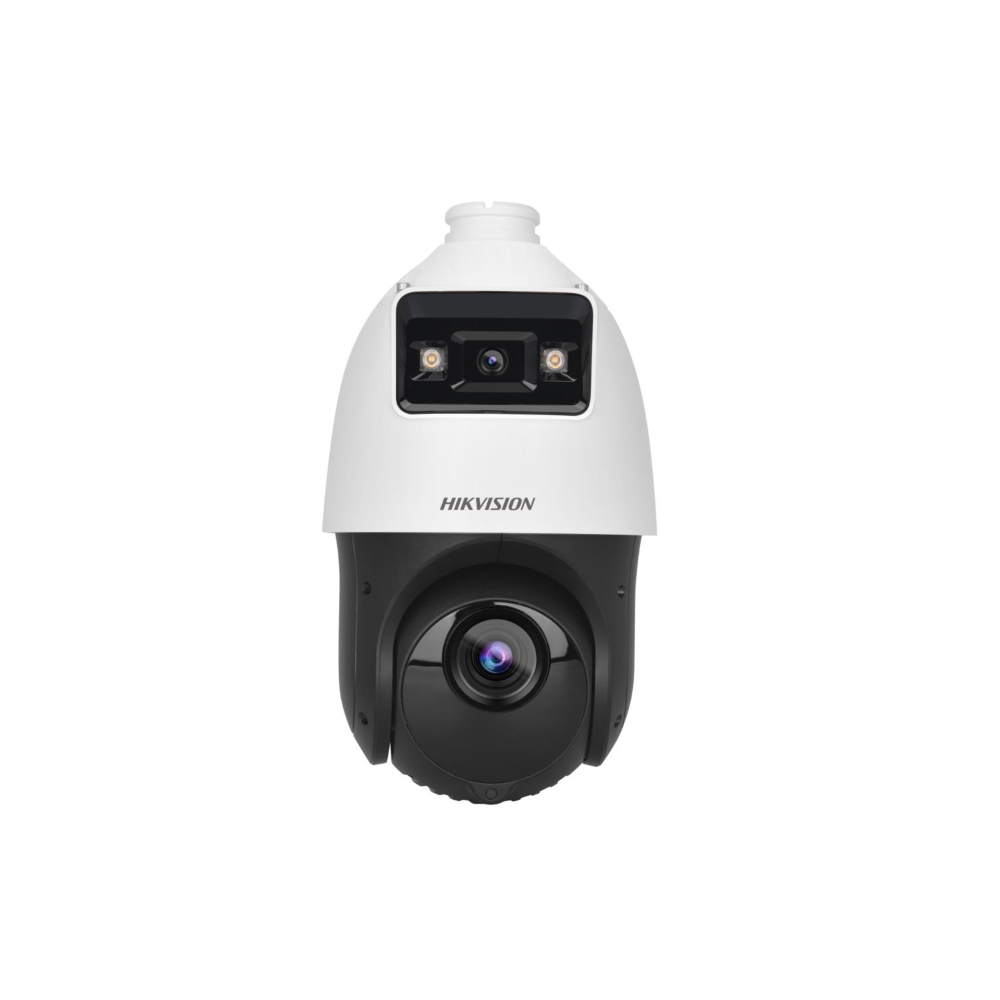

Hikvision DS-2SE4C425MWG-E14F0 H265 4MP PoE IP Dual-Lens (4MP 4MM Fixed Lens Channel + 4MP 25x Optical Zoom PTZ) Dual-Light (30m White-Light + 100m IR Light) Weatherproof TandemVu Camera – ColorVu + AcuSense Technology

Features :-

  • Captures a large area and great details at the same time
  • High quality imaging with 4MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
  • Secures an expansive area with 25× optical zoom and 16× digital zoom
  • Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
  • Expansive night view with up to 100m IR distance & 30m white light
  • Supports 12VDC & PoE+
  • Focuses on human and vehicle targets classification based on deep learning

Hikvision Product-Link -> DS-2SE4C425MWG-E14F0

Camera

  • Image Sensor: [Bullet channel]: 1/3″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
  • Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed: 1 s to 1/30,000 s
  • Slow Shutter: yes
  • Focus: semi-auto; manual; auto
  • Day & Night: ICR
  • Zoom [PTZ channel] 25 × optical, 16 × digital
  • Day/Night Switch: day, night, auto, scheduled-switch
  • White Balance: MWB; indoor; outdoor; fluorescent lamp; sodium lamp; ATW; auto; Locked WB
  • Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lens

  • Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
  • Zoom Speed: [PTZ channel]: approx. 3.6 s
  • FOV: [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°,Diagonal field of view: 113.3°; [PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6

Illuminator

  • Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
  • Smart Supplement Light: Yes
  • Supplement Light Range: [PTZ channel]: up to 100m; [Bullet channel]: up to 30m

PTZ

  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Zoom: yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Power-Off Memory: yes
  • Park Action: preset; patrol scan; pattern scan; auto scan; tilt scan; random scan; frame scan; panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Preset Freezing: yes
  • Scheduled Task: preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan; dome reboot; dome adjust; aux output
  • Exception Detection: IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot

Video

  • Region Of Interest (ROI): 8 fixed regions for each stream
  • Stream Type: main stream; sub-stream; third stream
  • Main Stream: [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: [Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: [Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: H.265; H.264; MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: baseline profile; main profile; high profile
  • H.265 Type: main profile
  • H.264+: yes
  • H.265+: yes
  • SVC: yes

Audio

  • Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
  • Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering: yes

Smart Features

  • Smart Record: ANR; Dual-VCA

Network

  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • Network Storage: NAS (NFS, SMB/ CIFS); ANR
  • Protocols: IPv4/IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTCP; RTP; TCP/IP; UDP; IGMP; ICMP; DHCP; PPPoE; Bonjour; WebSocket; WebSockets
  • Simultaneous Live View: 20
  • User/Host: 32
  • Security Measures: Authenticated username and password; MAC address binding; HTTPS encryption; 802.1X authenticated access; IP address filter
  • Client: iVMS-4200; Hik-Connect
  • Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+


  • Image Settings: sharpness, saturation, brightness, contrast
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Defog: Digital defog
  • Image Stabilization: EIS
  • Image Enhancement: BLC, HLC, 3D DNR
  • Regional Focus: Yes
  • Regional Exposure: Yes
  • Image Parameters Switch: Yes
  • Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Interface

  • Communication Interface: RJ45, self-adaptive 10M/100M Ethernet port
  • On-Board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
  • Alarm Input: 1 alarm input
  • Alarm Output: 1 alarm output
  • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output: 1 audio output, line level, impedance: 600 Ω

Event

  • Basic Event: [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
  • Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
  • Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

  • Face Capture: [Bullet channel] no, [PTZ channel] yes

General

  • General Function: mirror, password protection, watermark, IP address filter
  • Power: 12VDC, PoE+
  • Power Consumption And Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
  • Operating Conditions: -30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
  • Reset: yes
  • Demist: Demist by heating the glass
  • Material: ADC12
  • Dimensions: Ø 166 mm × 375 mm (Ø 6.5″ × 14.7″)
  • Weight: Approx. 2.4 kg (13.2 lb.)

Approval

  • Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
