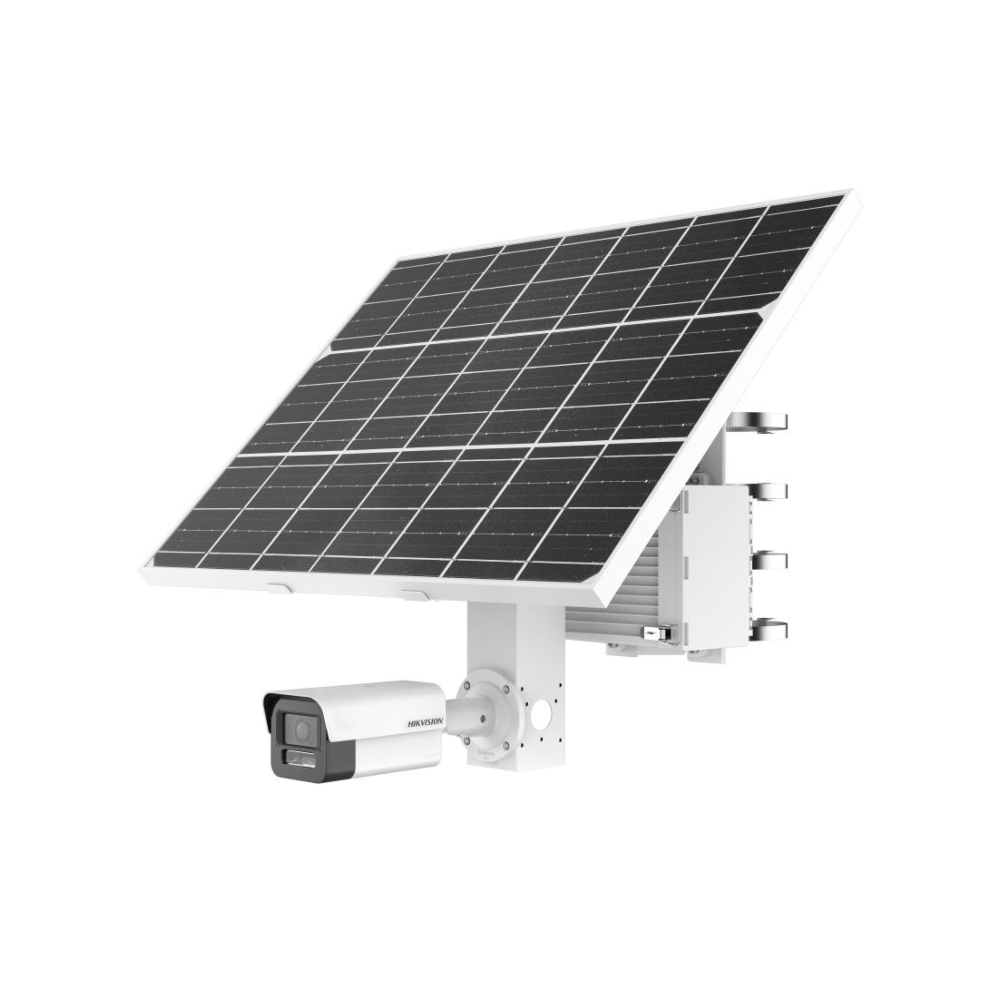

Hikvision DS-2XS6A46G1E-LIZS/C36S80(8-32mm) 4MP Strobe Light And Audible Warning Motorized Zoom (2.8~12mm) Bullet Solar Powered 4G Network Camera Complete Solar Kit - Camera with 2.8~12mm Motorized Zoom Lens

Hikvision Solar, Solar Security, Solar Surveillance

Hikvision DS-2XS6A46G1E-LIZS/C36S80(8-32mm)

Name: Hikvision DS-2XS6A46G1E-LIZS/C36S80(8-32mm)
SKU: DS-2XS6A46G1E-LIZS/C36S80(8-32mm)

Hikvision DS-2XS6A46G1E-LIZS/C36S80(8-32mm) 4MP Strobe Light And Audible Warning Motorized Zoom (2.8~12mm) Bullet Solar Powered 4G Network Camera Complete Solar Kit – Camera with 2.8~12mm Motorized Zoom Lens

Oversize & overweight item, will incur extra freight charges for special freight delivery.

SKU: DS-2XS6A46G1E-LIZS/C36S80(8-32mm) Categories: Hikvision Solar, Solar Security, Solar Surveillance Tags: 120dB True-WDR, 3G Camera, 4G Camera, 4MP, 4x Optical Zoom Lens, Active Deterrence, Battery-Powered, Camera, H265, Hikvision, IP Camera, IP66-Rated, IR, LTE, Network Camera, Solar, Solar Panel, Varifocal Motorized Zoom Lens

Adata 256GB Premier microSDXC UHS-I Class 10 Memory Card

Adata 256GB Premier microSDXC UHS-I Class 10 Micro-SD Memory Card - Up To 100MB / S Read Speed - Up To 10MB / S Write Speed

Temporarily unavailable
Hikvision HC-Timelapse/365Day/1CH/1Y

Hikvision HC-Timelapse/365Day/1CH/1Y Time-Lapse Recording, 365 Days, 1 Channel License For Hik-Connect Team Mode – 1 Year Subscription

Temporarily unavailable
ITPLUS 15GB-DATA-PLAN

ITPLUS 15GB-DATA-PLAN - Affordable Mobile Data for Business & Remote Connectivity - Nationwide New Zealand 4G/5G Coverage - 15GB Monthly Data Allowance at Full 4G/5G Speeds* - Unlimited Reduced-Speed Data After 15GB Usage.

Temporarily unavailable
ITPLUS UNLIMITED-DATA-PLAN

ITPLUS UNLIMITED-DATA-PLAN - Affordable Mobile Data for Business & Remote Connectivity - Nationwide New Zealand 4G/5G Coverage - Unlimited Monthly Data Allowance at Full 4G/5G Speeds*

Temporarily unavailable

This product is currently unavailable.

Key Features :-

80 W photovoltaic panel, 360 Wh chargeable lithium battery
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
Active strobe light and audio alarm to warn intruders off
Provides real-time security via built-in two-way audio
Smart Hybrid Light: advanced technology with long range
Water and dust resistant (IP66)
Built-in high-capacity eMMC storage
Supports external antenna expansion for more flexible antenna positioning and enhanced wireless signal quality
Recommendation -> For long-term surface protection, we recommend applying a natural lanolin-based protective coating, such as WD-40 Specialist Lanolin, after installation and as part of routine maintenance. This will help minimise rust and corrosion while extending the lifespan of the cabinet and mounting accessories.

Note * – Oversize overweight item, will incur extra freight charges

Hikvision Product-Link

Camera

Image Sensor: 1/1.8″ Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
Shutter Time: 1 s to 1/100,000 s

Lens

Focal Length & FOV: 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
Lens Type: Varifocal lens, motorized lens, 8 to 32 mm
Focus: Auto, Semi-auto, Manual
Iris Type: Auto-iris
Aperture: 8 to 32 mm: F1.7
Lens Mount: All In One Lens

Pixel Density

DORI: 8 to 32 mm:
- Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m
- Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Illuminator

Supplement Light Type: IR and White
Supplement Light Range: 8 to 32 mm: Up to 50 m
Smart Supplement Light: Yes

Video

Main Stream:
- - Performance mode:
    - - 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
      - 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

- - Proactive mode:
    - - 50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
      - 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
- - Performance mode:
    - - 50 Hz: 25 fps (640 × 480, 640 × 360)
      - 60 Hz: 30 fps (640 × 480, 640 × 360)

- - Proactive mode:
    - - 50 Hz: 12.5 fps (640 × 480, 640 × 360)
      - 60 Hz: 15 fps (640 × 480, 640 × 360)

Third Stream:
- - Performance mode/Proactive mode:
    - - 50 Hz: 1 fps (1280 × 720, 640 × 480)
      - 60 Hz: 1 fps (1280 × 720, 640 × 480)
Video Compression: Main stream: H.264/H.265; Sub-stream: H.264/H.265/MJPEG; Third Stream: H.265/H.264
*Performance mode: main stream supports H.264+, H.265+
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering: Yes

Network

Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
Protocols: RTSP, DDNS, RTP, ICMP, QoS, IGMP, SNMP, SFTP, DNS, Bonjour, SMTP, IPv4, UDP, NTP, FTP, SSL/TLS, IPv6, HTTPS, HTTP, WebSocket, DHCP, WebSockets, TCP/IP
User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption,watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
Network Storage: Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: Hik-Connect (proactive mode also supports), HikCentral Professional, iVMS-4200
Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication

SIM Card Type: MicroSIM
Frequency:
- DS-2XS6A46G1E-LIZS/C36S80:
  - LTE-TDD: Band38/40/41
  - LTE-FDD: Band1/3/5/7/8/20/28
  - WCDMA: Band1/5/8
  - GSM: 850/900/1800 MHz

- Standard: DS-2XS6A46G1E-LIZS/C36S80: LTE-TDD/LTE-FDD/WCDMA/GSM


Wide Dynamic Range (WDR): 120 dB
Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
Image Enhancement: HLC, BLC, 3D DNR
Image Parameters Switch: Yes
Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
SNR≥ 52 dB
Privacy Mask: 4 programmable rectangle privacy masks

Interface

Built-in Microphone: Yes
Built-in Speaker: 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB.
Alarm: 1 input, 1 output (max. 12 VDC, 1 A)
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, Built-in eMMC storage, up to 256 GB
RS-485: 1* RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key: Yes
Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
Power Output: 12 VDC, max. 1000 mA

Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, alarm input and output
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Linkage: Upload to FTP/NAS/memory card, trigger alarm output, audible warning, trigger recording, notify surveillance center, send email, white light flashing

Deep Learning Function

Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Support alarm triggered by specified target types (human and vehicle)

General

Power:
- 12 VDC ± 10%
  - 1. Standby power consumption: 0.14W
  - 2. The average power consumption of 24 hours (4G transmission is excluded): 2.96 W
  - 3. The max. power consumption: 20 W (7 W if without 12 V load)
Material:
- Battery:
  - Front cover: metal, Battery body: plastic
  - Camera: Front cover: metal, body: plastic,
  - Bracket: metal
Dimension: 662.11 mm × 720 mm × 579.76 mm (26.07″ × 28″ × 22.83″) (Max. size of the camera after it is completely assembled)
Package Dimension: 834 mm × 414 mm × 702 mm (32.9″ × 16.3″ × 27.6″)
Approx. 13.045 kg (28.76 lb.)
With Package Weight: Approx. 21.82 kg (48.10 lb.)
Storage Conditions: -25 °C to 60 °C (-13 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -25 °C to 60 °C (-13 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Flashing Light: Red and Blue Light

Battery

Battery Type: Lithium
Capacity: 360 Wh (90 Wh for each battery)
Battery Voltage: 10.8 V
Max. Output Voltage: 12.6 V
Operating Temperature:
- Charging: -25 °C to 45 °C (-13 °F to 113 °F)
- Discharging: -25 °C to 60 °C (-13 °F to 140 °F)
Battery Life: More than 500 cycles
Cycle Lifetime:
- Proactive mode: 5 days, Standby mode: 80 days
- *in cloudy/rainy days (25 °C)
Battery Weight: Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Approval

EMC: CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
RF: CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133); ICASA: same as CE-RED; IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5); MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
Safety: CB (IEC 62368-1:2014+A11); CE-LVD/UKCA (EN 62368-1:2014/A11:2017); LOA (IEC/EN 60950-1)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: Camera: IP66 (IEC 60529-2013); Wind resistance 12 level, up to 40 m/s wind speed resistance
