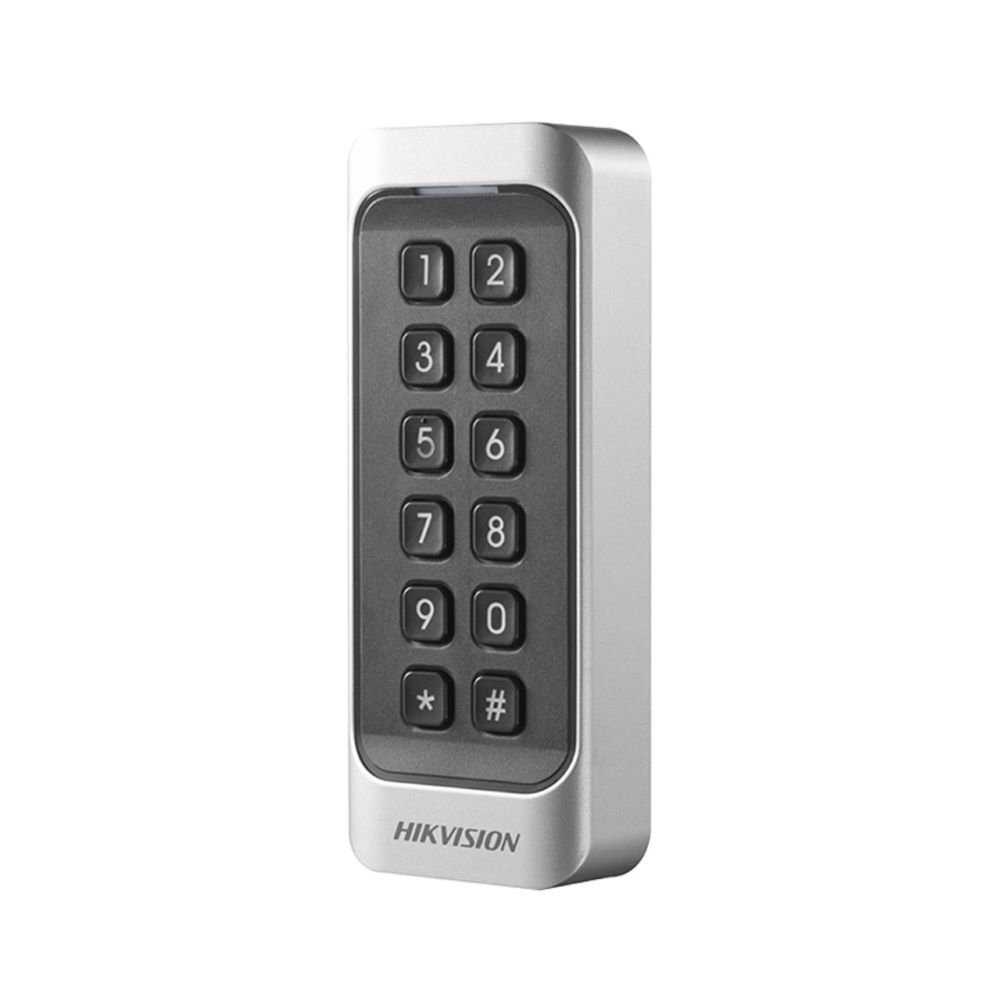

Hikvision DS-K1107AMK

Hikvision DS-K1107AMK Pro-Series Weatherproof Access Control Reader with Built-in 13.56MHz MiFare Card-Reader & Keypad – Supports RS-485 / Wiegand Output

Hikvision DS-K1107AMK Pro-Series Weatherproof Access Control Reader with Built-in 13.56MHz MiFare Card-Reader & Keypad – Supports RS-485 / Wiegand Output

Features :-

  • Equipped with the 32-bit high-speed processor
  • RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
  • Build-in Mifare card reading module (Frequency: 13.56 MHz)
  • Supports tampering alarm
  • Built-in buzzer for identifying the reading status
  • Online upgrade function
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
  • IP65

System

  • Processor: 32-bit

Interface

  • TAMPER: support
  • RS-485: support
  • Wiegand: support (set via DIP switch)

Authentication

  • Card Reading Frequency: 13.56MHz
  • Card Reading Distance: ≤50mm (≤1.97″)

Function

  • ID Settings: via DIP Switch

General

  • Indicator: Power Indicator, Status Indicator
  • Power Supply: 12V DC
  • Power Consumption: ≤2W
  • Working Temperature: -20°C to +65°C (-4°F to 149°F)
  • Working Humidity: 10% to 90% (Non Condensing)
  • Protective Level: IP65
  • Dimensions: 115mm × 44mm × 22mm (4.53” × 1.73” × 0.87”)
  • Installation: Wall Mounting with Screws; Do Not Support Gang Box
  • Keypad: Keypad with 12 Keys (0~9, *, #)
  • Buzzer: support
