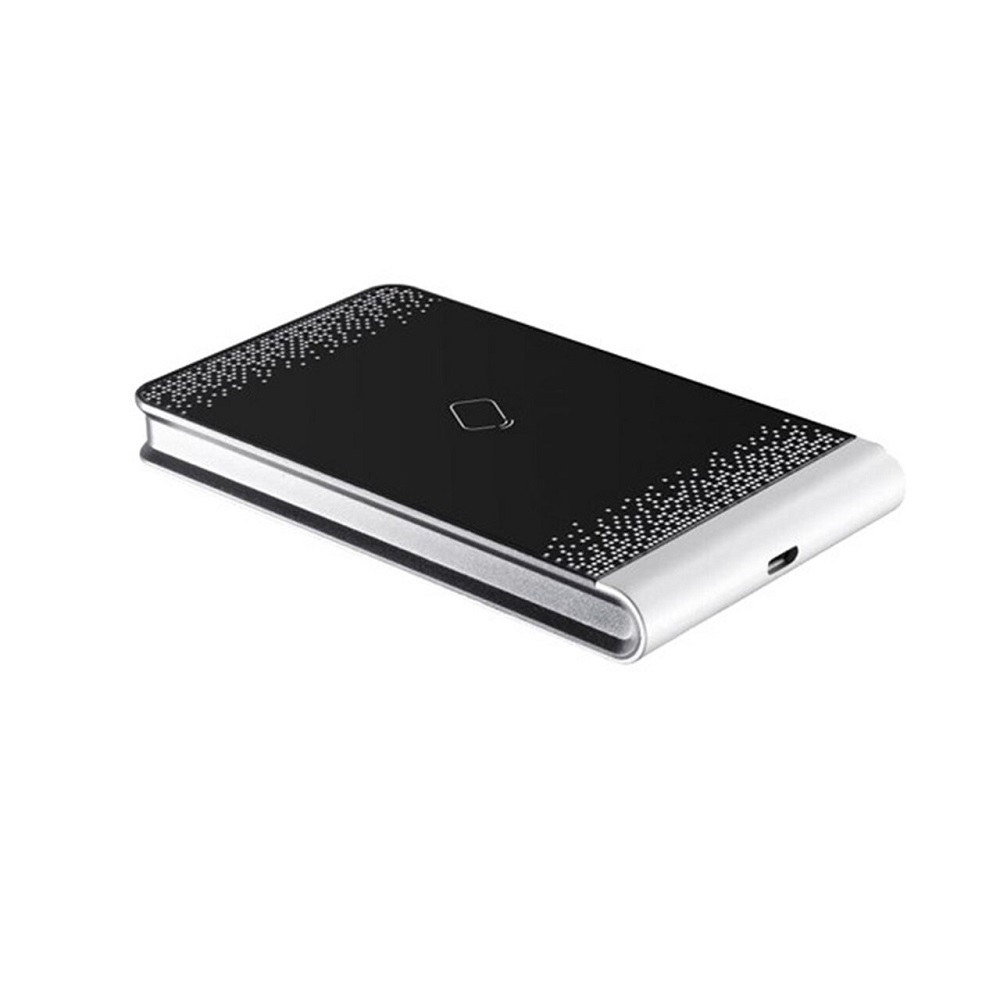

Hikvision DS-K1F100-D8E USB Card Enrollment Station – Used for Access Control – Plug-and-play USB Interface – Supports Mifare, CPU, PSAM, ID, and EM Cards

Availability: Available on backorder SKU: DS-K1F100-D8E Categories: , Tag:
Add to quote
Add to wishlist

Description

Hikvision DS-K1F100-D8E USB Card Enrollment Station – Used for Access Control – Plug-and-play USB Interface – Supports Mifare, CPU, PSAM, ID, and EM Cards.

Features :-

  • Plug-and-play USB with no-driver technology
  • 2 PSAM cassettes (standard configuration), same size with 2 SIM cards in total
  • Supports on-line upgrade
  • Supports various card types (Mifare card, CPU, PSAM, ID card, and EM card) with the card reading frequency 13.56 MHz and 125 KHz
  • Well-defined API
  • Adopt high-level encryption algorithm to ensure the security for data communication
  • Provides general interface library supporting various operation systems and language development platform
  • Supports online upgrading and updating
  • Works with iVMS-4200 AC Client software

General

  • Working Temperature: From -20°C to 65°C (4° F to 149° F)
  • Working Current: 200mA
  • System: Support Windows, WinXP, Windows 7 and Windows 8
  • Card Reading Frequency: 13.56MHz and 125KHz
  • Card Type: Standard IC Card, CPU Card, and ID (EM) Card
  • PSAM Card Cassettes: 2 PSAM Cassettes
  • Protocol: ISO 14443 Type A/B Standard and ISO 7816 Standard
  • Interface: USB 2.0; Driver Free
  • LED Light: LED Indicator: Indicates Power and the Communication Status
  • Dimension (L*W*H): 117mm×67.5mm×14.3mm
  • Weight: 87.6g
DS-K1F100-D8E

Hikvision DS-K1F100-D8E Data-sheet

Download File

Hikvision Access Control How To

Download File

Hikvision Access Control Brochure

Download File

Hikvision iVMS-4200AC Software Download

Download File

Hikvision iVMS-4200AC Software User Manual

Download File

Hik-Connect from Hikvision App Store

Download File
