Hikvision DS-K1F820-F

Please login for price

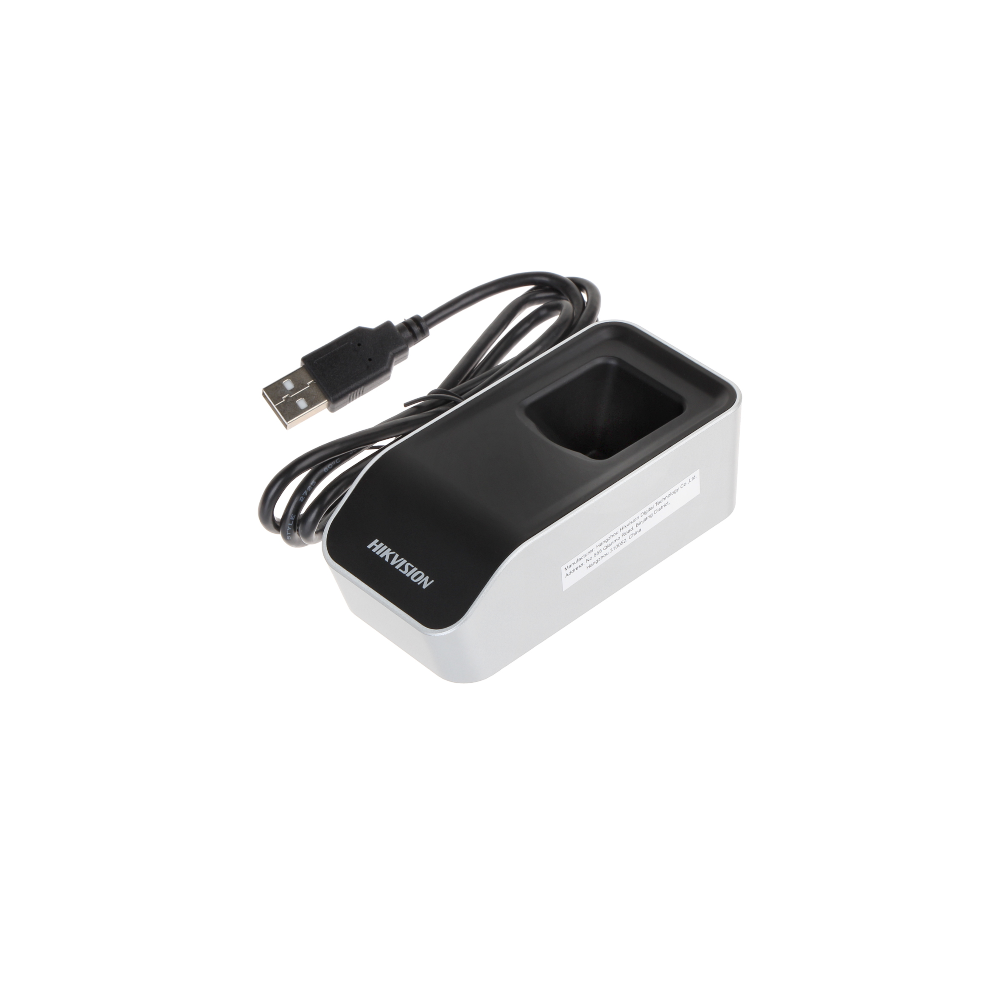

Hikvision DS-K1F820-F USB Optical Fingerprint Enrollment Scanner – To be used with iVMS-4200 AC Client Software for Hikvision Access-Control Fingerprint Enrollment

SKU: DS-K1F820-F Categories: , Tags: ,

Description

Hikvision DS-K1F820-F USB Optical Fingerprint Enrollment Scanner – To be used with iVMS-4200 AC Client Software for Hikvision Access-Control Fingerprint Enrollment

Features :-

  • 508 dpi high-definition
  • Supports the function of PnP (plug and play)
  • Optical fingerprint sensor designed with scratch-resistant material
  • Applies to Windows XP, Windows 7, and Windows 10 operation system
  • Supports configuration and operation via client software
  • USB 2.0 communication standard for data transmission
  • Power over USB
  • Composite fingerprint images from triple collection

General

  • Fingerprint Reader: Optical, Red Backlight
  • Resolution: 508 dpi
  • Fingerprint Template Size: 256 × 288 (pixel)
  • Communication Interface: USB 2.0
  • Operating Voltage: 5 VDC, 200mA
  • Working Temperature: -30°C to +70°C (-22°F to 158°F)
  • Working Humidity: 20% to 80%
  • Operation System: Windows XP, Windows 7, and Windows 10
  • Dimension (L*W*H): 100mm × 48mm × 35mm (3.9” × 1.9” × 1.4”)
  • CPU: 32bit MCU
