Hikvision DS-K1T331W

Please login for price

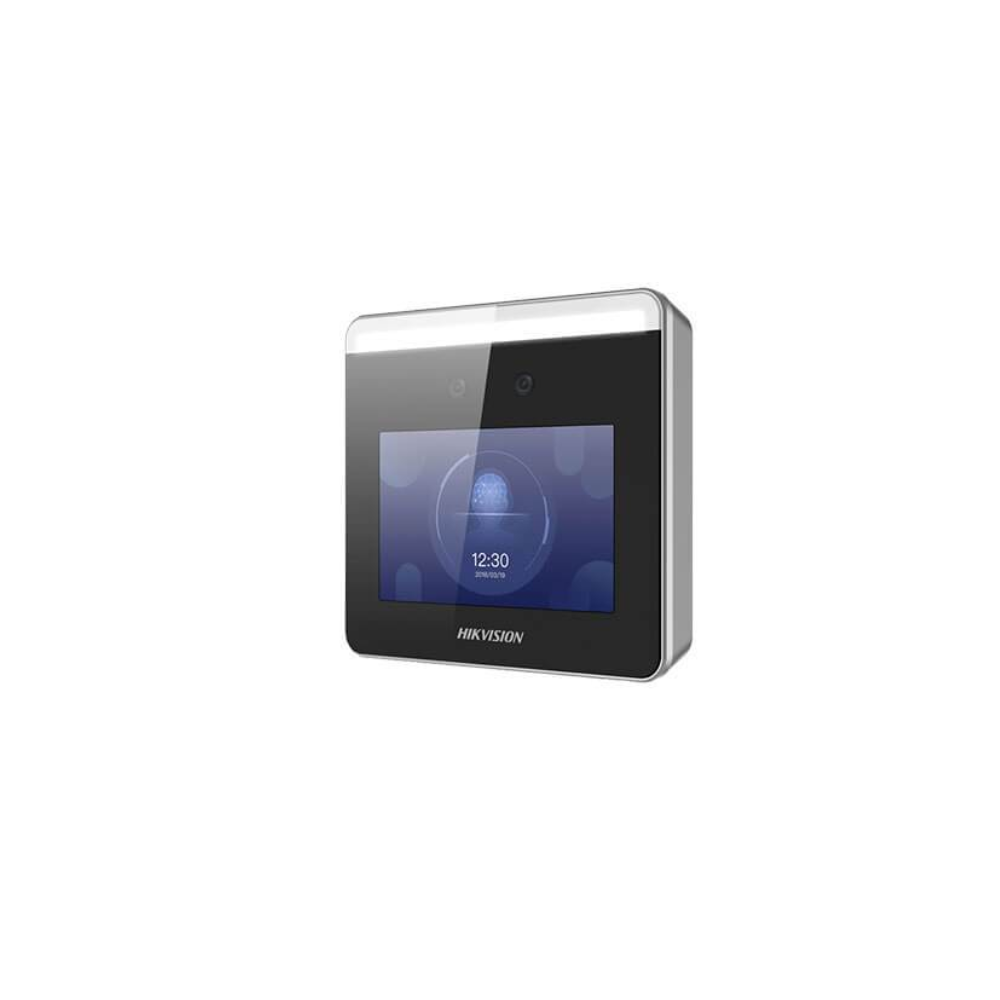

Hikvision DS-K1T331W Value-series Standalone IP Wireless MinMoe Series Touch-Free Face Recognition Access Control Terminal – For Indoor Use Only

Description

Hikvision DS-K1T331W Value-series Standalone IP Wireless MinMoe Series Touch-Free Face Recognition Access Control Terminal – For Indoor Use Only

Features :-

  • 3.97″ touchscreen
  • 2MP wide-angle dual-lens
  • Face anti-spoofing
  • Face recognition distance: 0.3m to 1.5m
  • Deep learning algorithm
  • 300 face capacity, 1,500 card capacity (when connecting external card reader); 150,000 event capacity, and up to 20,000 captured pictures storage
  • Face recognition duration < 0.2 seconds / user; face recognition accuracy rate ≥ 99%
  • Capture linkage and captured pictures storage
  • Transmits card & user data from or to the client software via TCP/IP protocol and saves the data on the client software
  • Imports pictures from the USB flash drive to the device or export pictures, events, from the device to the USB flash drive
  • Stand-alone operation
  • Manage, search and set device data after logging in the device locally
  • Connects to one external card reader via RS-485 protocol
  • Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed

System Parameters

  • Operation System = Linux
  • Camera = 2MP dual-lens camera with wide dynamic range
  • Capacity = 1,500
  • 1:N Face Recognition Duration < 0.2 s
  • Face Picture Capacity = 300
  • Event Capacity = 150,000

General

  • Power Supply = 12 V, 1.5 A, 18 W
  • Working Temperature = -10 °C to +50 °C (14 °F to +122 °F)
  • Working Humidity = 10 to 90% (no condensing)
  • Application Situation = Indoor use
  • Dimension (L × W × H)120 mm × 110 mm × 23 mm (4.7″ × 4.3″ × 0.9″)
  • Communication Mode = TCP/IP

General

  • Card Capacity = 1,500
  • Face Recognition Distance = 0.3 m to 1.5 m
  • Interface = USB × 1, electric lock × 1, door contact × 1, tamper × 1, exit button × 1, RS-485 × 1
