Hikvision DS-K2210

Please login for price

Hikvision DS-K2210 IP Master Lift / Elevator Controller – DIN RAIL – Supports IP, RS-485 & Wiegand Connectivity

Availability: Available on backorder SKU: DS-K2210 Categories: , Tags: , , ,

Description

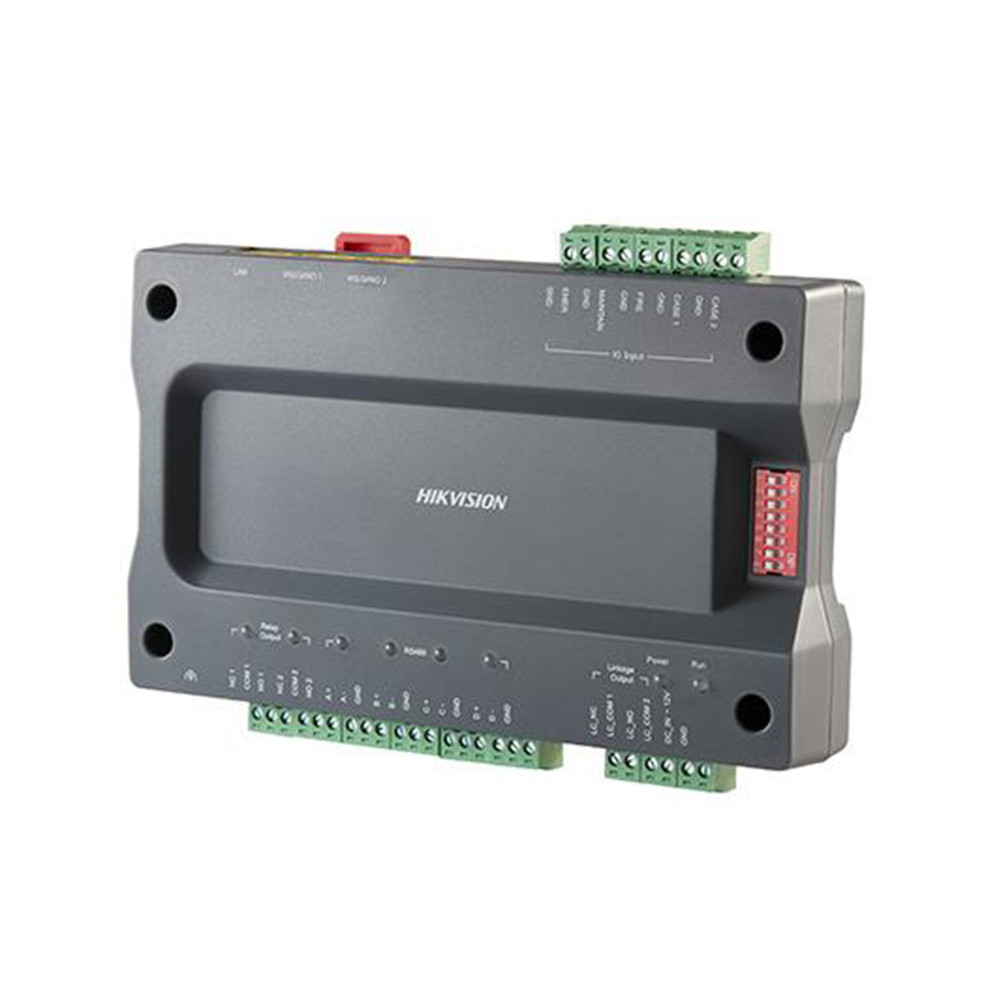

Hikvision DS-K2210 IP Master Lift / Elevator Controller – DIN RAIL – Supports IP, RS-485 & Wiegand Connectivity

Features :-

  • Model: DS-K2210 Master Elevator Controller
  • Processor: 32 bit
  • Communication: TCP/IP; RS-485 and Wiegand
  • Normal Card/Event: 20,000 Cards and 50,000 Events
  • Card Reader: Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers
  • Input Interface: 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
  • Output Interface: 5 Relay Outputs
  • RTC: Support
  • Power Supply: 12VDC ± 15%
  • Working Temperature: -40°F to 158°F
  • Working Humidity: 0% to 90% (No Condensation)
  • Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm
  • Installation Type: Guide Rail Installation
  • Connectable with up to 3 groups of distributed elevator controllers (DS-K2M0016A); Each group is connectable with up to 8 distributed elevator controllers (DS-K2M0016A)
  • Supports 3 types of relays: Button, Call Elevator and Auto Button
  • Up to 128 floors’ permissions can be controlled
  • Supports adding 20,000 normal cards and saving 50,000 events
  • Supports uploading events, saving offline events
  • Save the data when powering off
  • Get the floor No. through permission management to control the corresponding relays
  • Supports up to 256 schedule template. Each schedule template supports up to 1 week plan and 4 holiday groups
  • Supports 5 input terminals and 5 output terminals
  • Event input and output
  • Multiple authentication modes: Card, Fingerprint, Card and Fingerprint, Card and Password, Employee ID and Password, Super Password and Duress Code.
  • Remote control via the web client and the iVMS-4200 client software
  • Supports NTP time synchronization, manually time synchronization, auto time synchronization.
  • Watchdog and Tamper-proof function

Device Interface

  • Communication: TCP/IP;RS-485, and Wiegand
  • Input Interface: 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
  • Output Interface: 5 Relay Outputs
  • Internal Clock: Support
  • RTC: Support

General

  • Working Temperature: -40°F to 158°F
  • Working Humidity: 0% to 90% (No Condensation)
  • Power Supply: 12 VDC±15%
  • Installation: Guide Rail Installation
  • Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm

System Parameter

  • Processor: 32 bit
  • Indicator: Power On: Solid Green,Running Properly: Flashing Green,Running Exception: Solid Red,Serial Port Not Communicating: Off,Serial Port Communicating: Solid Green,Relay NC: Off,Relay NO: Solid Green,Network Disconnected: Off,Network Cable Connected: Solid Yellow, Flashing Green,Network Armed: Solid Yellow, Flashing Green,
  • Card Reader: Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers
