Hikvision DS-K2M0016A

Please login for price

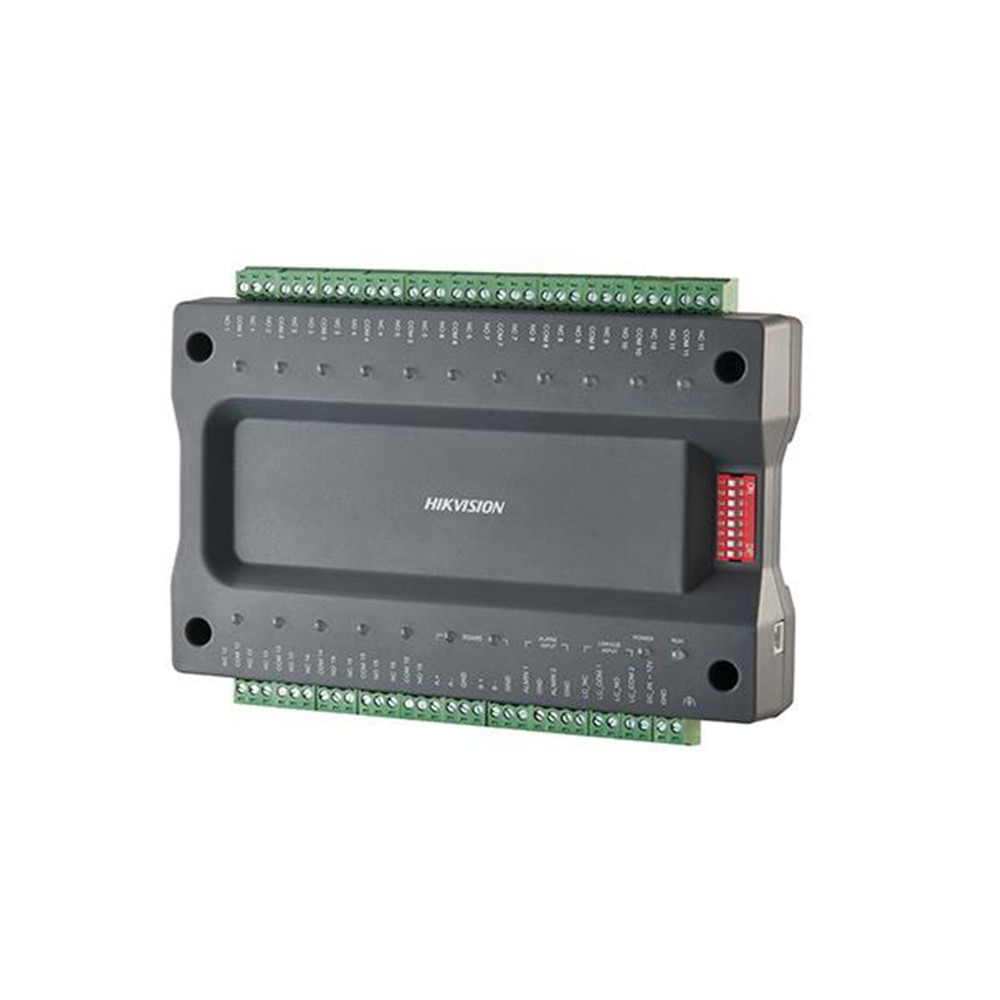

Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS-K2210 Master Controller – 2 x RS-485, 2 x Alarm Inputs, 16 x Relay Outputs, 1 x Buzzer, DC12V

Availability: Available on backorder SKU: DS-K2M0016A Categories: , Tags: , ,

Description

Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS-K2210 Master Controller – 2 x RS-485, 2 x Alarm Inputs, 16 x Relay Outputs, 1 x Buzzer, DC12V

Features :-

  • Model – DS-K2M0016A
  • Distributed elevator controller
  • Connectable with up to 16 relays to control floor buttons in the elevator
  • RS-485 communication with the master elevator controller
  • DIP switch settings for device address and relay types
  • Up to 8 distributed elevator controllers can be linked to the master elevator controller
  • Control the elevator via the relay
  • 2 x RS-485 Interface
  • 2 x Alarm Input
  • 16 x Relay Outputs
  • 1 x Buzzer
  • Working Temperature: -40°F to 158°F
  • Working Humidity: 0% to 90% (No Condensation)
  • Power Supply: 12VDC ± 15%
  • Guide Rail Installation
  • Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm
  • 32 bit Processor

Device Interface

  • RS-485 Interface: 2
  • Alarm Input: 2
  • Relay Output: 16
  • Buzzer: 1

General

  • Working Temperature: -40°F to 158°F
  • Working Humidity: 0% to 90% (No Condensation)
  • Power Supply: 12 VDC±15%
  • Installation: Guide Rail Installation
  • Tamper-Proof: 1
  • Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm

System Parameter

  • Processor: 32 bit
