Hikvision DS-KD-IN

Please login for price

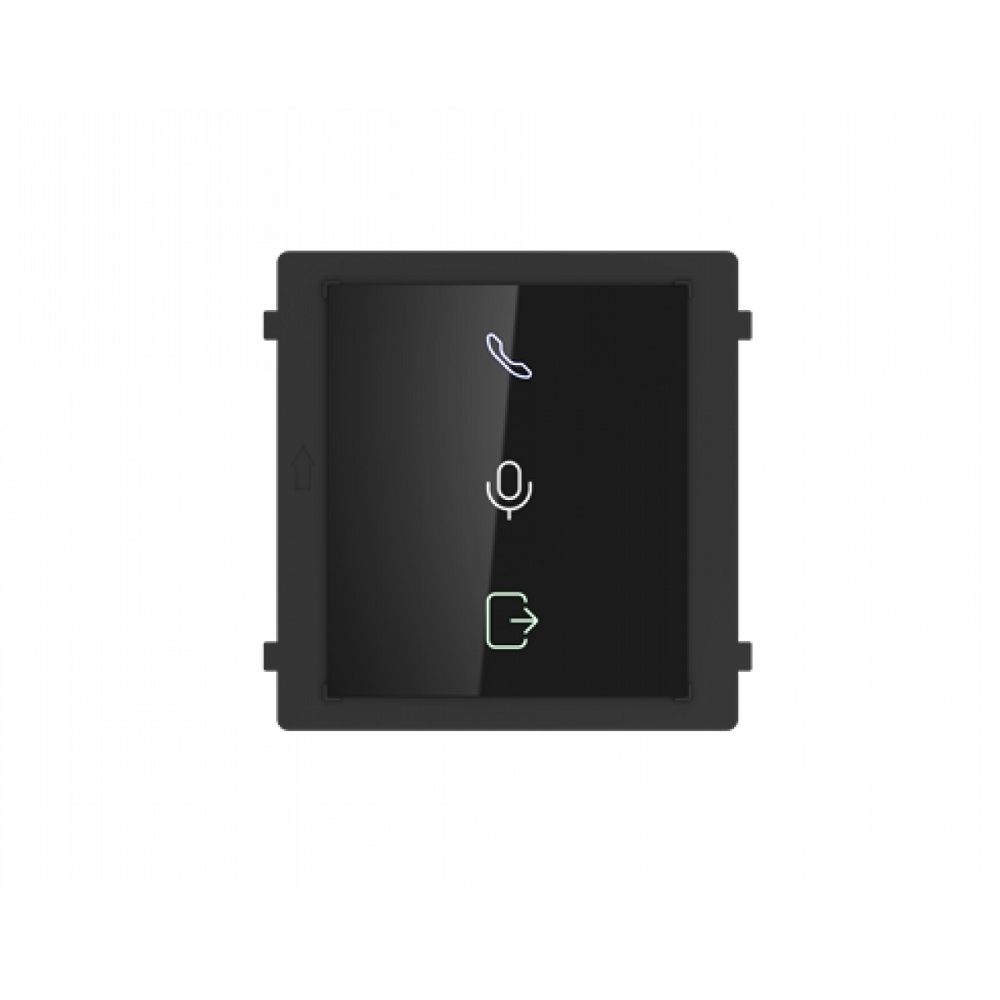

Hikvision DS-KD-IN IP Video Intercom Display / Indicator Module

Description

Hikvision DS-KD-IN IP Video Intercom Display / Indicator Module

Features :-

  • Indicator module
  • Module connection with RS-485
  • IP65
  • Flush mounting
  • Surface mounting
  • 98.21mm x 100.21 mm x 33.7mm
  • Powered by other module (Power input: 12VDC, Power output: 12VDC)
  • Indicates the device status: calling, opening door and two-way audio
  • Backlight compensation
  • Easy to and extend

System Parameters

  • Processor: Embedded MCU Processor

General

  • Power Supply: 12 VDC (powered by the other module)
  • Power Consumption: ≤ 2 W
  • Working Temperature: -40° C to +55° C(-40° F to 131° F)
  • Working Humidity: 10% to 95%
  • Output Power: 12 VDC (powered for the other module)
  • Weight: 326 g (with packaging) 165 g (without packaging)
  • IP Protection Level: IP65
  • Dimensions: 98.5 mm × 100 mm × 33.7 mm (3.87″ × 3.95″ × 1.33″)
  • Installation: Flush mounting, surface mounting

Device Interfaces

  • Module Connecting: 2 (1 input, 1 output)
  • Debug: 1

Hikvision Intercom Designer Tool -> Hikvision Intercom Design Tool

Hikvision DS-KD-IN Data-sheet

Hikvision 2nd Gen IP Intercom Brochure
