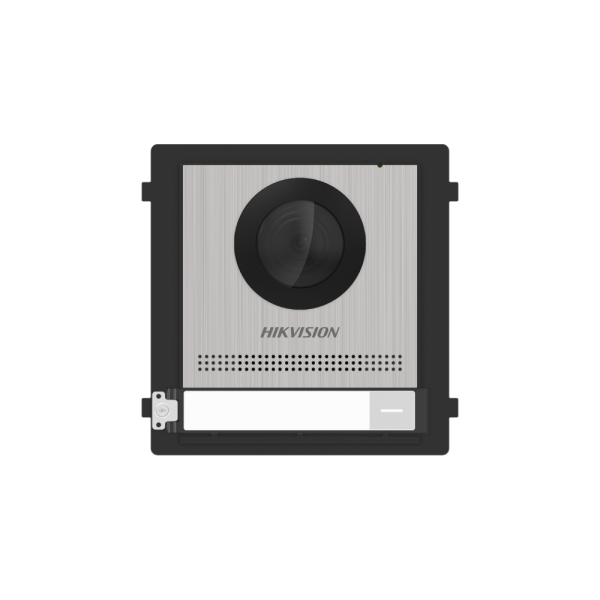

Hikvision DS-KD8003-IME1/S

Hikvision DS-KD8003-IME1/S 2MP 1080P Stainless Steel PoE IP Video Intercom Camera Module – 1x Call Buton – 2x Lock Relays – IP65 Rated

  • Hikvision DS-KD-ACW1/S

    Hikvision DS-KD-ACW1/S Stainless Steel Gen 2 IP Intercom Door Station Housing Frame - Surface Mount - Supports 1 Module

This product is currently unavailable.

Hikvision DS-KD8003-IME1/S 2MP 1080P Stainless Steel PoE IP Video Intercom Camera Module – 1x Call Buton – 2x Lock Relays – IP65 Rated

Features:-

  • CMOS 2MP HD colorful camera
  • Fisheye 180° wide-angle field of view
  • 1 Call Button
  • 1-ch Indoor station access
  • 2 relays for door lock control
  • IR Supplement
  • 10/100Mbps Self-adaptive Ethernet
  • module connection with RS-485
  • 4-ch alarm input
  • IP65
  • 12VDC or standard POE
  • Provides video intercom and access control functionality
  • Embedded MCU processor and Linux OS
  • Image enhancements include backlight compensation, digital noise reduction, and wide dynamic range
  • Noise suppression and echo cancellation for clear sound
  • H.264 video compression
  • Tampering alarm
  • Supports sub-module access (eight maximum)
  • ONVIF compliant
  • Dimensions: 98 x 99.8 x 43.9 mm
  • FCC, CE, and cUL certified
  • Hikvision Intercom Online Designer Tool

Hikvision Product-Link -> DS-KD8003-IME1(B)/S



System Parameters

  • Operating System: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 256 MB
  • CPU: Embedded Processor

Display Parameters

  • Screen Size: NA
  • Operation Method: NA
  • Type: NA
  • Resolution: NA

Video Parameters

  • Supplement Light: Low illumination, IR supplement lights
  • Video Standard: H.264
  • Lens: 1
  • FOV: Horizontal: 146°, Vertical: 82°
  • WDR: Support
  • Resolution: 2MP

Audio Parameters

  • Audio Input: Built-in omnidirectional microphone
  • Audio Compression StandardG.711 U, G.711 A
  • Audio Output: Built-in loudspeaker
  • Audio Compression Bitrate: 64 Kbps
  • Audio Quality: Noise suppression and echo cancellation
  • Volume Adjustment: Adjustable

Capacity

  • Fingerprint Capacity: /
  • User Capacity: 2000
  • Card Capacity: 6000
  • Face Capacity: NA
  • Linked Indoor Station Capacity: 500
  • Event Capacity: /
  • Sub Door Station Capacity: 16

Network Parameters

  • Communication Protocol: TCP/IP, RTSP
  • Wired Network: 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi: NA
  • Bluetooth: NA
  • 3G/4G: NA

Device Interfaces

  • Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
  • Network Interface: 1 RJ45
  • TAMPER: 1
  • Exit Button: 2 (2 for lock control)
  • Door Contact Input: 1
  • RS-485: 1 (1 for Hikvision’s sub module communication)
  • Wiegand: NA
  • TF Card: NA
  • Alarm Output: NA
  • Lock Control: 2 (2 relay, max to 30 V, 2 A)
  • USB: NA
  • Power Interface: 12 VDC power output (max to 12 V, 500 mA)
  • Two-Wire IP Interface: NA

General

  • Power Supply: 12 VDC/PoE ( IEEE 802.3af)
  • Working Temperature: -40° C to 60° C (-40° F to 140° F)
  • Working Humidity: 10% to 95%
  • Button: 1
  • Protective Level: IP65
  • Installation: Surface mounting & flush mounting
  • Dimensions (L × W × H): 98 mm × 100 mm × 42 mm (3.86″ × 3.94″ × 1.65″)
  • Language: English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
  • Indicator: 0
  • Without package: 0.410 kg
  • With Package: 0.581 kg
  • Battery: /
  • Application Environment: Outdoor
  • Power Consumption: ≤ 5 W
