Hikvision DS-KH7300EY-WTPE2/White

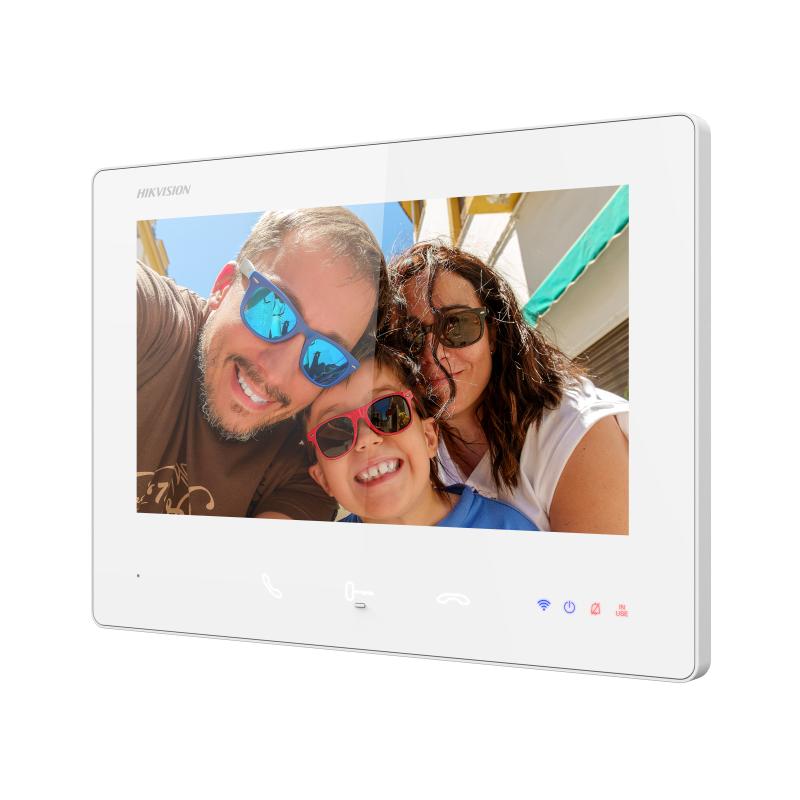

Hikvision DS-KH7300EY-WTPE2/White 2-Wire HD Series 7″ Indoor TFT Touchscreen Intercom Monitor – 1024 x 600 Pixels Resolution – Built-in WiFi – Supports Hik-Connect App
SKU: DS-KH7300EY-WTPE2/White
Categories: Hikvision 2-Wire HD Video Intercoms, Hikvision 2-Wire Video Intercoms, Hikvision Video Intercoms, Intercoms
Tags: 2-Wire, 7 inch, Hikvision, Indoor, Monitor, Touchscreen, Video Intercom, WiFi
Hikvision DS-KH7300EY-WTPE2/White 2-Wire HD Series 7″ Indoor TFT Touchscreen Intercom Monitor – 1024 x 600 Pixels Resolution – Built-in WiFi – Supports Hik-Connect App
Key Features :-
- Excellent Product Design：7-inch touch screen with 1024*600 high resolution
- Excellent Product Design: 3 touch buttons, physically challenged friendly
- Easy to Use: Rotary Switch configuration
- Easy to Use: Plug & play, support different connection topologies
- Easy to Use: Supports Hik-Connect App
- Easy to Use: Multiple indicators–Wi-Fi, power, mute, in use
- Easy to Use: Max. 4 custom virtual buttons
- View live view of door stations
- Support Professional Studio / Trade button function (Open doors automatically)
- Support Floor Call
System parameters
- Operating system: Embedded Linux operation system
- ROM: 32 MB
- RAM: 128 MB
- CPU: Embedded processor
Display parameters
- Screen size: 7-inch
- Operation method: Capacitive touch screen
- Type: Colorful TFT screen
- Resolution: 1024 × 600
Video parameters
- Lens: /
- FOV: /
- WDR: /
- Resolution: /
- Focal length: /
Audio parameters
- Audio compression standard: G.711 U G.711 A
- Audio input: 1 Built-in omnidirectional microphone
- Audio output: 1 Built-in loudspeaker
- Audio compression bitrate: 64 Kps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
Capacity
- Event capacity: 200 captured pictures (with TF card)
- Linked indoor extensions capacity: 3
Network parameters
- Communication protocol: TCP/IP, RTSP
- Wi-Fi standard: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- 3G/4G standard: /
- Zigbee: /
Device interfaces
- Alarm input: 1
- TAMPER: /
- RS-485: /
- USB: /
- TF card: Max to 128 G, SD 2.0 or lower version
- Alarm output: /
- DIP switch: 2 decimal DIP switch and 1 binary DIP switch
- Power supply input: 24VDC 2.5A
- Relay: 1, Max. 30VDC 1A
- Two-wire IP interface: 4 – 1* for indoor station power in, 1* for indoor station power out, 1* for outdoor station power out, 1* for outdoor station out
General
- Button: 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
- Installation: Surface mounting
- Indicator: 4（Wifi、Power、Mute、In use）
- Protective level: /
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90% (no-condensing)
- Dimensions: 190.2 mm × 138.2 mm × 20 mm (7.5″ × 5.4″ × 0.8″)
- Battery: /
- Power supply: 24 VDC, 2.5 A
- Application environment: Indoor
- Power consumption: ≤ 6 W
- Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
