Hikvision DS-KH9570-WTE1/S

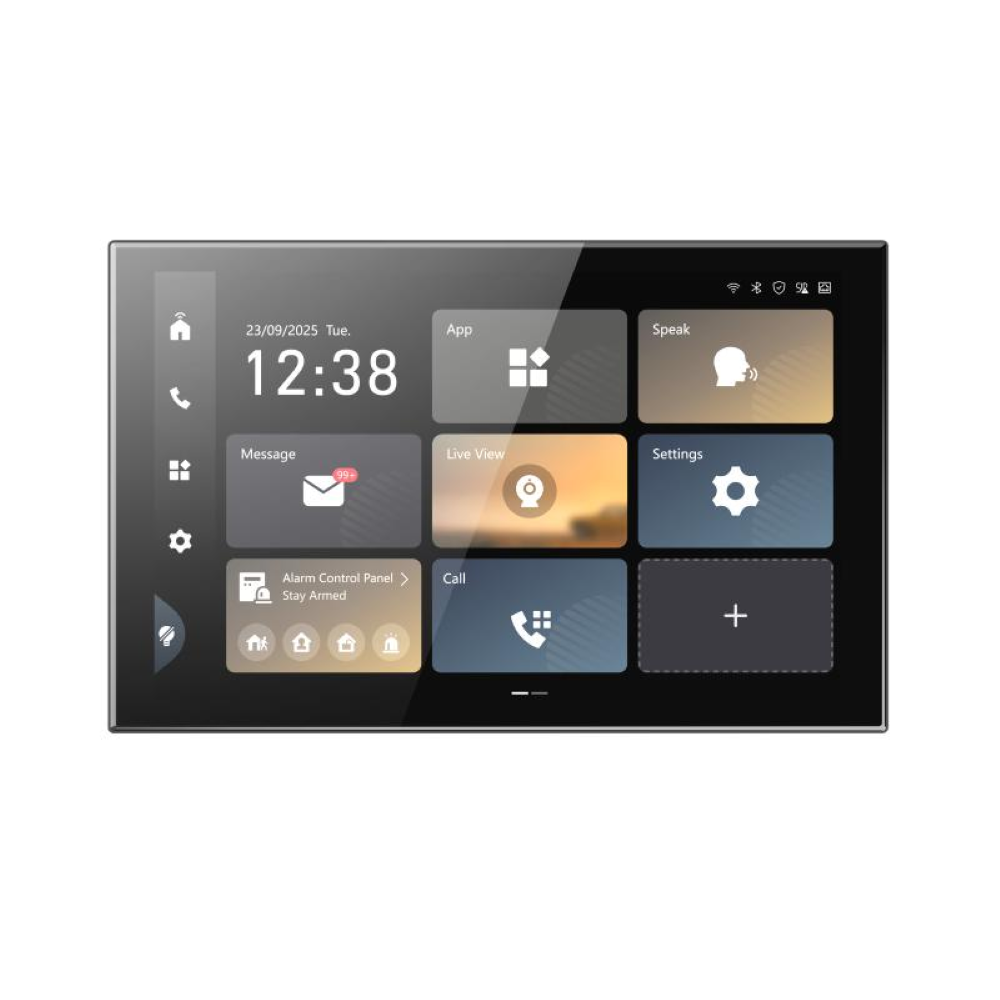

Hikvision DS-KH9570-WTE1/S TalkVu Series Android PoE IP Wireless 10″ Indoor Touchscreen Intercom Monitor – Unified Security Management – 1080P Display – WiFi 6 – Bluetooth
SKU: DS-KH9570-WTE1/S
Categories: Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Hikvision Wireless IP Video Intercoms, Video Intercoms
Tags: 10 Inch, Bluetooth, Built-in Mic, Gate Control, Hikvision, Intercom, IP, Monitor, Network, PoE, Speaker, TalkVu, Touchless, Video Intercom, WiFi, Wireless
Hikvision DS-KH9570-WTE1/S TalkVu Series Android PoE IP Wireless 10″ Indoor Touchscreen Intercom Monitor – Unified Security Management – 1080P Display – WiFi 6 – Bluetooth
Key Features:-
- Integrated Smart Security Unified security management on single screen
- Ultra Smooth Operation: • 4-core processor • Android 14 • Up to 4 GB RAM + 8 GB ROM
- Super HD Clarity: • 10.1″ IPS touch display • 1920×1200 resolution
- Real Talk Anytime: • Dual microphones & speakers • Noise suppression and echo cancellation
System parameters
- Operation system: Android 14
- ROM: 8 GB
- RAM: 4GB
- Processor: Embedded high performance processor
Display parameters
- Screen size: 10.1-inch
- Operation method: Capacitive touch screen
- Type: Colorful IPS
- Resolution: 1920 ×1200
Video parameters
- Lens: /
- Resolution: /
- Video compression standard: /
Audio parameters
- Audio input: 2 built-in omnidirectional microphone
- Audio compression standard: G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD
- Audio output: 2 built-in loudspeaker (Max. 80dB@50cm)
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
Capacity
- Linked doorphone capacity: 17
- Message capacity: 200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records
- Linked indoor extensions capacity: 16
- Linked network camera capacity: 16 (Up to 4 1080P decoding streams at the same time, H.264&H.265)
Network parameters
- Wi-Fi: Wi-Fi 6, 2.4 GHz & 5GHz
- Bluetooth: BLE 5.0
- Network protocol:
-
- IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- DTMF: SIP Info
- SADP, ISAPI, ONVIF
-
Device interfaces
- Alarm input: 8 (Reserved)
- Network interface: 1* RJ-45 10/100 Mbps self-adaptive
- RS-485: 1* RS-485 (Half duplex)
- TF card: Support TF card (FAT32/exFAT), up to 256 G
- Power supply input: 12 VDC
- Power supply output: 12 VDC, 200mA
- Relay: 1 (Reserved), Max. 30VDC 1A
General
- Proximity Sensor: Distance: 50cm, Horizontal: 25°, Vertical: 25°
- Installation: Surface mounting
- Without package: 545 g (1.2 lb),With package: 639g (1.41 lb)
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90% (no-condensing)
- Power supply: 12 VDC, 2.5 A; IEEE 802.3at, Standard PoE
- Application environment: Indoor
- Power consumption: ≤ 24 W
- Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Dimension (W × H × D): 246.58 mm × 155.76 mm × 23.62 mm (9.71″ × 6.13″ × 0.93″)
