Hikvision DS-KV8114T-KWQE1

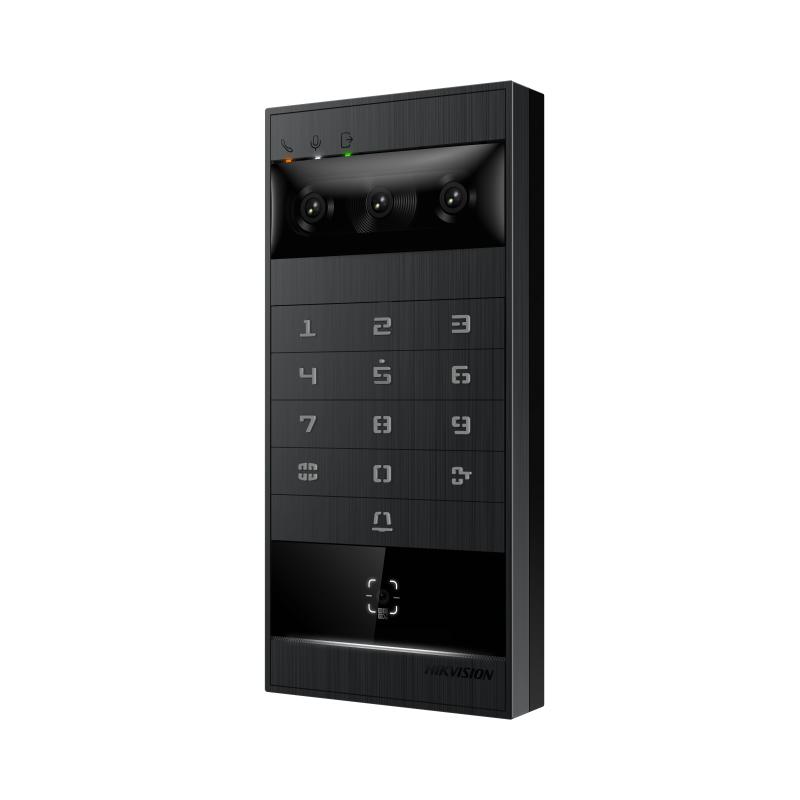

Hikvision DS-KV8114T-KWQE1 Wireless (WiFi 6) PoE IP Video Intercom Outdoor Station – Supprts Face-Recognition – 4MP 180° Wide Angle Camera – Built-in Mifare Card Reader + Touch Keypad + Bluetooth + QR-Code Reader – Can Work Standalone – Two-Lock Control
SKU: DS-KV8114T-KWQE1
Categories: Hikvision IP Video Intercoms, Hikvision Pro Series IP Video Intercoms, Hikvision Video Intercoms, Video Intercoms
Tags: 2.4GHz Wireless, 4MP, Bluetooth, Built-in Mic, Doorbell, Face Recognition, Gate Control, Hikvision, Intercom, IP, IP65-Rated, Mifare, Network, PoE, QR Code, RFID, RFID Reader, Speaker, TalkVu, Touch Keypad, Video Intercom, Weatherproof, WiFi, WiFi 6, Wireless
Hikvision DS-KV8114T-KWQE1 Wireless (WiFi 6) PoE IP Video Intercom Outdoor Station – Supprts Face-Recognition – 4MP 180° Wide Angle Camera – Built-in Mifare Card Reader + Touch Keypad + Bluetooth + QR-Code Reader – Can Work Standalone – Two-Lock Control
Key Features:-
- Camera & Optics: Three-lens setup (4MP main + 2MP + 2MP) delivering a 180° horizontal field of view with AI-ISP image processing and 120dB WDR for difficult lighting.
- Audio: 4 built-in omnidirectional microphones and 2 loudspeakers with AI noise reduction, echo cancellation, and active noise suppression.
- Access Methods:
-
- Face recognition (0.3 m to 1.5 m range)
- IC/ID Cards (M1 / Desfire, 13.56 MHz)
- Bluetooth (BLE 5.2)
- PIN code on integrated keypad
- QR code
- Mobile App (Hik-Connect)
-
- Capacities: Supports up to 10,000 users, 10,000 faces, 50,000 cards, and 16 sub door stations.
- Smart & AI Features:
-
- AI video detection (perimeter intrusion, line crossing, region entrance/exit, person/vehicle detection)
- Abnormal sound detection (scream, glass breaking, crying, gunshot)
- Fall-down and portrait-centered tracking
-
- Network & Connectivity: Wi-Fi 6 (2.4 GHz, IEEE 802.11ax), 1 * RJ-45 (10/100 Mbps), ONVIF, and SIP v2 support.
- Physical & Environmental: IP66 weather resistance, IK08 vandal resistance, operating range of -40°C to 60°C, powered via 12 VDC or PoE, dimensions of 202.6 x 95.6 x 34.1 mm (550g)
System parameters
- Operation system: Linux
- ROM: 4GB
- RAM: 1GB
- Processor: Embedded high performance processor
Video parameters
- Lens: 3
- Resolution:
-
- Main stream: 4MP (2688x1520P), 2MP (1920x1080P), 1MP (1280x720P)
- Sub stream: 2MP (1920x1080P), 1MP (1280x720P), 0.3MP (640x480P)
-
- FOV:
-
- Center Lens: Horizontal: 180°; Vertical: 105°
- Side Lenses: Horizontal: 75°; Vertical: 150°
-
- Wide dynamic range (WDR): Support 120 dB
- Supplement light: IR light, up to 3 m
- Video compression standard: H.264; H.265; MJPEG
Audio parameters
- Audio input: 4 built-in omnidirectional microphones
- Audio compression standard: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
- Audio output: 2 built-in loudspeakers
- Audio compression bitrate: 8~64 Kps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Audio Performance: 50cm, 85dB
- Audio Sample Rate: 8kHz, 16kHz
Capacity
- User capacity: 10000
- Face capacity: 10000
- Card capacity: 50000
- Sub door station capacity: 16
Network parameters
- Network protocol: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, UDP, WebSocket, WebSockets, ONVIF, SIP v2 (RFC3261)
- Wi-Fi: 2.4G
- Bluetooth: Supported, BLE 5.2
- 3G/4G/
- Wi-Fi Protocol: IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax
- Wi-Fi Type: WiFi 6
Authentication
- Authentication mode: Face, Card, QR code, Bluetooth, Hik-Connect, Indoor station, Mobile APP, PIN Code
- Card type: M1 Card, Desfire
- Card reading frequency: 13.56 MHz
- Face recognition distance: 0.3 to 1.5 m
- Card reading distance: 3 cm
Application
- Mobile APP: Hik-Connect
- Motion Detection: Support
- Playback: Support
- Call Elevator: Support
- Smart Features:
-
- Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound, Gunshot
- Recommended Detection Distance: ＜ 3m
- Portrait Centered
- Perimeter Detection: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection
- Recommended Detection Distance: ＜ 10m;
- Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound, Gunshot
-
-
-
- Supports Person and Vehicle Target Detection
-
Fall Down Detection
-
Recommended Detection Distance: ＜ 5 m
-
-
Target Microphone: Pickup Range: Forward 60° Sector Area
-
Recommended Detection Distance: 0.5 m ~ 1 m
-
-
Smart Noise Reduction: Supports Common Steady-State and Non-Steady-State Street Noises; Noise Reduction Level: > 15 dB
-
Device interfaces
- Alarm input: 4, (include Exit button and Door contact input)
- Network interface: 1* RJ-45, 10/100 Mbps self-adaptive
- TAMPER: 1
- Exit button: 2
- RS-485: 1
- USB: /
- Wiegand: /
- TF card: Support TF card, up to 128 G
- Alarm output: /
- Lock control: 2 relay, Max. 30 VDC 1A
- Door contact input: 2
- Supported TF Format: FAT32; exFAT
General
- Application environment: Outdoor
- Button: 13 physical button(s)
- Installation: Surface mounting & Flush mounting
- Without package: 550 g (1.21 lb), With package: 831g (1.83 lb)
- Indicator: 3
- Protective level: IP66, IK08 (excluding the lens area and card reading area)
- Storage temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity: 10% to 90% (no-condensing)
- Battery: /
- Dimension (W × H × D): 202.6 mm × 95.6 mm × 34.1 mm (7.98″ × 3.76″ × 1.34″)
- Power consumption: With Lock: < 14 W; Without Lock: < 20 W
- Power supply: 12 VDC, 2 A,IEEE 802.3 at, standard PoE
- Material: Rear Shell Material: Plastic; Front Shell: Aluminum Alloy & Plastic; Frame: Aluminum Alloy; Viewing Window Panel Material: Plastic
- Power Supply Output: Max. 12 VDC, 500mA
- Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Ambient lighting: Support
Recommendations
- Use PoE Ethernet instead of Wi-Fi whenever possible.
- Ensure the device is connected to a 2.4 GHz Wi-Fi network (not 5 GHz).
- Assign a static IP address.
- Upgrade to the latest firmware.
