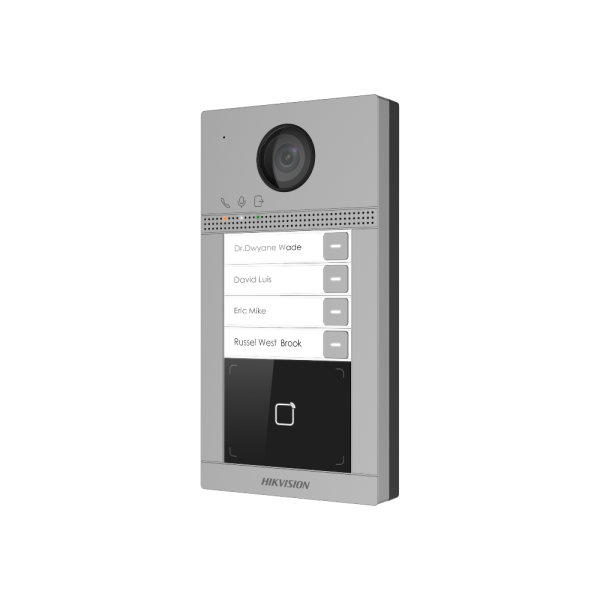

Hikvision DS-KV8413-WME1 Gen 2 WiFi PoE IP 2MP 1080P Wireless Weatherproof Video Intercom Outdoor Station Unit with 4-Buttons - Each Can Be Programmed Individually

Hikvision DS-KV8413-WME1

Please login for price

Hikvision DS-KV8413-WME1 Gen 2 WiFi PoE IP 2MP 1080P Wireless Weatherproof Video Intercom Outdoor Station Unit with 4-Buttons – Each Can Be Programmed Individually

Hikvision DS-KABV8113-RS/Surface

Hikvision DS-KABV8113-RS/Surface Surface Mounting stainless steel protective shield for DS-KV8113/8213/8413 series intercom villa door station

Temporarily unavailable

Hikvision DS-KABV8113-RS/Flush

Hikvision DS-KABV8113-RS/Flush Flush-Mounting stainless steel protective shield for DS-KV8113/8213/8413 series intercom villa door station

Temporarily unavailable

Warranty: 3 Years

Add to quote
SKU: DS-KV8413-WME1 Categories: , , , Tags: , , , , , , , , , , , ,

Features :-

  • Four Button to call four separate Room Stations
  • Standard PoE
  • 2MP HD camera
  • Noise suppression and echo cancellation
  • Low illumination
  • Access control functions (built in Mifare Card Reader)
  • Tamper-proof
  • Configuration remotely via Web
  • 2.4GHz Wi-Fi
  • Protection level: IP65 / IK08

System Parameters

  • Operation Method: Physical button
  • Operation System: Embedded Linux operation system
  • Flash: 32MB
  • RAM: 256MB

Alarm Parameters

  • Tampering Alarm: 1

Network Parameters

  • Ethernet: 10/100 Mbps Ethernet
  • Network Protocol: TCP/IP, RSTP
  • Wifi: 2.4G Wi-Fi

Audio Parameters

  • Audio Input: Built-in omnidirectional microphone
  • Audio Output: Built-in loudspeaker
  • Audio Compression Standard: G.711 U
  • Audio Compression Rate: 64 Kbps
  • Audio Quality: Noise suppression and echo cancellation

General

  • Indicator: 3
  • Vandal Proof: IK08
  • Power Supply: IEEE802.3af, standard PoE 12 VDC
  • Power Consumption: ＜ 10 W
  • Dimension (L X W X D): 174 mm × 91 mm × 29 mm
  • Installation: Surface mounting/ Flush mounting
  • Working Temperature: -40° C to 53° C(-40° F to 127.4° F)
  • Working Humidity: 10% to 95%
  • Ingress Protection Level: IP65

Video Parameters

  • Camera: 2MP HD Camera
  • Wide Dynamic Range: True WDR
  • Video Compression Standard: H.264
  • Resolution: Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576
  • Night Vision: Low illumination IR supplement mode
  • Video Streaming: Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
  • Field Of View: Horizontal: 129° Vertical: 75°

Device Interfaces

  • Button: 4
  • Alarm Input: 4
  • TF Card: Max to 32G
  • Relay For Lock: 2

Event

  • Motion Detection: Support

Access Control Parameters

  • Internal Card Reader: 13.56 MHz Mifare Card Reader
DS-KV8413-WME1
