Hikvision DS-PD1-MC-WS

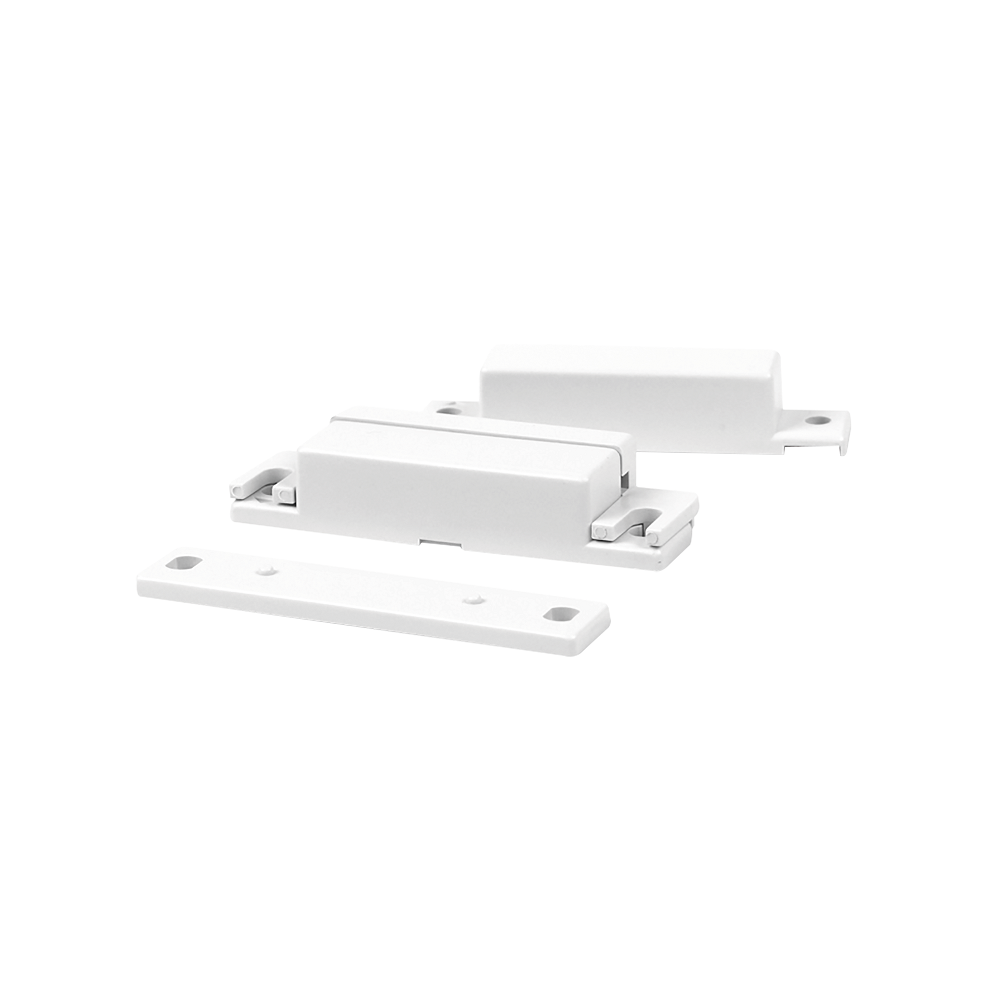

Hikvision DS-PD1-MC-WS Surface-Mount Wired Intrusion / Alarm Door-Contact / Reed-Switch – Plastic Casing
SKU: DS-PD1-MC-WS
Categories: Intrusion & Alarms, Wired Alarm Detectors, Wired Alarm Door Contact Detectors, Wired Alarms
Tags: Access Control, Alarm, Door Contact Sensor, Hikvision, Reed Switch
Hikvision DS-PD1-MC-WS Surface-Mount Wired Intrusion / Alarm Door-Contact / Reed-Switch – Plastic Casing
Key Features :-
- Surface Mounted Design: Installs directly onto compatible doors, windows, or access openings without recessing.
- Door & Window Detection: Detects open and close events to support intrusion alarm monitoring at entry points.
- NC Connection: Provides normally closed connection support for compatible wired alarm systems.
- ABS Shell: Uses a compact ABS housing suited to everyday indoor detector installations.
- Wired Alarm Integration: Designed for use within compatible wired intrusion alarm deployments.
- Versatile Application: Suited to homes, offices, retail sites, warehouses, cabinets, and internal doors.
Detection Performance
- Detection Gap: ≥17
Interface
- Alarm Output: Normally Closed
Electrical Characteristics
- Typical Voltage: ≤100 VDC（Capacity）
- Typical Current: ≤500 mA（Capacity）
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Shell Material: Flame Retardant ABS
- Dimension (WxHxD): 63.5mm x 12.5mm x 15.7mm; 63.5mm x 12.5mm x 12.5mm
