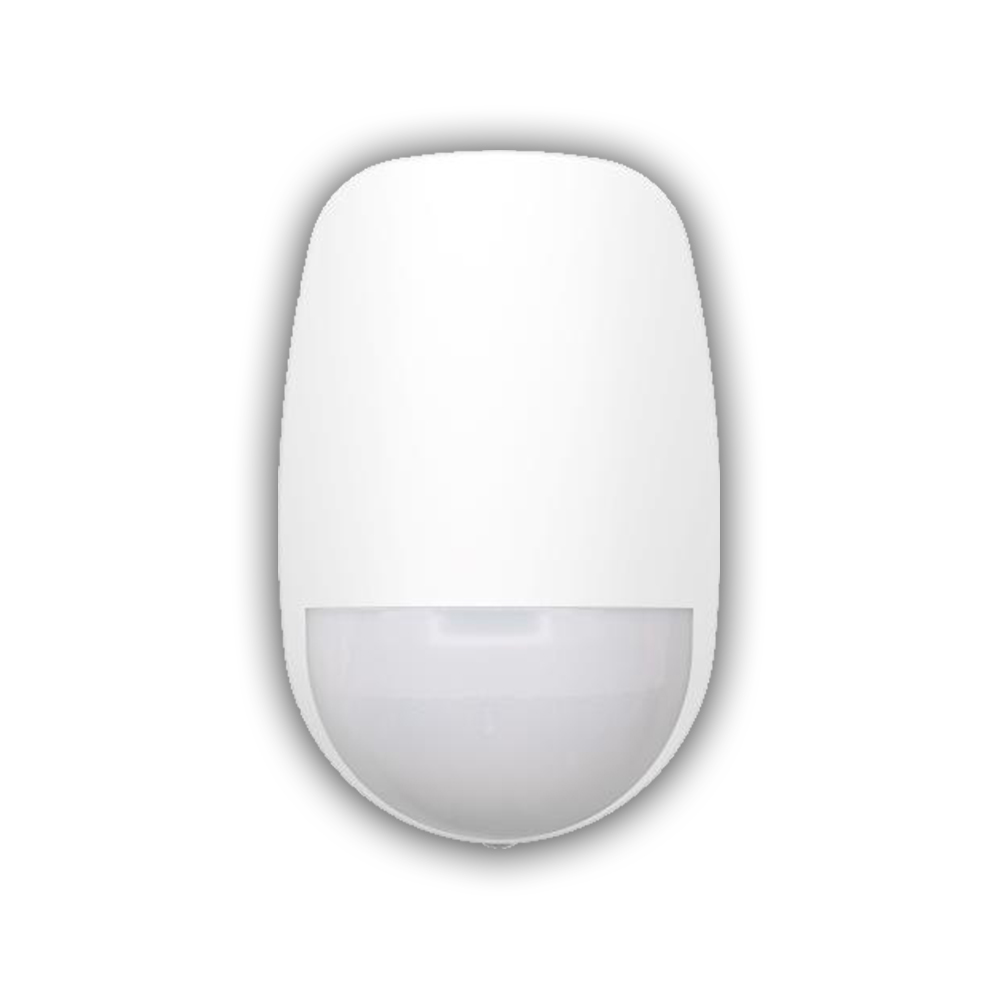

Hikvision DS-PDC15-EG2

Hikvision DS-PDC15-EG2 Wired PIR Curtain Detector – 15m Detection – 6.3° Narrow Angle

Hikvision DS-PDC15-EG2 Wired PIR Curtain Detector – 15m Detection – 6.3° Narrow Angle

Features :-

  • Up to 15m detection range
  • Digital temperature compensation
  • Selectable EOL resistors for alarm and tamper-proof wiring
  • Sealed optics preventing insect interference
  • Global certifications available (EN Grade2/CE/FCC/CB/IC/RCM)
  • 9 to 16 V wide voltage adaptation with polarity reverse connection protection
  • Wall/Ceiling-mounting brackets available (sold separately)

Hikvision Product-Link -> DS-PDC15-EG2

Detection Performance

  • Detection Method: Passive Infrared
  • Detection Range: 15m
  • Detection Angle: 6.3°
  • Detection Zones: 18
  • Detectable Speed: 0.3~2m/s
  • White Light Filter: 6500lux
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support

Feature

  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front

Interface

  • Alarm Output: Normally Closed
  • LED Indicator: Blue (Alarm)

Transmission

  • Transmission Method: Wired

Electrical Characteristics

  • Power Supply: 9 – 16 VDC
  • Typical Voltage: 12 VDC
  • Power Consumption: 11mA Max

General

  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension (WxHxD): 65.4mm x 86.8mm x 45.5mm
  • 68 g
  • Mounting Height: 2.4 m to 3.6 m
  • Mounting Method: Wall
  • Application Scenario: Indoor
  • Bracket: Optional wall & ceiling accessory
