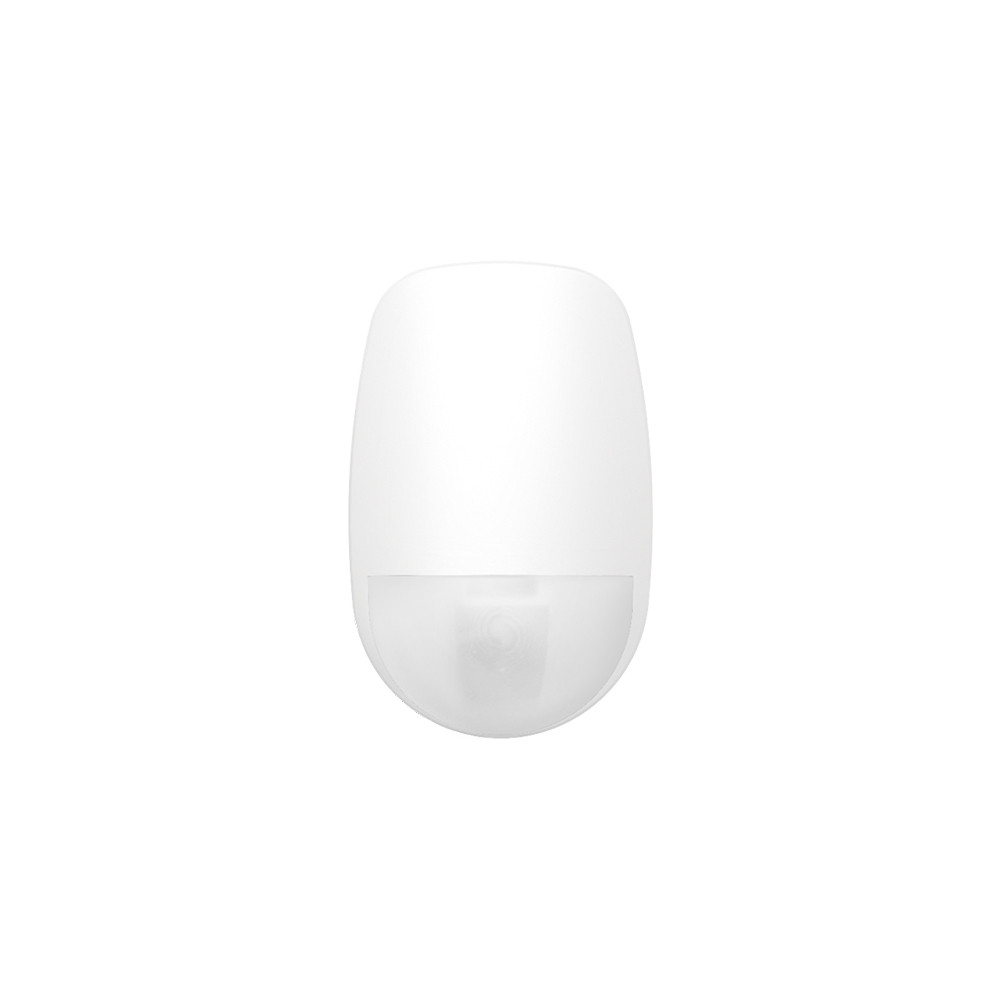

Hikvision DS-PDD12P-EG2-WB

Hikvision DS-PDD12P-EG2-WB 433MHz Battery-Operated Wireless Dual-Technology (Microwave + Passive IR) Indoor PIR – with 12m Distance Coverage with 85.9° Wide Angle – 30Kgs Pet Immunity – To Work with AX Pro Hub

Hikvision DS-PDD12P-EG2-WB 433MHz Battery-Operated Wireless Dual-Technology (Microwave + Passive IR) Indoor PIR – with 12m Distance Coverage with 85.9° Wide Angle – 30Kgs Pet Immunity – To Work with AX Pro Hub

Features :-

  • 3D optics including creep-zone protection, full coverage without dead angle
  • 24G microwave to prevent wall penetration
  • Digital temperature compensation
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission

Detection Performance

  • Detection Method: Passive Infrared; Microwave
  • Detection Range: 12m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3~2m/s
  • Sensitivity: High; Auto; Pet
  • Pet Immunity: 30Kg
  • White Light Filter: 6500lux
  • Microwave Frequency: 24GHz (24.15~24.25GHz)
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support

Feature

  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front; Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support

Interface

  • Power Switch: Power Up Enrolling
  • LED Indicator: Green (PIR), Red (Microwave), Blue (Alarm)

Transmission

  • Transmission Technology: Tri-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 433MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range (Free Space): 1.2Km
  • Frequency Hopping: Support
  • Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

  • Standard Battery Life: 5 years in work status (being triggered 20 times per day)
  • Power Supply: Battery Powered
  • Battery Type: CR123A × 2
  • Typical Voltage: 3V

General

  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension(W x H x D): 65.5mm × 103mm × 48.5mm
  • Weight: 141g
  • Mounting Height: 1.8 to 2.4m
  • Mounting Method: Wall
  • Application Scenario: Indoor
  • Bracket: Optional Wall & Ceiling Accessory
