Hikvision DS-PDMC-EG2-WB

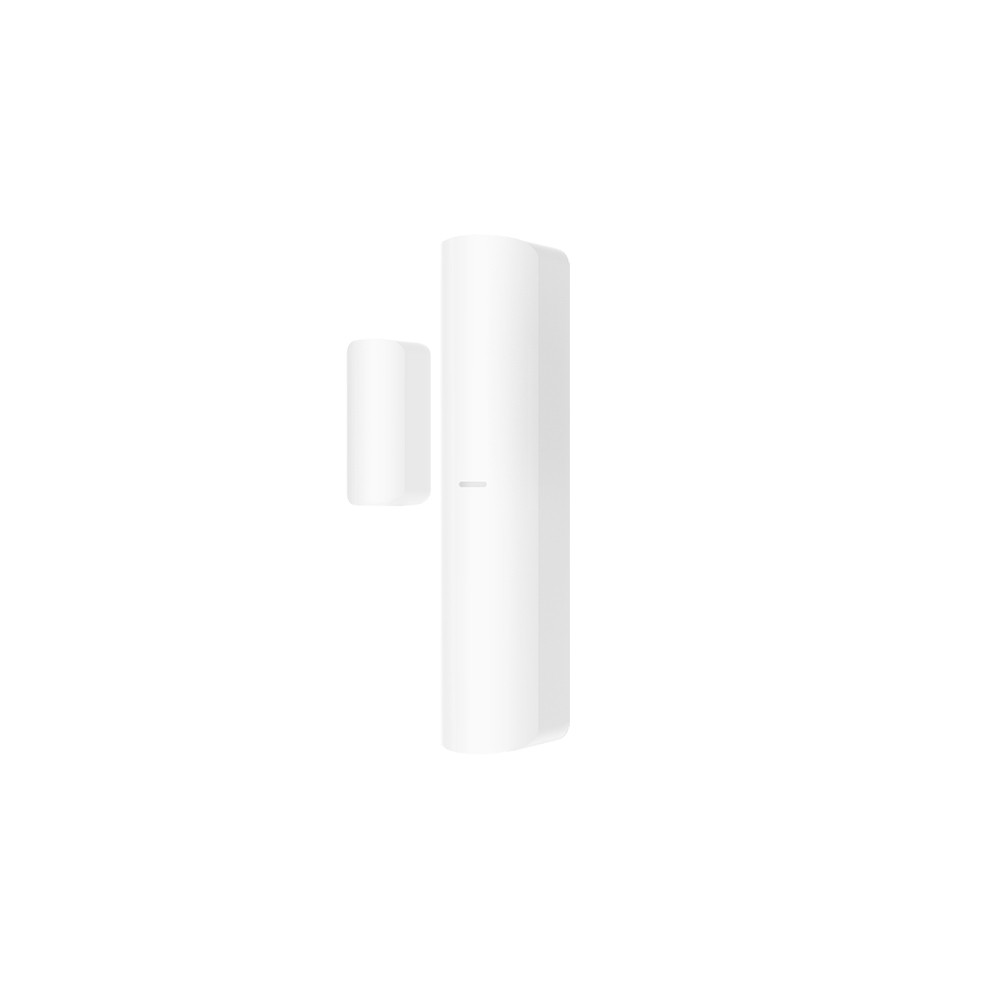

Hikvision DS-PDMC-EG2-WB 433MHz Battery-Powered Indoor Wireless Door Contact – Slim Design – To Work with AX Pro Hub

Hikvision DS-PDMC-EG2-WB 433MHz Battery-Powered Indoor Wireless Door Contact – Slim Design – To Work with AX Pro Hub

Features :-

  • Slim design for an unobtrusive (unnoticeable) installation
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission

Detection Performance

  • Detection Method: Opening Contact
  • Detection Gap: 43mm Max

Feature

  • Digital Processing: Support
  • Tamper Protection: Front; Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support

Interface

  • Alarm Input: Normally Closed; Normally Open; Impulse Count
  • Power Switch: Power Up Enrolling
  • LED Indicator: Blue (Alarm)

Transmission

  • Transmission Technology: Tri-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 433MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range (Free Space): 1.2Km
  • Frequency Hopping: Support
  • Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

  • Standard Battery Life: 5 years in work status (being triggered 20 times per day)
  • Power Supply: Battery Powered
  • Battery Type: CR123A x 1
  • Typical Voltage: 3V

General

  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension (W x H x D): 22.5mm × 103mm × 23.2mm; 13mm × 34.4mm × 11.4mm
  • Weight: 59g
  • Application Scenario: Indoor
