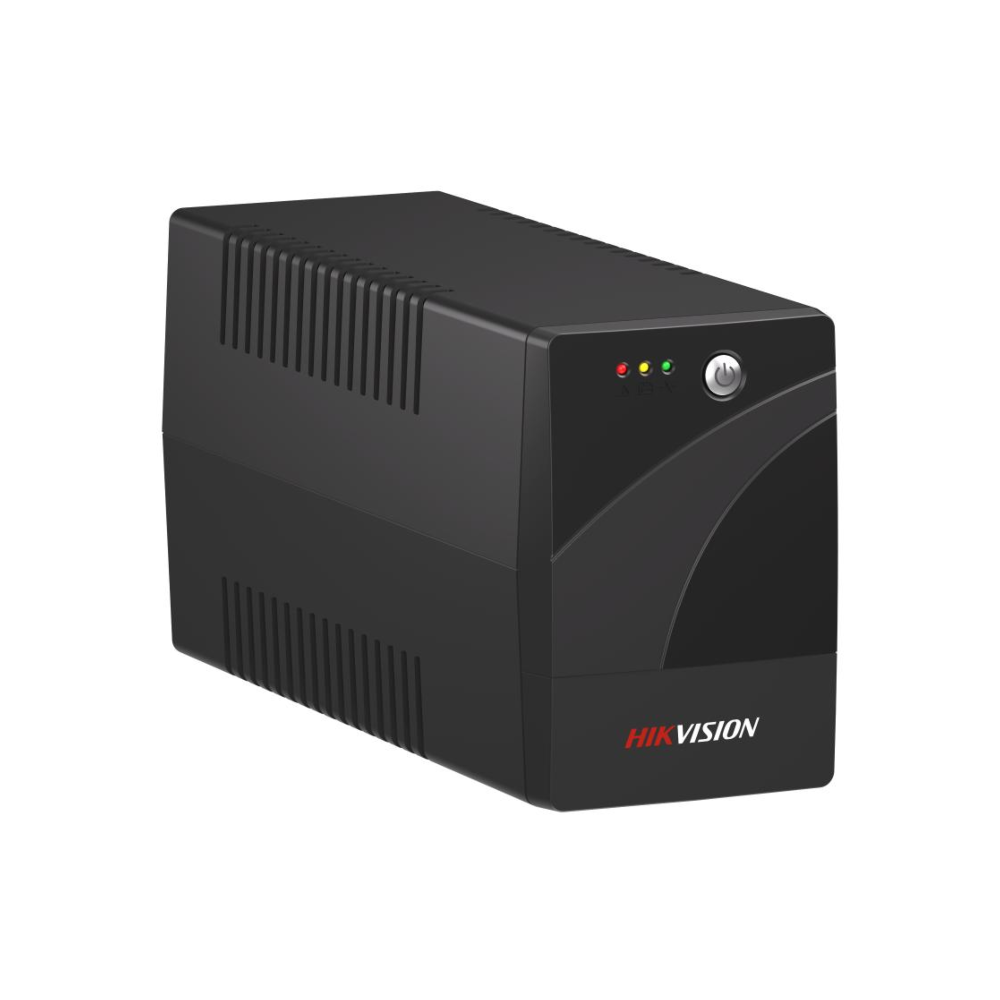

Hikvision DS-UPS1000-R#AUS

Power

• UPS Capacity: 1000VA/600W

Input

• Input Voltage Range: 140 VAC to 290 VAC
• Input Frequency: 50/60Hz

Output

• Output Voltage Range: 210 VAC to 235 VAC
• Output Frequency: 50 Hz ± 0.5 Hz
• Transfer Time: ≤10ms
• Waveform: Simulated Sinewave
• Outlet Type: AU TYPE 1
• Outlet Number: 2

Battery

• Battery Type: 1 * 12 V/9 Ah lead-acid battery
• Recharge Time: 4-6 hours recover to 90% capacity
• Typical Backup Time: Run time at 100w: 20-25 min

Interface

• Communicate Ports: No

Protection

• Full Protection: Surge protection, Overload protection, Discharge protection, Overcharge protection

Indicator

• Display: Line mode: Solid green led lighting; Battery mode: Solid yellow led flash; Fault mode: Solid red led lighting
• Alarm: Low battery : Sounding every second; Over load : Sounding every 0.5 seconds; Fault: Continuously sounding.

General

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity: 0% to 90% (non-condensing)
• Dimension: 276.1 mm × 101 mm × 142 mm (10.9″ × 3.98″ × 5.59″)
• Weight: Approx. 5.55 kg (12.13 lb)
