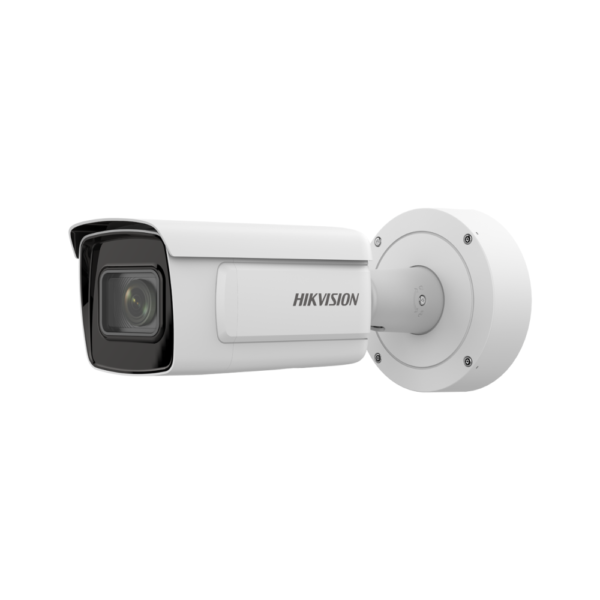

Hikvision iDS-2CD7A46G0/P-IZHSY-2812

Hikvision iDS-2CD7A46G0/P-IZHSY-2812 DeepInView Series H265 4MP PoE IP EXIR (50m) 140 Ultra-WDR Darkfighter (0.0005 Lux Colour) Weatherproof ANPR (Automatic Number Plate Recognition) LPR (License Plate Recognition) Bullet Camera with 2.8-12mm Motorized Zoom Lens – Wiegand Output – NEMA 4x – Anti-Corrosion Coating

  • Hikvision DS-1475ZJ-SUS

    Hikvision DS-1475ZJ-SUS Stainless-Steel Vertical Pole-Mount Bracket

  • Hikvision DS-1476ZJ-SUS

    Hikvision DS-1476ZJ-SUS Stainless-Steel Weatherproof Corner-Mount Bracket

This product is currently unavailable.

Hikvision iDS-2CD7A46G0/P-IZHSY-2812 DeepInView Series H265 4MP PoE IP EXIR (50m) 140 Ultra-WDR Darkfighter (0.0005 Lux Colour) Weatherproof ANPR (Automatic Number Plate Recognition) LPR (License Plate Recognition) Bullet Camera with 2.8-12mm Motorized Zoom Lens – Wiegand Output – NEMA 4x – Anti-Corrosion Coating

Features :-

  • 2680 ×1520 @ 25fps
  • Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON)
  • H.265, H.265+, H.264+, H.264
  • 140dB WDR
  • IR up to 50 meters
  • License Plate Recognition (+Wiegand)
  • 5 streams and up to 5 custom streams to meet a wide variety of applications
  • On-board storage up to 256 GB
  • IP67, IK10, NEMA 4X
  • Heater

Hikvision Product-Link -> iDS-2CD7A46G0/P-IZHSY

Camera

  • Image Sensor: 1/1.8″ Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter; Blue glass module to reduce ghost phenomenon

Lens

  • Focal Length & FOV: Horizontal FOV: 114.5° to 41.8°, Vertical FOV: 59.3° to 23.6°, Diagonal FOV: 141.1° to 48°
  • Focus: Auto, semi-auto, manual
  • Iris Type: P-iris
  • Aperture: 2.8 to 12 mm: F1.2 to F2.5

DORI

  • DORI: Wide: 2.8 to 12 mm: D: 60m, O: 23.8m, R: 12m, I: 6m; Tele: D: 149m, O: 59.1m, R: 29.8m, I: 14.9m

Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: 50 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream / Third stream / Fourth stream / Fifth stream: H.265 / H.264 / MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR / VBR
  • Scalable Video Coding (SVC): H.265 and H.264 encoding
  • Region Of Interest (ROI): 4 fixed regions for each stream
  • Target Cropping: Yes

Audio

  • Audio Type: Mono sound
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE8+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+; Local service: Chrome 41.0+, Firefox 30.0+


  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
  • Wide Dynamic Range (WDR): 140 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, HLC, Defog, 3D DNR
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image Stabilization: EIS

Interface

  • Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Audio: With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
  • Alarm: 2 input, 2 outputs (max. 24 VDC, 1 A)
  • RS-485: With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset Key: Yes
  • Power Output: With -Y: 12 VDC, max. 100 mA
  • Wiegand: /P-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)

Event

  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
  • Smart Event: Intrusion detection, scene change detection, audio exception detection, defocus detection; Line crossing detection, up to 4 lines configurable; Intrusion detection, up to 4 regions configurable; Region entrance detection, up to 4 regions configurable; Region exiting detection, up to 4 regions configurable
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function

  • Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types
  • Road Traffic And Vehicle Detection: Blocklist and allow list: up to 10,000 records; Captures vehicle that has no license plate; Support license plate recognition of motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
  • Metadata: Metadata of road traffic is supported.

General

  • Power: 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block; PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W
  • Dimension: Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″); With -Y: Ø140 × 351 mm (Ø5.5 × 13.8″)”
  • Package Dimension: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
  • Approx. 1950 g (4.2 lb.)
  • With Package Weight: Approx. 3070 g (6.7 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
  • General Function: Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC (ICES-003: Issue 7);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 62368-1);

    CB (IEC 62368-1:2014+A11);

    CE-LVD (EN 62368-1:2014/A11:2017);

    BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

    LOA (IEC/EN 60950-1)

  • Environment

    CE-RoHS (2011/65/EU);

    WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • Protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
  • Anti-Corrosion Protection: With -Y: NEMA 4X(NEMA 250-2018)
  • Automotive And Railway: EN50121-4
  • Other: PVC FREE
