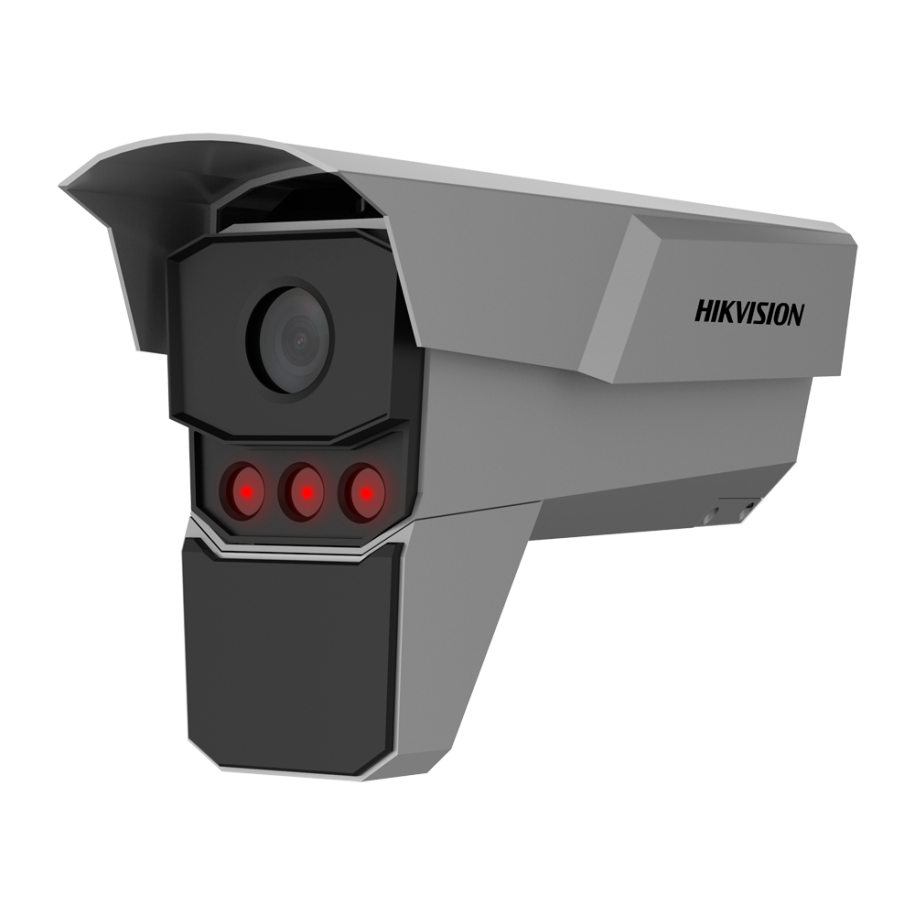

Hikvision iDS-TCM403-GIR/Y/POE/0832

Camera

• Image Sensor: 1/1.8″ progressive scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1/50 s to 1/40000 s
• Day & Night: IR cut filter

Lens

• Focal Length & FOV: 8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°
• Focus: Auto
• Iris Type: DC-IRIS
• Aperture: 8-32 mm: F1.7

Illuminator

• Built-in Supplement Light Type: IR light
• Supplement Light Number: 3
• Built-in Supplement Light Range: Up to 50 m
• IR Wavelength: 850 nm

Radar

• Working Frequency: 77 GHz
• Modulation Waveform: FMCW
• Detection Distance: Up to 100 m
• Speed Measuring Range: up to 120Km/h
• Horizontal Detection Angle: ± 22°
• Vertical Detection Angle: ± 10°
• Coverage Lanes: Up to 3 lane(s)

Video

• Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
• Sub-Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
• Third Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288); 60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288)
• Video Compression: Main stream: H.265/H.264/MJPEG; Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile/Main profile/High profile
• H.265 Type: Main profile

Audio

• Audio Compression: G.711/G.722.1
• Audio Bit Rate: 8Kbps (G.711) /16Kbps (G.722.1)

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, QoS, IPv4/IPv6, UDP, SSL/TLS, ISUP, ARP, 802.1X
• Simultaneous Live View: Up to 6 channels
• API: ISAPI, SDK, ISUP, ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security: Password protection, Complicated password, HTTPS encryption, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, Control timeout settings, Security audit log,TLS 1.2, 1.3, Host authentication (MAC address)
• Network Storage: Micro SD/TF card (512 GB), local storage and CVR, NVR, ANR
• Web Browser: Chrome V61+, IE9 to IE11, Firefox V41+, Edge


• Image Settings: Saturation, Brightness, Contrast, Sharpness, Gain, White balance, AGC, Adjustable by client software or web browser.
• Day/Night Switch: Auto / Scheduled / Manual
• Wide Dynamic Range (WDR): 140 dB
• Image Enhancement: BLC, 3D DNR

Interface

• Ethernet Interface: 1* RJ45 10M/100M/1000M Ethernet interface
• On-Board Storage: Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
• Audio: Supported
• Alarm: 1* input interface, 1* output interface, 2* relays
• RS-485: 1* RS-485 interface
• Wiegand: 1* Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)

Event

• Basic Event: HDD error,Network disconnected,IP address conflict

Road Traffic and Vehicle Detection

• Coverage: Up to 3 lane(s)
• Smart Function:
  • • Helmet Detection, Manned Non-Motor
    • Traffic flow detection：average speed, traffic flow, queuing length, and traffic status
    • Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
• LPR Countries/Regions

  • • Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain

    • Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria

    • Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka

    • America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala

    • Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina

    • Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

• Accuracy (Under recommended installation and lighting conditions):
  • • Capture rate > 99%,
    • Vehicle moving direction recognition accuracy > 98.5%,
    • LPR accuracy > 98%,
    • Mistaken capture rate < 2%
• No License Plate Detection: Supported
• Motorcycle LPR: Supported
• Vehicle Type: Car, Van, Bus, Truck, Light Truck, SUV(MPV), Pickup, Motorcycle, Tricycle
• Vehicle Color: Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black; Recognizable at daytime only.
• Vehicle Manufacturer: 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
• Capture Speed Range: 5 to 120 km/h

General

• Operating System: Linux
• Power: DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block; PoE: 802.3at, Type 2, Class 4, max. 15 W
• Material: Aluminum alloy
• Dimension: 429.5 mm × 120 mm × 184.2 mm (16.9″ × 4.72″ × 7.3″) (L × W × H)
• Package Dimension: 595 mm × 259 mm × 193 mm (23.4″ × 10.2″ × 7.6″) (L × W × H)
• Weight: Approx. 3.405 kg (7.51 lb.)
• With Package Weight: Approx. 4.635 kg (10.22 lb.)
• Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• General Function: One-key reset, three streams, heartbeat, password protection, watermark
• Language8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish

Approval

• RF: CE-RED: EN 301489-1 V2.2.3, EN 301489-51 V2.1.1, EN 301091-2 V2.1.1, EN IEC 62311:2020
• EMC: CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
• Safety: CB: IEC 62368-1: 2014+A11, CB: IEC 62368-1: 2018+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
• Protection: IK10: IEC 62262:2002,IP67: IEC 60529-2013
• Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
