Hikvision iDS-TCW403-BI(G)/GK/Y/POE/2812

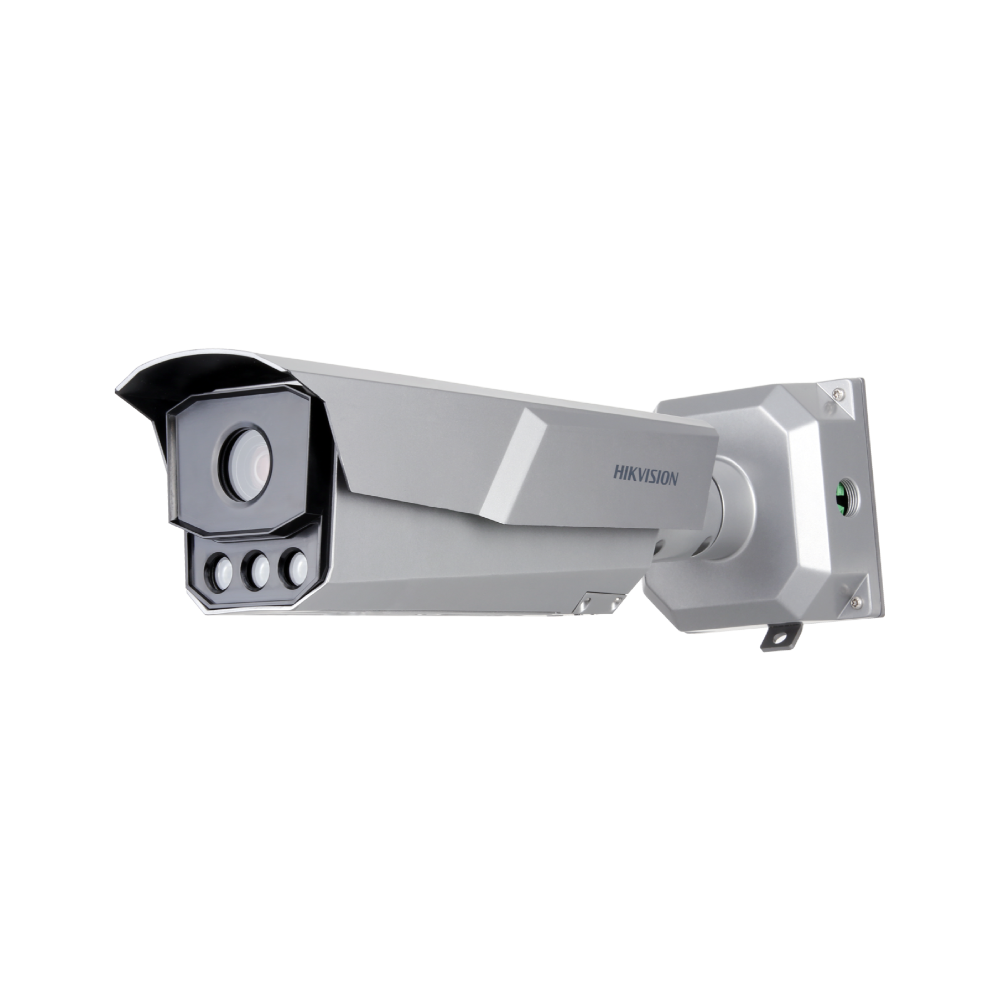

Hikvision iDS-TCW403-BI(G)/GK/Y/POE/2812 4MP Contanainer Number Recognition Camera – PoE IP IR (40m) – 140dB Ultra-WDR – Darkfighter – Weatherproof Bullet Camera – 2.8mm~12mm Motorized Zoom Lens – NEMA4x Anti-corrosion Coating
SKU: iDS-TCW403-BI(G)/GK/Y/POE/2812
Categories: CCTV / Surveillance, IP ANPR LPR Cameras, IP Bullet Cameras, IP Cameras, IP Surveillance
Tags: 140dB True-WDR, 4MP, 4x Optical Zoom Lens, AI, Anti corrosion, Bullet Camera, Container Number Recognition, Hikvision, IP, IR, NEMA-4X, PoE, Varifocal Motorized Zoom Lens, Weatherproof
Hikvision iDS-TCW403-BI(G)/GK/Y/POE/2812 4MP Contanainer Number Recognition Camera – PoE IP IR (40m) – 140dB Ultra-WDR – Darkfighter – Weatherproof Bullet Camera – 2.8mm~12mm Motorized Zoom Lens – NEMA4x Anti-corrosion Coating
Key Features :-
- High performance Container No. Recognition bullet camera
- Excellent low-light performance with DarkFighter technology
- High quality imaging with 4MP resolution(1/1.8” CMOS)
- Clear imaging against strong back light due to 140 dB WDR technology
- Motorized vari-focal lens for easy installation and monitoring
- Water and dust resistant (IP67) and vandal proof (IK10)
Camera
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux with IR
- Shutter Time: 1 s to 1/100000 s
- Day & Night: IR cut filter
Lens
- Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 113.5° to 39°, vertical FOV 58.4° to 22.7°, diagonal FOV 141.3° to 44.3°
- Focus: Auto
- Iris Type: Auto-iris: DC drive
- Aperture: F1.38
Illuminator
- Built-in Supplement Light Type: IR light
- Built-in Supplement Light Range: Up to 40 m
- IR Wavelength: 850 nm
Video
- Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)
- Sub-Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)
- Third Stream: 50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288); 60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288)
- Video Compression: Main stream: H.265/H.264/MJPEG; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
Audio
- Audio Compression: G.722.1,G.711
- Audio Bit Rate: 8 Kbps (G.711), 16 Kbps (G.722.1)
Network
- Protocols: TCP/IP, ICMP, 802.1X, IGMP, SNMP, SMTP, NTP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, QoS, IPv4/IPv6, UDP, ARP, ISUP
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: Password protection, Complicated password, HTTPS encryption, 802.1X authentication (EAP-PEAP.EAP-LEAP.EAP-MD5), Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS, Host authentication (MAC address), TLS 1.2,1.3, Control timeout settings, Security audit log, RTP/RTSP over HTTPS, WSSE and digest authentication for ONVIF
- Network Storage: TF/SD card (512 GB), Local storage, CVR, NVR, ANR
- Web Browser: Chrome V61 to Chrome V89, IE9 to IE11, Chrome V61+, IE9 to IE11, Firefox V41+, Edge, IE9 to IE11
- Image Settings: Saturation, Brightness, Contrast, Sharpness, Gain, White balance, AGC, Adjustable by client software or web browser., Rotate mode
- Day/Night Switch: Schedule, Manual, Auto
- Wide Dynamic Range (WDR): 140 dB
- Image Enhancement: 3D DNR
Interface
- Ethernet Interface: 1* RJ45 10/100/1000 M self-adaptive Ethernet port(s)
- On-Board Storage: Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
- Audio: 1 line in and 1 line out
- Alarm: 1 input T port, 1 output F port, 2 relay port
- RS-485: 1 RS-485
- Wiegand: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
Event
- Basic Event: Network disconnected, IP address conflict, HDD error
Road Traffic and Vehicle Detection
- Smart Function: Container Number Recognition and ISO No. Recognition
General
- Operating System: Linux
- Power: DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block; PoE: 802.3at, Type 2, Class 4, max. 15 W
- Material: Aluminum alloy
- Dimension: 428.5 mm × 120 mm × 138 mm (16.9″ × 4.72″ × 5.2″) (L × W × H)
- Package Dimension: 452 mm × 398 mm × 198 mm (17.8″ × 15.67″ × 7.8″) (L × W × H)
- Weight: Approx. 3 kg (6.61 lb.)
- With Package Weight: Approx. 5.19 kg (11.44 lb.)
- Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Storage Condition: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing)
- General Function: One-key reset, Three streams, Password protection, Heartbeat
Approval
- EMC: CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
- Safety: CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11
- Environment: WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,CE-RoHS: 2011/65/EU
- Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
- Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
