HiLook Video Intercoms, Video Intercoms
HiLook HA-KIT-IP1

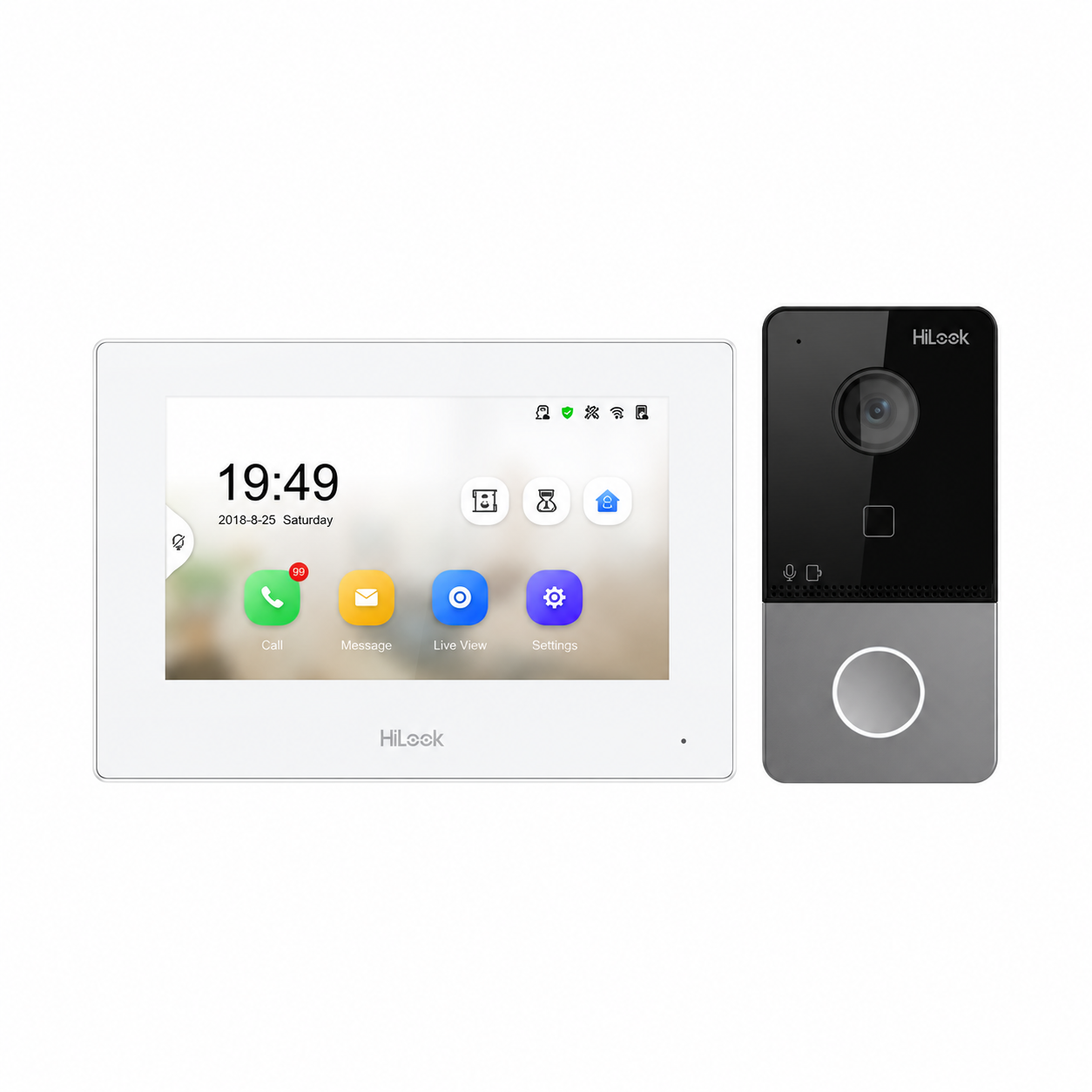

HiLook HA-KIT-IP1 Wireless PoE IP Video Intercom Kit – Boxed – Incudes 1 * 2MP Outdoor Intercom Station + 1 * 7″ (7-Inch) Indoor Touchscreen Monitor + 2 * Power Adapters – One-Lock Control – Works With Hik-connect App
SKU: HA-KIT-IP1
Categories: HiLook Video Intercoms, Video Intercoms
Tags: 1080P, 2MP, 7 inch, Camera, Display, Gate Control, Hikvision, HiLook, Intercom, IP, Kit, Monitor, Network, PoE, Touchscreen, Video Intercom, Weatherproof, White, WiFi, Wireless
HiLook HA-KIT-IP1 Wireless PoE IP Video Intercom Kit – Boxed – Incudes 1 * 2MP Outdoor Intercom Station + 1 * 7″ (7-Inch) Indoor Touchscreen Monitor + 2 * Power Adapters – One-Lock Control – Works With Hik-connect App
Key Features :-
- Convenient Hik-Connect APP Mobile Control
- One call button for easier calls
- Standard PoE power supply
- Including: Door station x1, Indoor station x1, PSU × 2
- Power adapter included in the package
- Video and audio communication via indoor monitor or mobile app
- Simple IP-based configuration and PoE support
- Touchscreen indoor panels with intuitive interface
- Compatible with HiLook and Hikvision surveillance systems
- Weatherproof outdoor door stations with built-in camera
- Visitor call, unlock, and two-way talk from anywhere
Outdoor station/System parameters
- Operation system: Embedded Linux operation system
- Flash: 32 MB
- RAM: 256MB
Outdoor station/Video parameters
- Camera: 2MP HD camera
- Night vision: Low illumination IR supplement mode:3 m
- Backlight compensation: Support
- Digital noise reduction: Support
- WDR: True WDR
- Field of view: Horizontal: 131° Vertical: 78°
- Video Compression Standard: H.264
- Stream: Main stream: 1080p @ 30fps, 720p @ 25fps; Sub stream: D1 @ 25fps
- Motion detection: Support
- Flash-avoid frequency: 50 Hz, 60 Hz
Outdoor station/Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
- Audio intercom: Two-way audio communication
Outdoor station/Network parameters
- Network protocol: TCP/IP, RSTP
- Wired network: 10/100 Mbps Ethernet
Outdoor station/Device interfaces
- RS-485: 1
- Alarm input: 4
- Debugging port: 1
- Grounding: 1
- TAMPER switch: 1
Outdoor station/General
- Power consumption: ＜ 10 W
- Working temperature: -40° C to 53° C(-40° F to 127.4° F)
- Working humidity: 10% to 95%
- Dimension: 138 mm × 65 mm × 27 mm
- Installation: Surface mounting
- Protection level: IP65
- Indicator: 2
- Power supply: IEEE802.3af, standard PoE; 12 VDC
Indoor Monitor/System parameters
- Operation system: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
Indoor Monitor/Display parameters
- Display screen: 7-inch colorful TFT screen
- Display resolution: 1024 × 600
- Operation method: Capacitive touch screen
Indoor Monitor/Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
Indoor Monitor/Network parameters
- Wired network: 10/100 Mbps self-adaptive
- Wireless network: Wi-Fi 802.11 b/g/n
- Protocol: TCP/IP, SIP, RTSP
- RS-485: 1* RJ-45 10/100 Mbps self-adaptive
Indoor Monitor/Device interfaces
- RS-485: 1
- Alarm input: 8-ch alarm inputs
- Relay output: 2
- TF card: Max to 32 G, SD 2.0 or lower version
Indoor Monitor/General
- Power consumption: ≤ 6 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90%
- Dimension (L x W x H): 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
Recommendations
- Use PoE Ethernet instead of Wi-Fi whenever possible.
- Ensure the device is connected to a 2.4 GHz Wi-Fi network (not 5 GHz).
- Assign a static IP address.
- Upgrade to the latest firmware.
