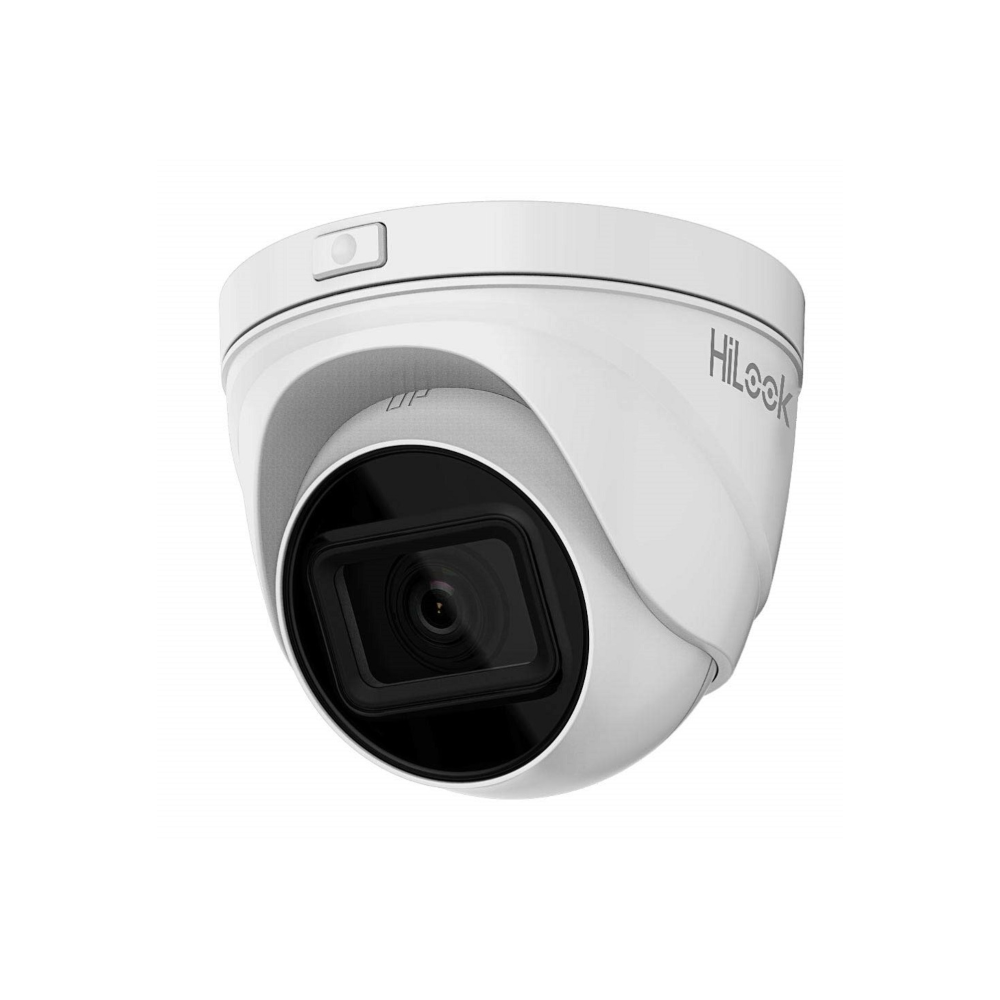

HiLook IPC-T651H-Z

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: Color: 0.01 Lux @(F1.2; AGC ON), 0.02 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100, 000 s
• Slow Shutter: Yes
• Day &Night: IR cut filter
• Wide Dynamic Range: 120 dB
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

Lens

• Lens: 2.8 to 12 mm
• Aperture: F1.6
• FOV: Horizontal FOV: 98° to 28°, vertical FOV: 71° to 21°, diagonal FOV: 130° to 35°
• Lens Mount: M14

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850 nm

Video

• Max. Resolution: 2560 × 1920
• Main Stream: 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720);60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression: Main stream: H.265/H.264;Sub stream: H.265/H.264/MJPEG
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Video Bit Rate: 32 Kbps to 8 Mbps

Smart Feature-Set

• Region Of Interest: 1 fixed region for main stream and sub-stream


• Image Enhancement: BLC, 3D DNR
• Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, scheduled, day, night

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Client: HiLookVision PC Client, HiLookVision App
• Web Browser: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Interface

• Communication Interface: 1 RJ45 self-adaptive Ethernet port

General

• Firmware Version: 5.5.52
• General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions:-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)
• Power Consumption And Current: 12 VDC, 0.9 A, max. 11 W; PoE (802.3af, 36 to 57 V), 0.4 A to 0.3 A, max. 12.5 W
• Material: Camera body: metal, bottom base: plastic
• Dimensions: Camera: Ø 129.4 mm × 116.4 mm (5.1″ × 4.6″);With package: 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
• Weight: Camera: 450 g (1 lb.);With package: 850g (1.9 lb.)
