iSecure AC-12DC5A-BAT7AH

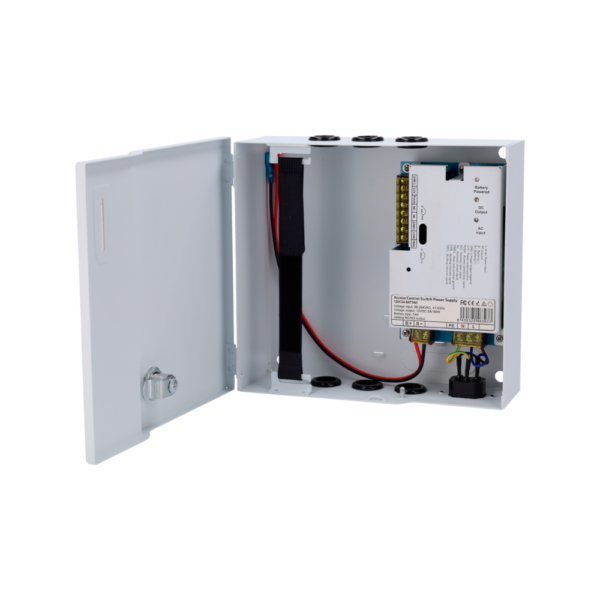

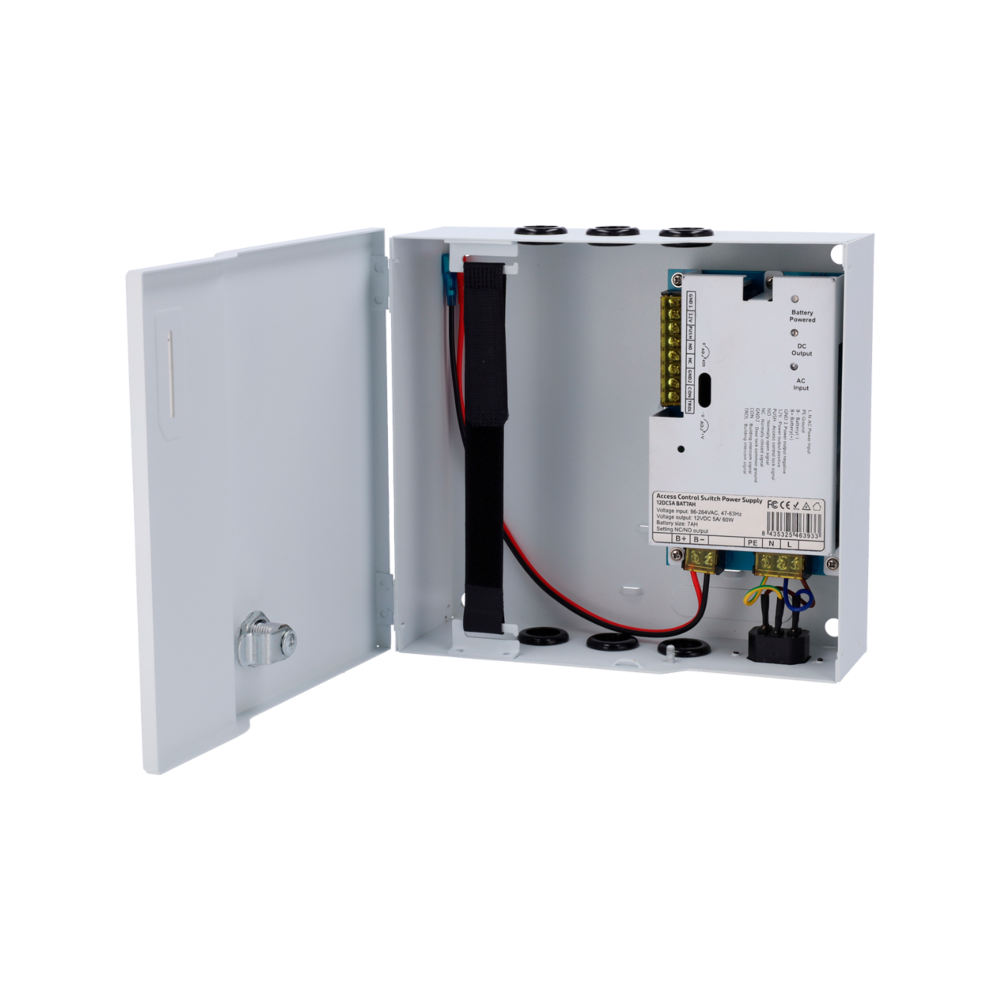

iSecure AC-12DC5A-BAT7AH 5A Access Control Power Distribution Cabinet – Metal Casing – With Battery Slot – 230vAC Input – Adjustable 11VDC-14VDC 5A Output – NO/NC Configurable
SKU: AC-12DC5A-BAT7AH
Categories: Access Control, Access Control Accessories, Batteries, Power Supplies & UPSs
Tags: Access Control, Cabinet, Distribution, iSecure, Power Supply
iSecure AC-12DC5A-BAT7AH 5A Access Control Power Distribution Cabinet – Metal Casing – With Battery Slot – 230vAC Input – Adjustable 11VDC-14VDC 5A Output – NO/NC Configurable
Key Features :-
- Power supply distribution cabinet in metal casing
- Exclusive for access control
- Input AC 96-264 V
- Output DC 11-14 V rated at 5A
- Backup battery of 7Ah
- Can be configured as NC/NO
- Built-in adjustable unlocking potentiometer, range of 0-45s
- Control of various types of electric locks
- Input power: AC 96–264V (47/63 Hz)
- Output power: DC 11V–14V rated at 5A (60W)
- Backup battery compatibility: 12V / 7Ah sealed lead-acid battery (usually sold separately)
- Lock configuration: Configurable NO/NC (Normally Open / Normally Closed)
- Lock release delay: Adjustable potentiometer from 0 to 45 seconds
- Operating temperature: -20ºC to +45ºC
- Dimensions: 187 x 193 x 90 mm
- Casing: Metal box with lock (surface mounting)
