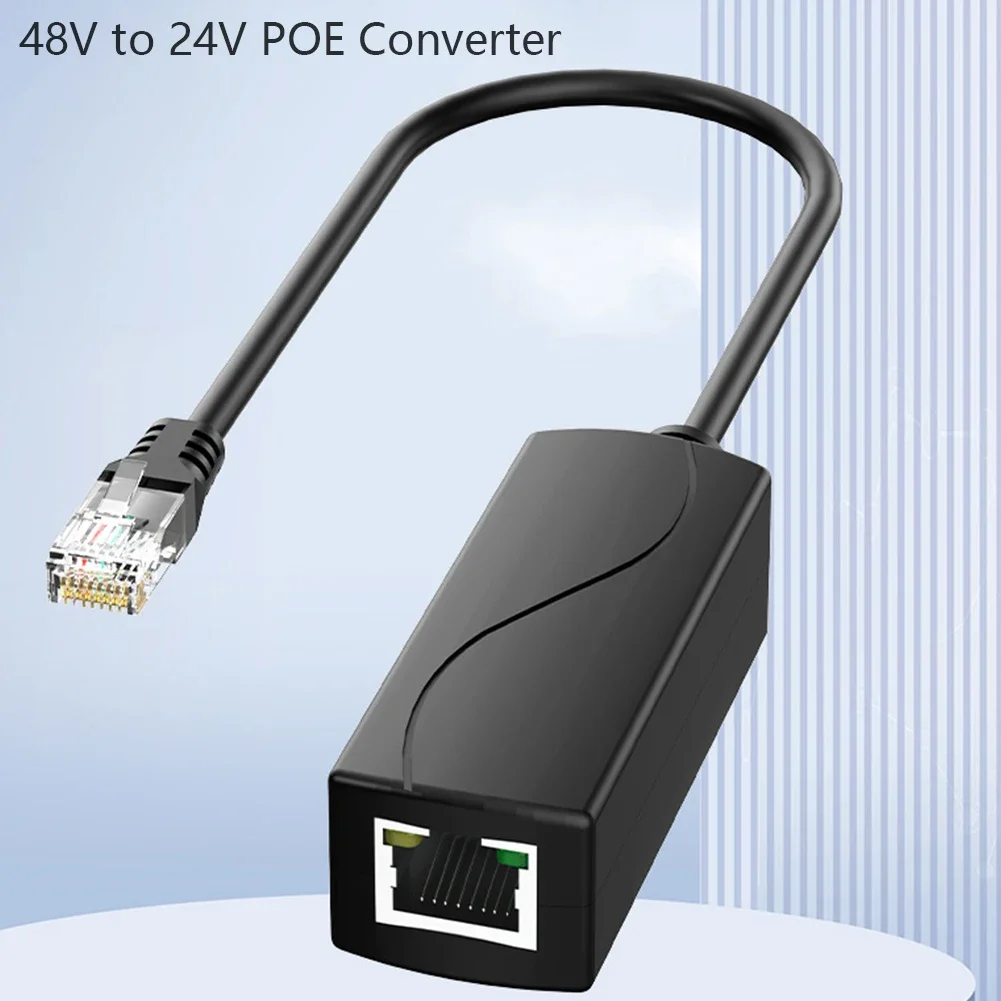

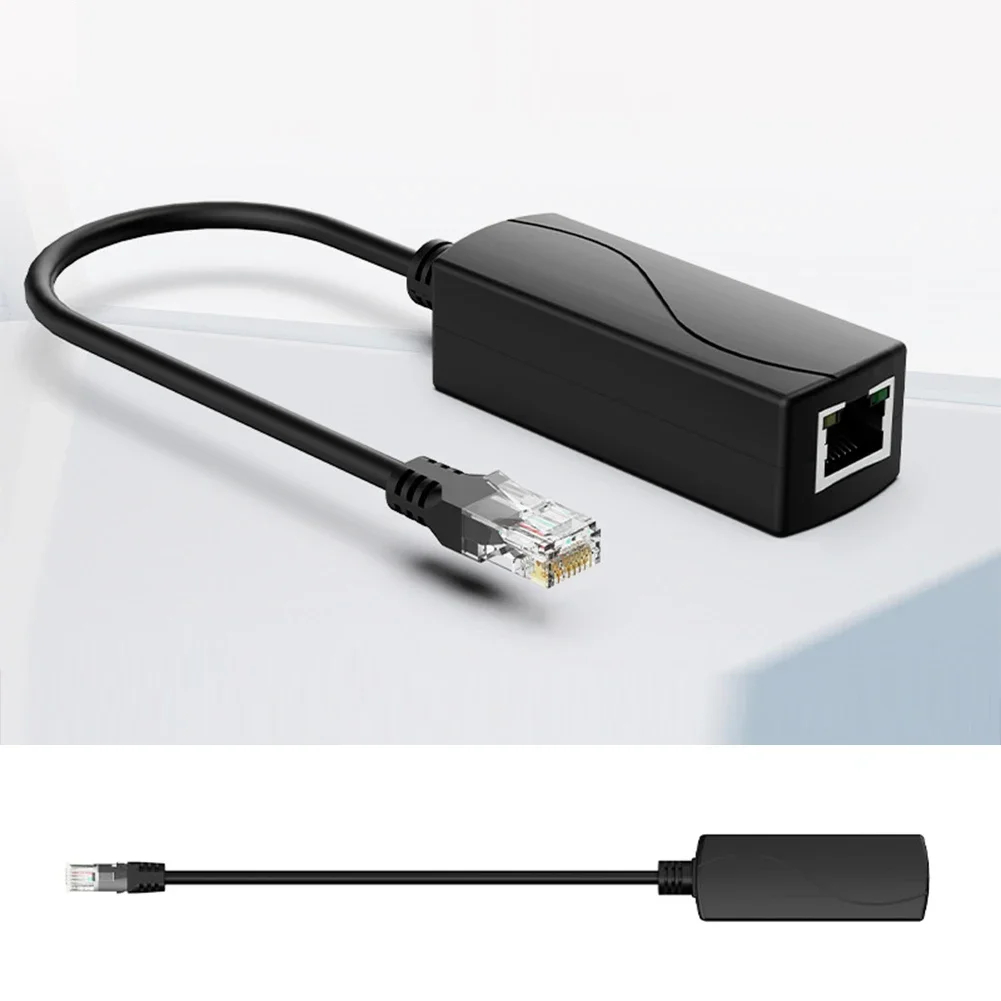

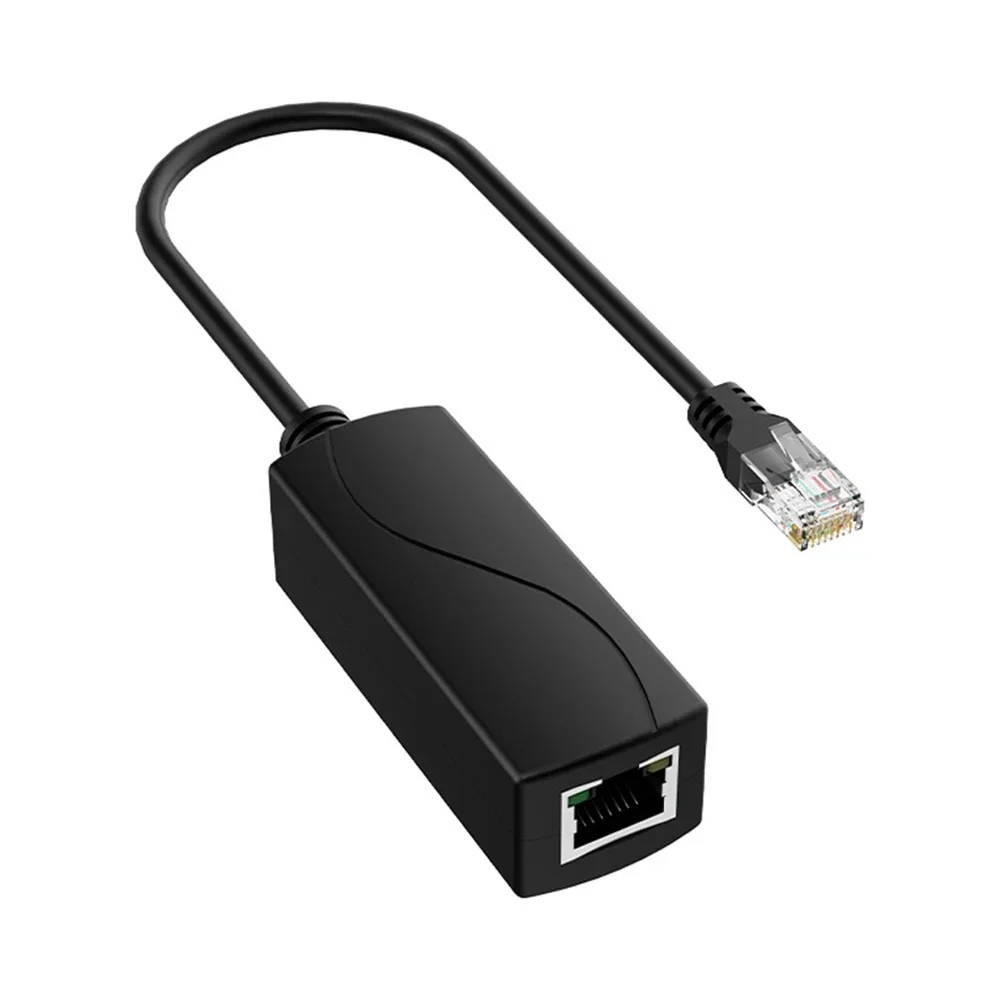

iSecure ICL-48VDC24VDCPOE-Converter

iSecure ICL-48VDC24VDCPOE-Converter – 802.3af/at 1000Mbps GbE PoE 48VDC To 24VDC PoE Converter – Input 44-57VDC RJ45 Port Output 24VDC/1A – Converter for Passive 24VDC PoE Devices

Key Features :-

• POE protocol [input]: IEEE802.3af/at

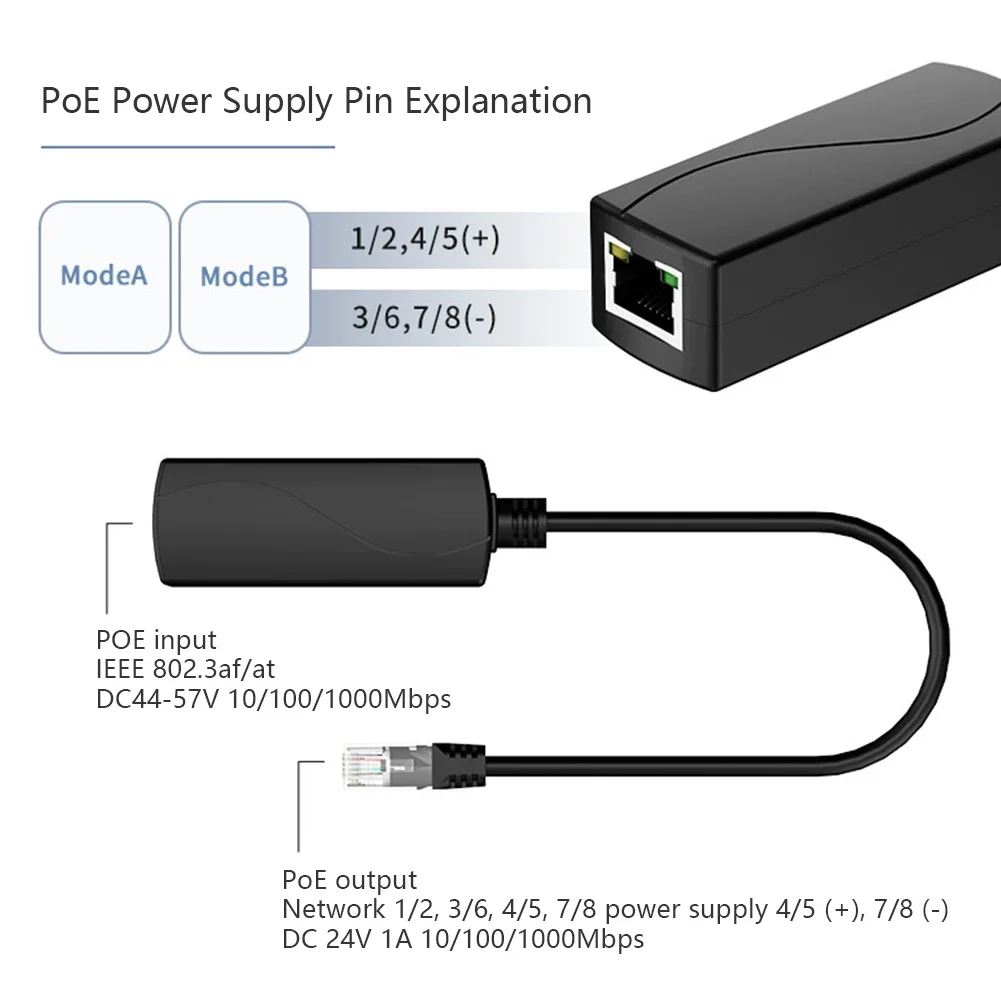

• Power line sequence [input terminal]: 1/2 (+) 3/6 (-) or 4/5 (+) 7/8 (-)
• POE input voltage: DC44-57V
• POE output voltage: DC24V
• Power line sequence [output terminal]: 4/5 (+) 7/8 (-)
• Transmission rate: 10/100/1000Mbps
• Conversion efficiency: ≥ 95%
• Working temperature: -20 ℃~60 ℃

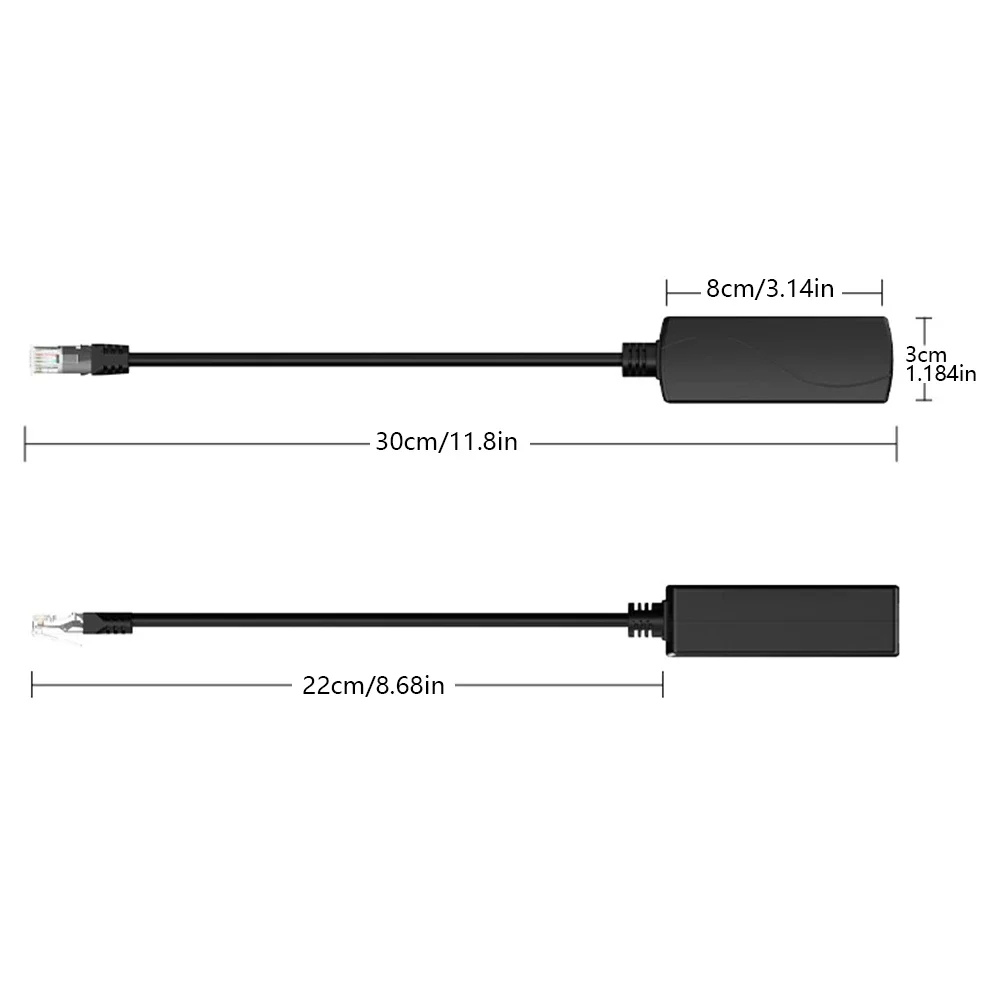

• Appearance size: 80x30x23mm
• Line length: 220mm
• Material: PVC
