Lenkeng LKV712PRO

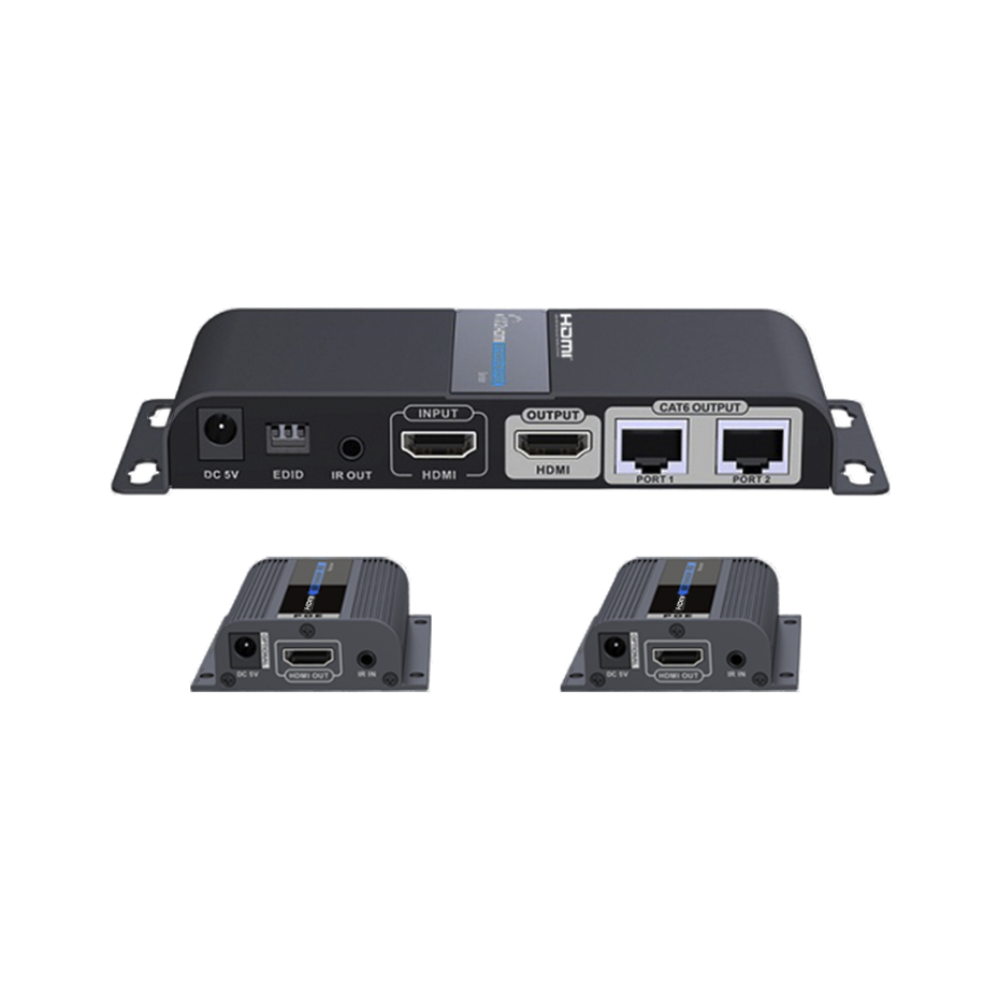

Lenkeng LKV712PRO 1-In-2-Out 1080P HDMI Extender Splitter Kit – Includes 1 * Transmitter + 2 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance
SKU: LKV712PRO
Categories: Audio & Visual, HDMI Extenders, HDMI Products, HDMI Splitters
Tags: 1-In-2-Out, 1080P, CAT6, Extender, HDMI, Kit, Lenkeng
Lenkeng LKV712PRO 1-In-2-Out 1080P HDMI Extender Splitter Kit – Includes 1 * Transmitter + 2 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance
Key Features :-
- Support EDID
- Plug and play
- Supports one HDMI Loop-out
- Supports 20~60KHz IR pass back
- Wall-mounted function, easy installation
- Compatible with CAT6/6a/7 network cables
- The transmission distance is 40m/131ft
- The highest resolution is up to 1920×1080 @ 60Hz
- Supports power from the transmitter to receiver unit over the CAT6 cable
- Distributes 1x HDMI source to 2x HD displays over network cable simultaneously
| Part No. | LKV712PRO |
| Technical | |
| Input | HDMI × 1 ( Type A, 19 pin, female) |
| Output | RJ45 × 2 |
| Working mode | Should work together with LKV372POE Receiver units |
| Transmission distance | 40 meters via CAT6 |
| Video support | 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz |
| Audio format | PCM DTS AC3 |
| TMDS signal | 0.5～1.5Vp-p (TMDS) |
| DDC signal | 5Vp-p (TTL) |
| IR passback function | Support |
| IR frequance Range（KHz） | Support 20～60KHz IR frequency devices |
| HDMI loopout | Support |
| POT (receiver powered from transmitter) | Support |
| HDCP | HDCP1.2 |
| Mechanical | |
| Housing | Metal enclosure |
| Dimensions (L×W×H mm) | LKV714 Transmitter unit: 157.8×62×21.6 mm; LKV372POE-RX: 71.6×66.6×22.6mm |
| Net weight | TX:620g, RX:80g |
| Fixedness | wall-mounting case with screws |
| Power supply | 5V/2A |
| Power consumption | <10W |
| Operation temperaure | 0~60° |
| Storage temperature | —20~70° |
| Relative humidity | 20-90%（no condensation）
|
