Lenkeng LKV718PRO

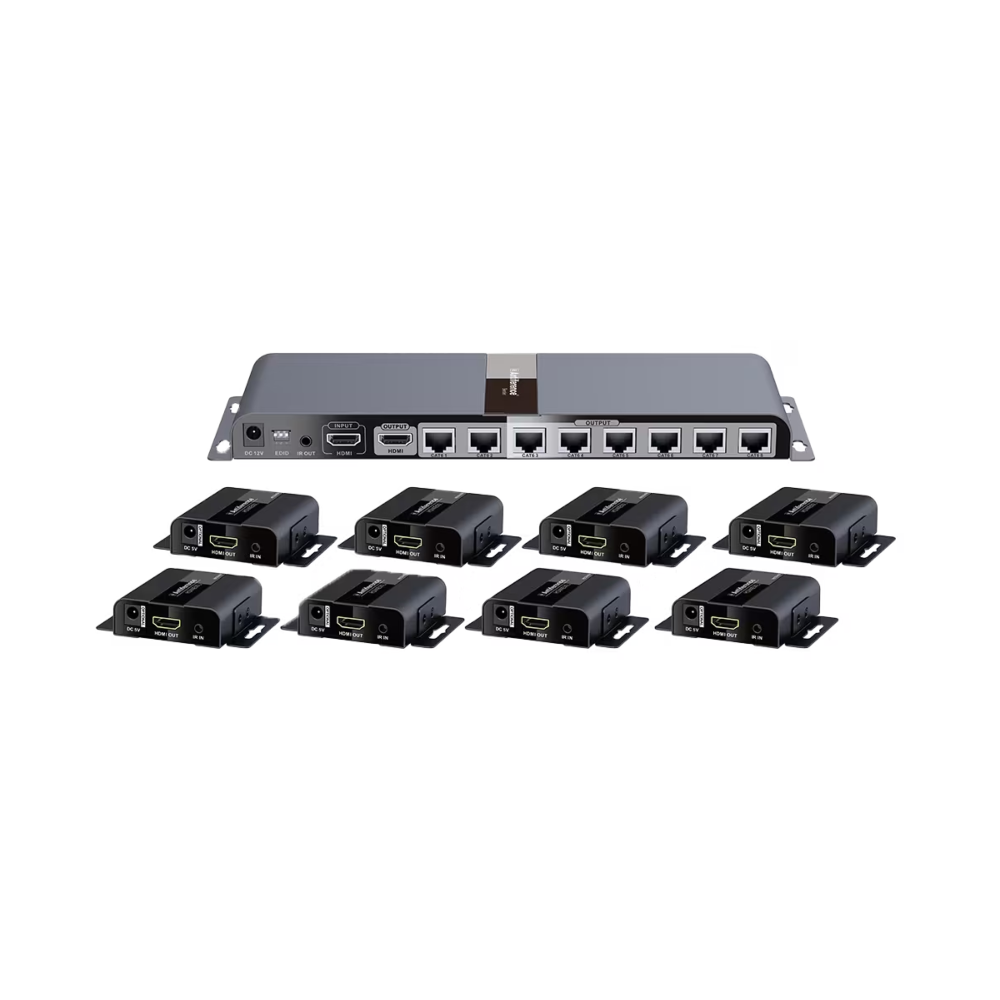

Lenkeng LKV718PRO 1-In-8-Out 1080P HDMI Extender Splitter Kit – Includes 1 * Transmitter + 8 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance
SKU: LKV718PRO
Categories: Audio & Visual, HDMI Extenders, HDMI Products, HDMI Splitters
Tags: 1-In-8-Out, 1080P, CAT6, Extender, HDMI, Kit, Lenkeng
Lenkeng LKV718PRO 1-In-8-Out 1080P HDMI Extender Splitter Kit – Includes 1 * Transmitter + 8 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance
Key Features :-
- Support EDID
- Plug and play
- Supports one HDMI Loop-out
- Supports 20~60KHz IR pass back
- Wall-mounted function, easy installation
- Compatible with CAT6/6a/7 network cables
- The transmission distance is 40m/131ft
- The highest resolution is up to 1920×1080 @ 60Hz
- Supports power from the transmitter to receiver unit over the CAT6 cable
- Distributes 1x HDMI source to 8x HD displays over network cable simultaneously
| HDMI signal | HDMI1.3, Compatible with HDCP1.2 |
| Input | 1 x HDMI |
| Output | 8 x HDMI |
| Support resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Transmit distance | Full HD resolution 1080p@60Hz up to 40m via Cat6 cable |
| IR signal | Support 20 ~ 60kHz IR device |
| EDID | Support EDID manual setting function |
| Working temperature | 0℃ ~ 60℃ |
| Power supply | DC12V/3A |
| Power Consumption | <24W |
| Dimensions | TX: 276(L) x 95.98(W) x 23(H)mm RX: 71.6 x 66.6 x 22.6mm |
| Weight | TX: 620g x 1pcs RX: 80g x 8pcs |
| Colour | Black |
