Nemesis EVAQEX20M-FLSIL/SS

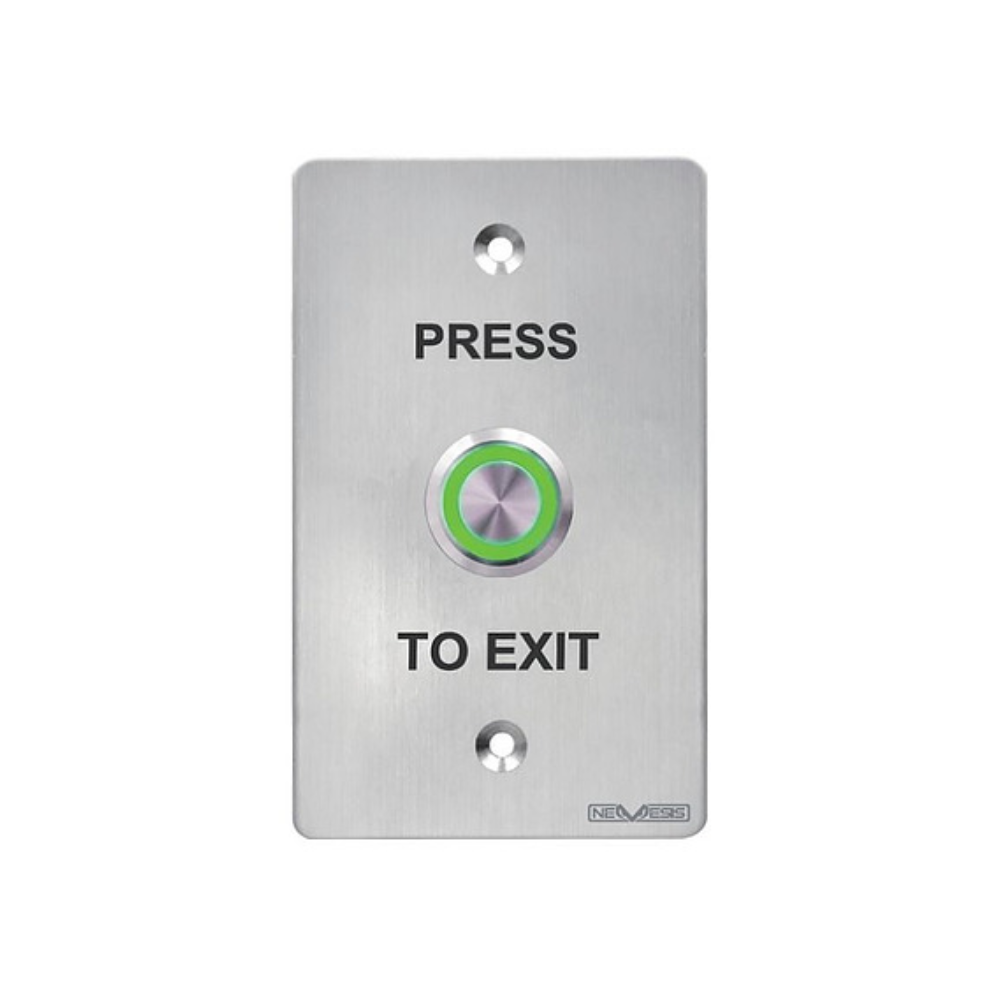

Nemesis EVAQEX20M-FLSIL/SS IP66-Rated Weatherproof Stainless Steel “Press To Exit” SPDT Push-Button / Switch for Access Control – Green LED Indicator
Nemesis EVAQEX20M-FLSIL/SS IP66-Rated Weatherproof Stainless Steel “Press To Exit” SPDT Push-Button / Switch for Access Control – Green LED Indicator
Key Features :-
- Panel: Stainless steel, 304 grade, 1.7mm thick, laser etched text
- Dimensions: 115H x 70W x 40D (mm)
- Ingress Rating: IP66
- Button: Stainless Steel, illuminated
- Output Contact: 1x NO & 1x NC
- Power: 12-24V DC (for LED only)
- LED Actuator: Green LED (standby), Green LED (active)
- Mechanical Life: 500,000 Operations
- Operating Temperature: -20°C to +55°C
- Operating Humidity: 0-95% (relative humidity)
- Weight: 140g
- Fixing Method: 2x 3mm stainless steel screws (included)
- Panel: Stainless steel, 304 grade, 1.7mm thick, laser etched text
- Dimensions: 115H x 70W x 40D (mm)
- Button: Stainless steel, illuminated Output Contact: 1x NO & 1x NC
- Mechanical Life: 500,000 Operations
- Ingress Rating: IP66
- LED Actuator: Green LED (standby), Green LED (active)
- Power: 12-24V DC (for led only)
- Operating Temperature: -20˚C to +55˚C
- Operating Humidity: 0-95% (relative humidity)
- Weight: 140g
- Fixing Method: 2x3mm stainless steel screws (included)
- Mount Style: Flush – fits standard flush boxes
