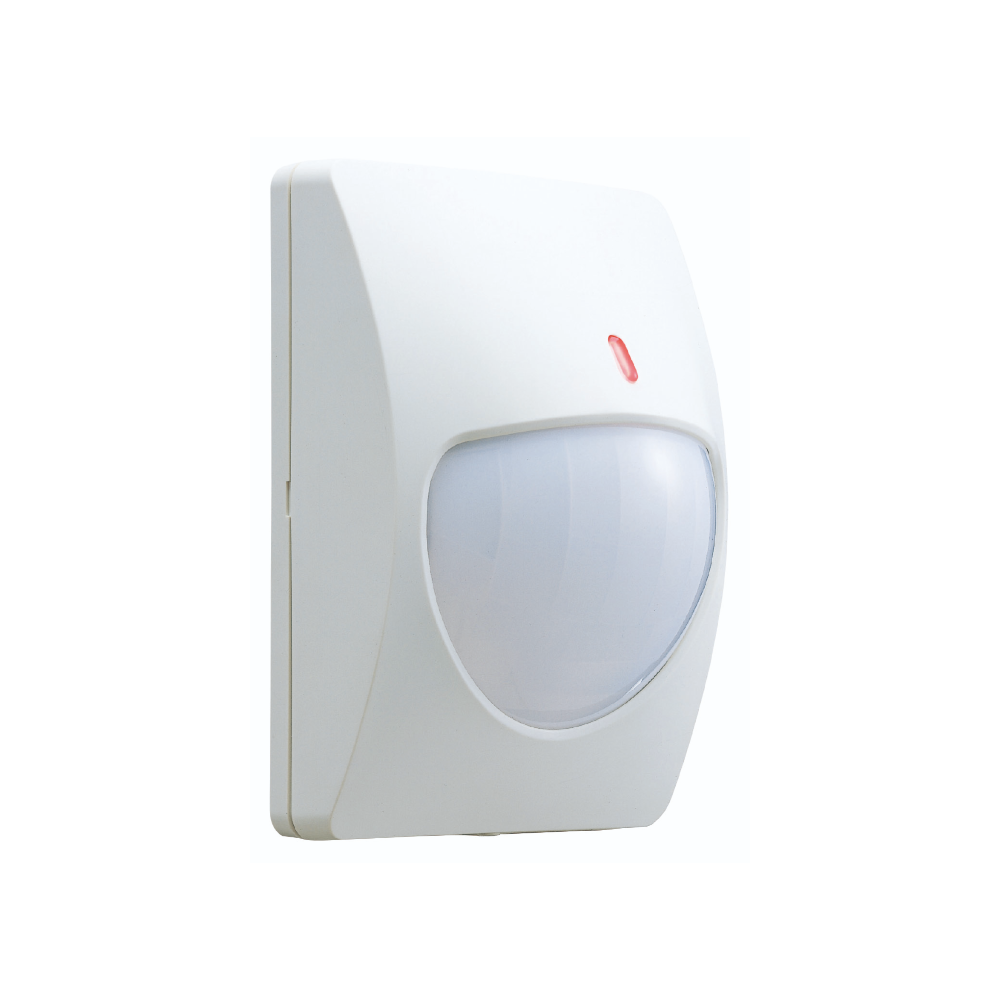

Optex CX-702 Wired Alarm / Intrusion Indoor Long-Range PIR Detector For Harsh Envoronments - Supports Up To 45m Range

Intrusion & Alarms, Wired Alarm Detectors, Wired Alarm PIR Detectors, Wired Alarms

Optex CX-702

Name: Optex CX-702
SKU: CX-702

Optex CX-702 Wired Alarm / Intrusion Indoor Long-Range PIR Detector For Harsh Envoronments – Supports Up To 45m Range

SKU: CX-702 Categories: Intrusion & Alarms, Wired Alarm Detectors, Wired Alarm PIR Detectors, Wired Alarms Tags: Alarm, Detector, Indoor, Intrusion, Optex, PIR, Wired

Optex CX-702 Wired Alarm / Intrusion Indoor Long-Range PIR Detector For Harsh Envoronments – Supports Up To 45m Range

Key Features :-

21m wide-angle OR 45m long-range detection
Completely sealed optics
Double conductive shielding of Pyro Electric Element
Dual purpose lens
Easy double knockout
Easy to view LED
Sufficient space for wiring

Optex Product-Link

Model	CX-702	CX-702MKII	CX-702RS
PIR coverage / Detection zones	WIDE : 21 m x 21 m 85° 68 zones LONG : 45 m x 2.4 m 22 zones	WIDE : 21 m x 21 m 90° 136 zones LONG : 45 m x 10 m 44 zones	WIDE : 21 m x 21 m 85° 68 zones LONG : 45 m x 2.4 m 22 zones
Sensitivity	1.6°C at 0.6 m/sec. at 2.4 m mounting height	1.6°C at 0.6 m/sec. at 2.4 m mounting height	1.6°C at 0.6 m/sec. at 2.4 m mounting height
Detectable speed	0.3 to 1.5 m/sec.	0.3 to 1.5 m/sec.	0.3 to 1.5 m/sec.
Power supply	9.5 to 16 VDC	9.5 to 16 VDC	3 to 9 VDC alkaline batttery or lithium battery
Current consumption	11 mA (max.) at 12 VDC	11 mA (max.) at 12 VDC	5 μA (standby) 10 mA (walktest, LED on)
Alarm period	Approx. 2.5 sec.	Approx. 2.5 sec.	Approx. 2.5 sec.
Alarm output	N.C. 28 VDC 0.2 A max.	N.C. 28 VDC 0.2 A max.	Form C 10 VDC 0.0 1A max.
Alarm interval	–	–	Succeeding signals are not output even though detection occurs within 2 min. after the first alarm.
Tamper switch	N.C, opens when cover is removed. 28 VDC 0.1 A max.	N.C, opens when cover is removed. 28 VDC 0.1 A max.	Form C 28 VDC 0.1 A max.
Pulse count	Approx. 20 sec. 2 or 4	Approx. 20 sec. 2 or 4	Approx. 20 sec. 2 or 4
Warm-up period	Approx. 60 sec.	Approx. 60 sec.	Approx. 90 sec.
LED indicator	Alarm condition	Alarm condition	Alarm condition
Operating temperature	-20°C to +50°C	-20°C to +50°C	-10°C to +50°C
Environmental humidity	95% max.	95% max.	95% max.
RF interference	No Alarm 30 V/m	No Alarm 30 V/m	No Alarm 20 V/m
Mounting height	1.5 to 3.6 m	1.5 to 3.6 m	1.5 to 3.6 m
Weight	200 g	200 g	200 g
Dimensions (H x W x D)	140 mm x 100 mm x 69 mm	140 mm x 100 mm x 69 mm	140 mm x 100 mm x 69 mm

CX-702_702RS_catalog

Data-sheet

User Manual
