Access Control, Automation & Control, Gate Automation, Gate Automation Accessories, Gateway

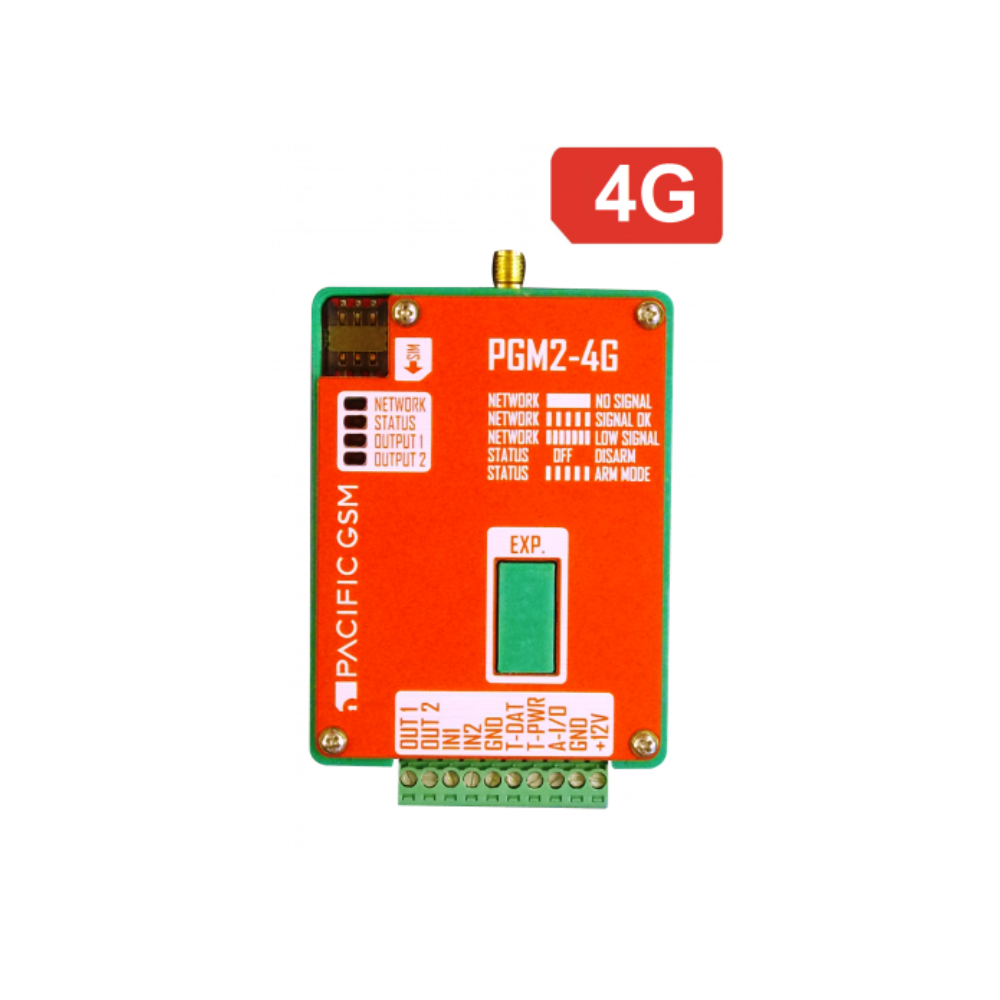

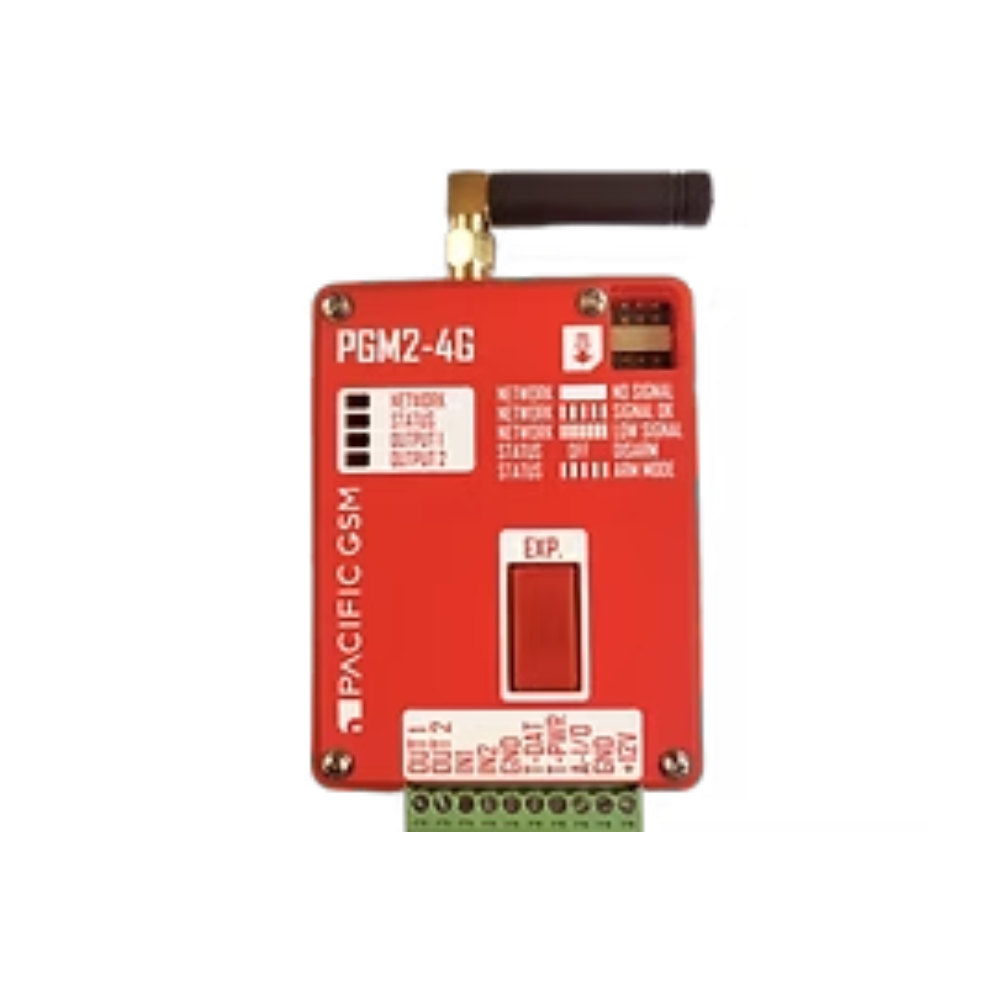

Pacific GSM PGM2-4G-Controller
Pacific GSM PGM2-4G-Controller – 4G LTE Communicator – Multifunction Use Incl Remote Opening of Garage Doors, Gates, Controllers etc – Supports Timer Function
Pacific GSM PGM2-4G-Controller – 4G LTE Communicator – Multifunction Use Incl Remote Opening of Garage Doors, Gates, Controllers etc – Supports Timer Function
Key Features :-
- 4G LTE connectivity
- SMS notifications
- SMS command control
- Call-triggered output activation
- Up to 10 authorized phone numbers
- DIN-rail or screw mounting
- Configurable inputs and outputs
- USB programming software
- Information SMS in case of exceeding the set temperature or the temperature drops below the set limit.
- 2 outputs with multiple configuration options. Activation via TXT or call with timer option, siren, arm mode indication etc.
- Device Status, you can always check the status via SMS.
- Package Includes – 1* PGM2-4G Controller + 1* Antenna + 1 * USB Cable + 1* Manual
- Operates well with One NZ & 2Degrees Mobile Networks within New Zealand
Applications Scenario
Security & Alarm Monitoring
- Intruder alarm signalling
- Remote alarm notifications via SMS
- Arming/disarming alarm systems
- Monitoring alarm panel outputs (PGMs)
- Panic and emergency alert systems
Gate & Door Control
- Opening entrance gates from a mobile phone
- Garage door control
- Access control for remote sites
- Boom gate operation for farms and commercial premises
Building Automation
- Remote lighting control
- HVAC control
- Pump switching
- Irrigation control
- Generator start/stop functions
Industrial & Infrastructure Monitoring
- Equipment fault monitoring
- PLC status monitoring
- Server room alarms and remote reboot functions
- Power failure monitoring
- Backup battery voltage monitoring
Tank & Water Management
- Water tank low-level alarms
- Pump failure notifications
- Bilge pump monitoring on boats
- Flood detection
- Liquid overflow alarms
Temperature Monitoring
- Refrigeration monitoring
- Cool room alarms
- Freezer temperature alerts
- Plant room monitoring
- Thermostat control using the temperature sensor input
Solar & Off-Grid Systems
- Battery voltage monitoring
- Solar system fault alarms
- Remote reset of equipment
- Monitoring power availability at remote sites
| Power supply | 5V DC- 15V DC | |
|---|---|---|
| Power consumption | approx 20 mA 12V , max. 1000mA 12V | |
| Frequency bands | Global Coverage
LTE (4G) B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B34/B38/B39/B40/B41/B66 |
|
| Input 1-2 | activated by GND connection or disconnection | |
| Output 1-2 | transistor open collector with load max 100 mA 12V | |
| Output switching time in impulse mode | adjustable from 1s to 24 h with an increment of 1 s | |
| Expander | Expander for additional modules inputs, outputs, relays, LCD etc. | |
| Input for temperature sensor | max. connection length 5 m, measurement range -55 °C to 125 °C | |
| Operating temperature range | -20 to +50 °C | |
| Ingress protection class | IP20 | |
| Dimensions (without the antenna) | 93 x 61 x 20 mm | |
| In conformity with | EN 55032:2015 Class B, EN 55024:2010, EN 61000-4-2:2008, Performance Criterion B, EN 61000-4-3:2006, Performance Criterion A, EN 61000-4-4:2013, Performance Criterion B, EN 61000-4-6:2014, Performance Criterion A, AS/CA S042-2015 |
