TheFireBeam Extra

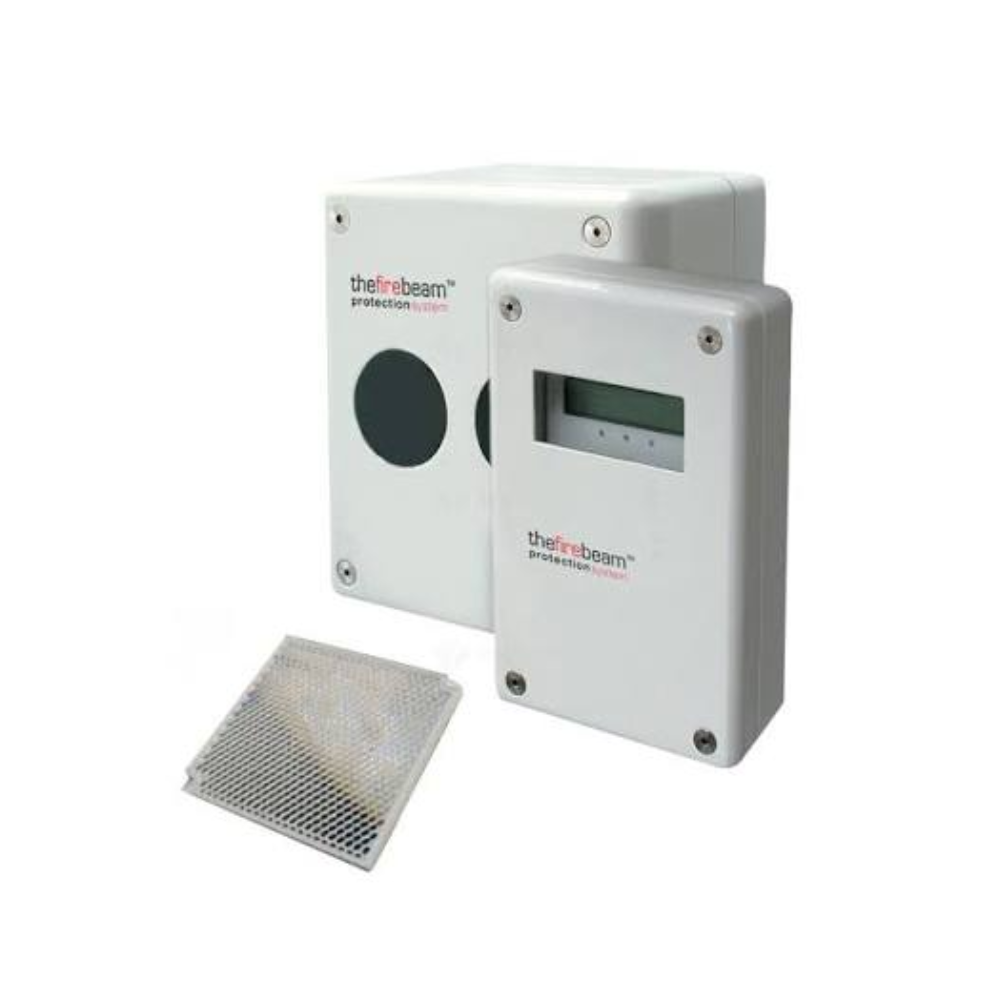

TheFireBeam Extra Optical Beam Smoke Detector with Low-Level Wired Controller Kit – Up To 70m Fire/Smoke Detection – Kit Includes 1* Head Unit + 1* Controller + 1* Reflector + 1* Allen Key + 1* User Guide
TheFireBeam Extra Optical Beam Smoke Detector with Low-Level Wired Controller Kit – Up To 70m Fire/Smoke Detection – Kit Includes 1* Head Unit + 1* Controller + 1* Reflector + 1* Allen Key + 1* User Guide
Developed to overcome the problems of old outdated technology in beam detection, this motorised beam now means that beam detection can now be used reliably to produce cost effective solutions for protecting large areas. Building movement and accessibility have in the past, made beam detection unreliable, difficult, time consuming to commission and hard to maintain, but now by using the advanced motorised technology of thefirebeam unreliability is no longer a problem. thefirebeam will self align itself to the centre of the reflector when commissioning and will automatically keep alignment with the reflector when building movement occurs. This intelligent motorisation will mean less false alarms therefore saving time, resources, reputations and ultimately money.
Key Features :-
- 160-Metre Range: Enhanced optics allow coverage up to 160 metres using extension kits, removing the need for two separate beams over 100 metres.
- IP65 Enclosure: Sealed against water jets and dust, making it safe for wash-down environments like food processing plants and protecting internal components from pests.
- Ground-Level Controller: Allows full commissioning, testing, status checks, and threshold adjustments from eye level on the ground.
- Continuous Auto-Correction: Intelligently tracks and adjusts alignment back to the center if building movement occurs.
- Easy Clean Design: Flat surfaces allow safe cleaning of the face from ground level without knocking internal enclosed optics out of alignment.
- Motorised Beam that self-aligns.
- If the roof is flat the FireBeam Xtra system can be placed anywhere under the roof between 0.3m and 0.6m below the roof, up to a maximum height of 40m from the Floor (A roof is considered flat unless the height of the apex is greater than 0.6m).
- The FireBeam Xtra has a detection area of 7.5m either side of the beam.
- If the roof is considered to have an apex, place the FireBeam Xtra system 0.3m to 0.6m down from the top of the apex, up to a maximum height of 40m from the floor.
- The maximum protected area either side of the beam can be extended by 1% for every degree of roof pitch (please check with your local regulations).
- If the site gets condensation and / or Fog a Anti Fog kit should be added.
- Fully compliant with building code.
- Two Year warranty.
| Electrical Specifications: | |
|---|---|
| Supply Voltage | 10.2 to 30 VDC |
| Supply Current | 3.5mA (constant current) in all operational states |
| Constant Current | 17mA (constant current) in fast commissioning |
| Environmental Specifications: | |
| Temperature | -10°C to +55°C |
| Humidity | 10 to 95% RH Non-condensing |
| Protection Index | IP65 when suitably mounted and terminated |
| Mechanical Specifications: | |
| Beam Head | H:180mm x W:155mm x D:137mm – Weight 1.1kg |
| Controller | H:185mm x W:120mm x D:62mm – Weight 0.55kg |
| 70-140 Distance Kit | H:293mm x W:293mm x D:5mm – Weight 0.8kg |
| 140-160 Distance Kit | H:394mm x W:394mm x D:5mm – Weight 1.8kg |
| Unistrut Adapter | H:270mm x W:250mm x D:5mm – Weight 0.6Kg (mounts the Beam Head onto Unistrut) |
| Optical Specifications: | |
| Optical Wavelength | 870nm |
| Maximum Angular Alignment | ±5° |
| Maximum Angular Misalignment | (static not auto-aligning) Beam Head ±0.75° / Reflector ±2° |
| Operational Specifications: | |
| Protection Range | |
| Fire Beam Xtra | As standard up to 70 metres |
| 70-140 Distance Kit | 70 to 140 metres |
| 140-160 Distance Kit | 140 to 160 metres |
| Alarm Sensitivity Levels | |
| 25% (1.25dB) to 50% (3dB) in 1% (0.05dB) increments (default 35% (1.87dB)) | |
| Alarm Condition: | |
| Obscuration drops to below pre-defined sensitivity level. | |
| Time to Alarm Condition adjustable between 2 to 30 seconds in 1 second increments (default 10 seconds) | |
| Alarm Indication: | |
| Controller Status – FIRE | |
| Controller Red Flashing LED | |
| Head Red Flashing LED | |
| Alarm Relay Change Over (CO) Contact | |
| Rating 2A @ 30 VDC | |
| Test / Reset Features: | |
| Beam test function by controller | |
| Alarm latching / auto-reset selectable (default auto-reset) | |
| Alarm reset in latching mode by controller reset function, removing power for >5 seconds, apply 12 to 24 VDC to reset connections in Beam Head. | |
| Fault Sensitivity Level: | |
| 90% | |
| Fault Condition: | |
| Obscuration drops to below the fault sensitivity level within 1 second | |
| Power Down or Supply Voltage < 9 VDC | |
| Commissioning modes, Pre-Alignment and Auto-Alignment | |
| Beam turned off during Beam Maintenance | |
| Time to Fault Condition adjustable, 2 to 60 seconds in 1 second increments (default 10 seconds) | |
| Fault Indication: | |
| Controller Status – FAULT | |
| Controller Yellow Flashing LED 1 Second | |
| Head Yellow Flashing LED 1 Second | |
| Fault Relay Change Over (CO) Contact Rating 2A @ 30 VDC | |
| Normal Condition: | |
| Obscuration level is above the Alarm sensitivity level | |
| Controller Status – NORMAL | |
| Controller Green Flashing LED | |
| Programmable on/off | |
| Head Green Flashing LED | |
| Programmable on/off | |
| Auto-Align / Beam Contamination Compensation: | |
| Auto-align during normal operation if obscuration drops below 90% for the duration of the align time set (doesn’t affect normal operating mode) | |
| Beam Contamination Compensation 4 hour monitoring. Compensation data available at the controller | |
