TP-Link VIGI InSight S345S 4MM

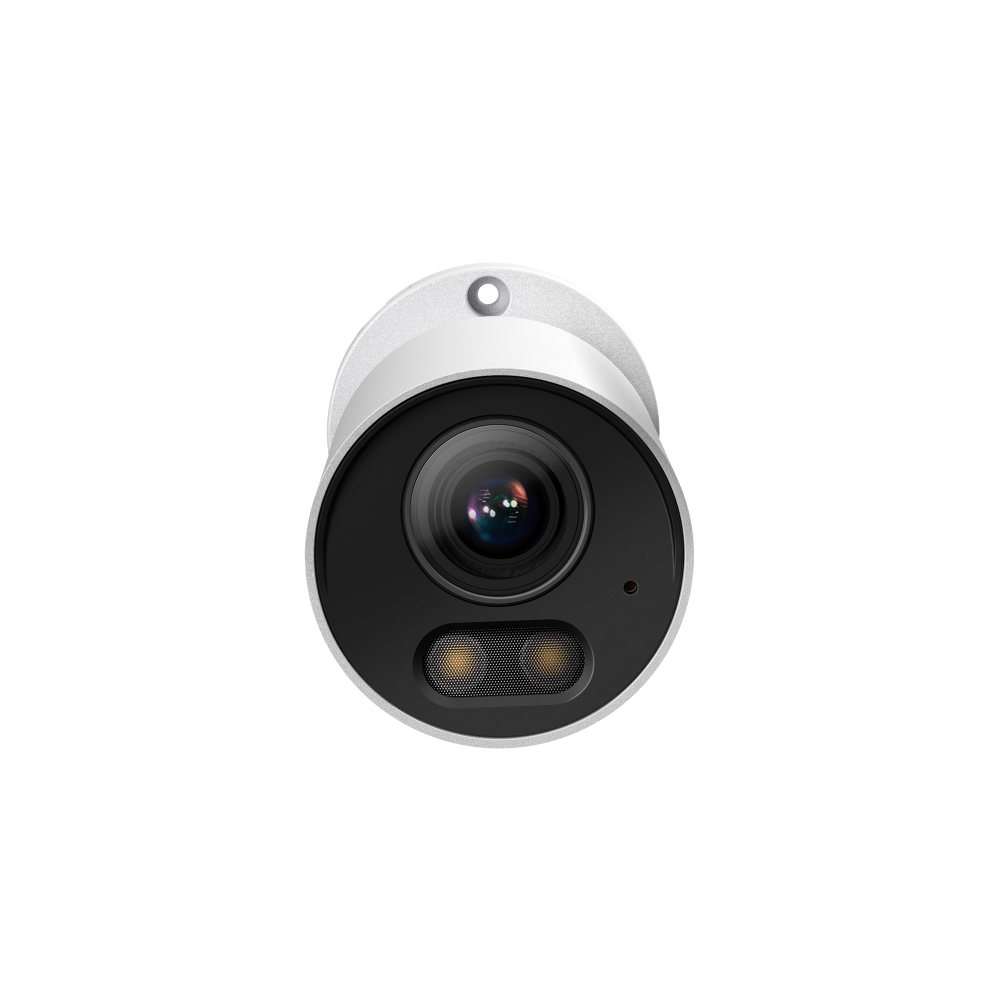

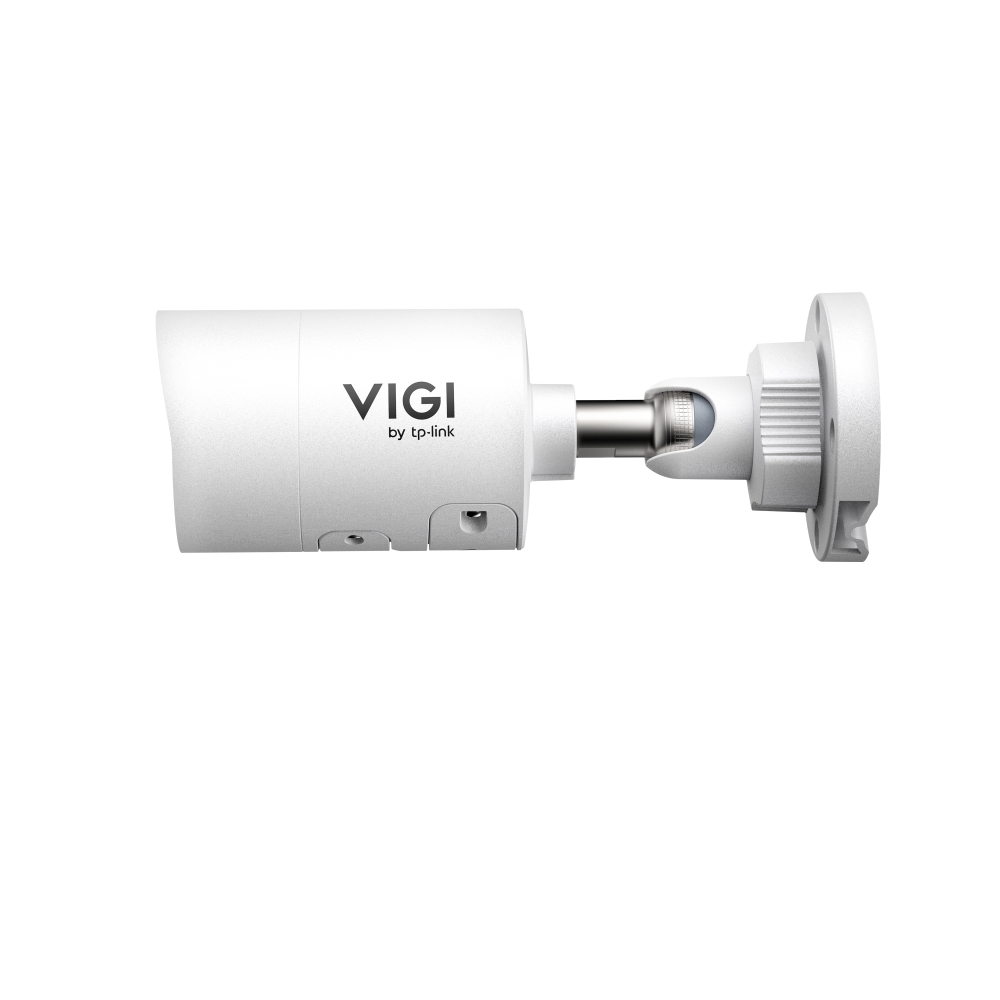

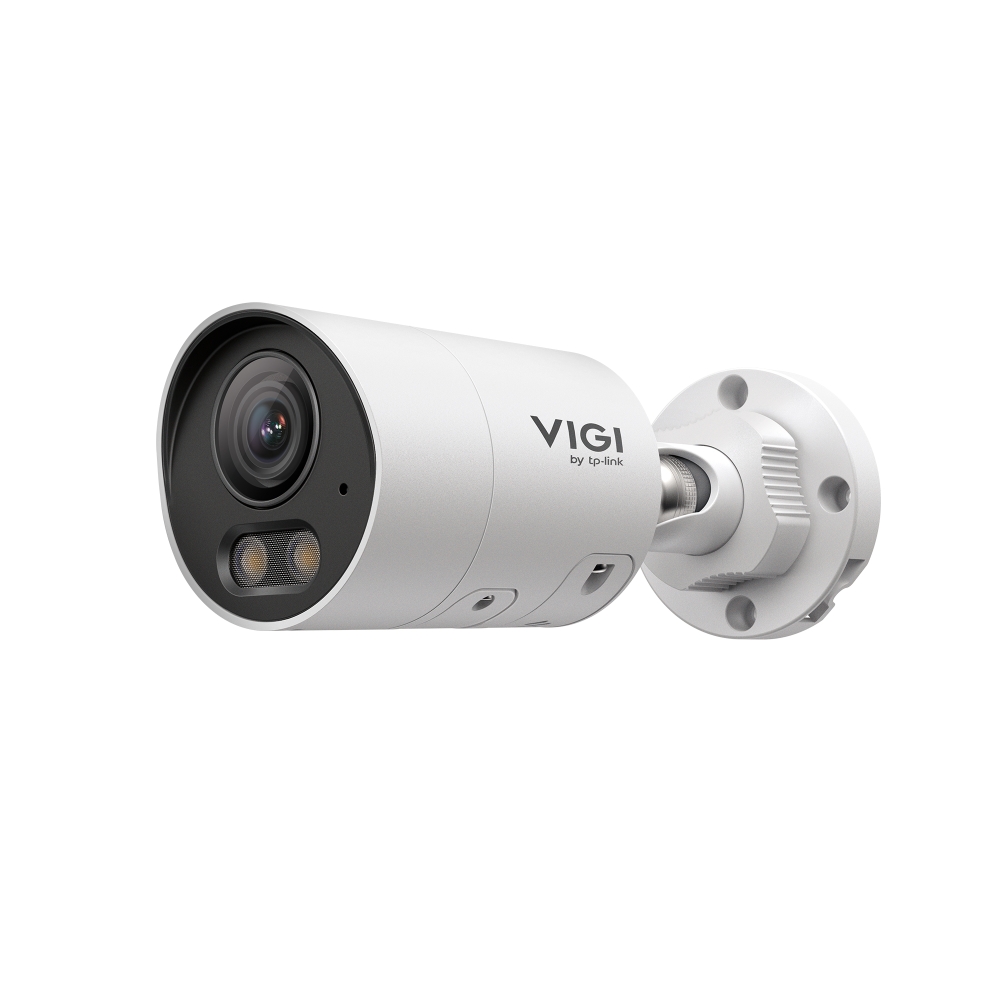

TP-Link VIGI InSight S345S 4MM ColorPro 2.0 Active-Deterrence AI H265 4MP PoE IP Smart-Dual-Light (30m IR + 30m White-Light) Ultra-Low-Light Full-Colour 120dB True-WDR Weatherproof Bullet Camera with 4mm Fixed Lens – 2-Way Audio
SKU: S345S
Categories: CCTV / Surveillance, IP Bullet Cameras, IP Cameras, IP Surveillance
Tags: 120dB True-WDR, 2-Way Audio, 4MP, Active Defense, Active Deterrence, AI, Artificial Intelligence, Built-in Mic, Bullet Camera, Camera, ColorPro, Full Colour, H265, Human Detection, Infrared, IP, IP67 Rated, IR, Loitering Detection, NDAA, Network, Panoramic, People Counting, Perimeter Protection, PoE, Smart Dual Light, Speaker, TP-Link, Vehicle Detection, VIGI, VIGI LightPro, VIGI People Counting, VIGI-AI, Weatherproof
TP-Link VIGI InSight S345S 4MM ColorPro 2.0 Active-Deterrence AI H265 4MP PoE IP Smart-Dual-Light (30m IR + 30m White-Light) Ultra-Low-Light Full-Colour 120dB True-WDR Weatherproof Bullet Camera with 4mm Fixed Lens – 2-Way Audio
Key Features :-

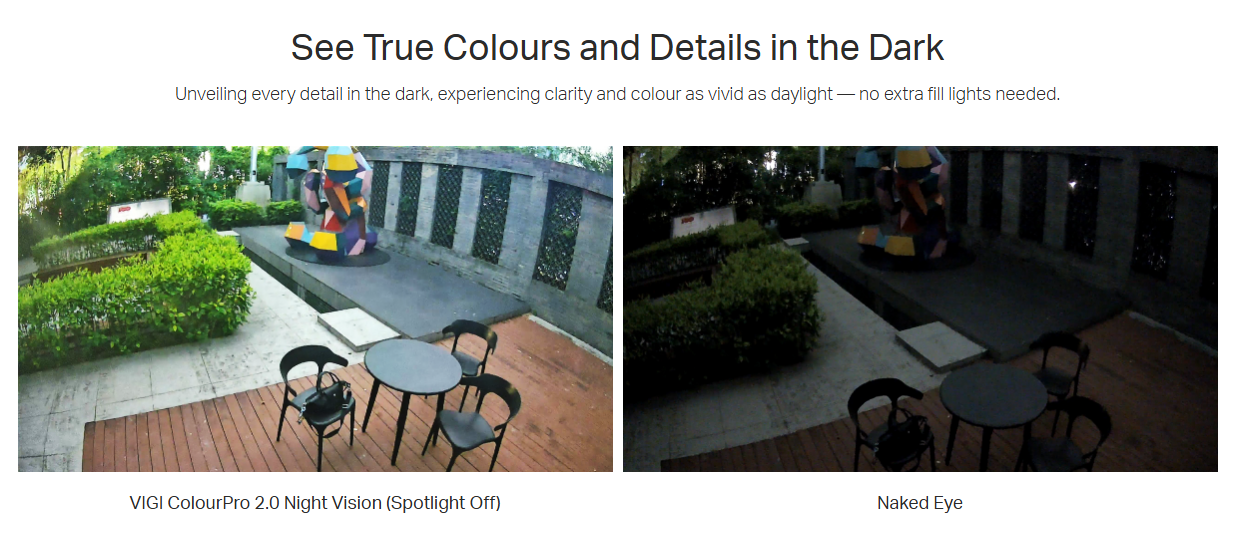

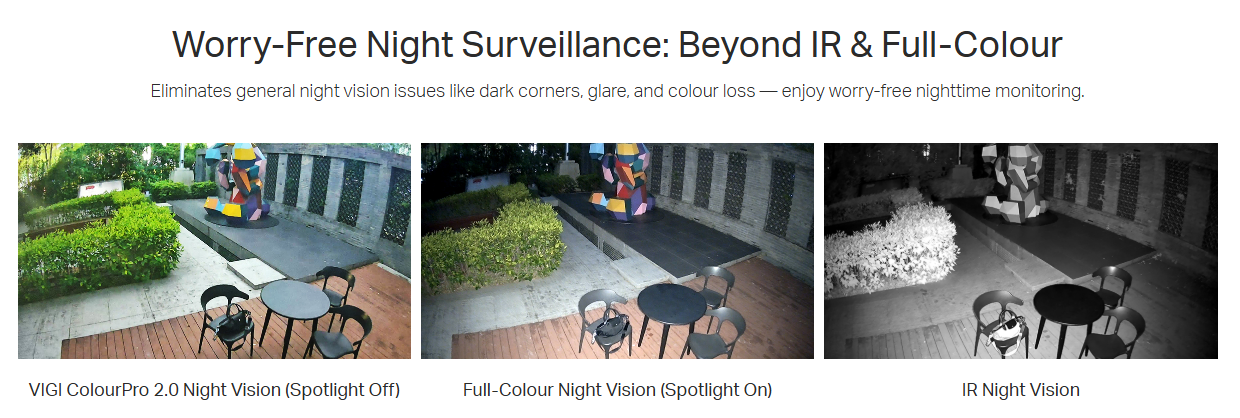

- AI-ISP Powered Ultra Low-Light Colour Night Vision
- 4MP Super-High Definition
- People & Vehicle Attributes Analytics‡
- Human & Vehicle Classification

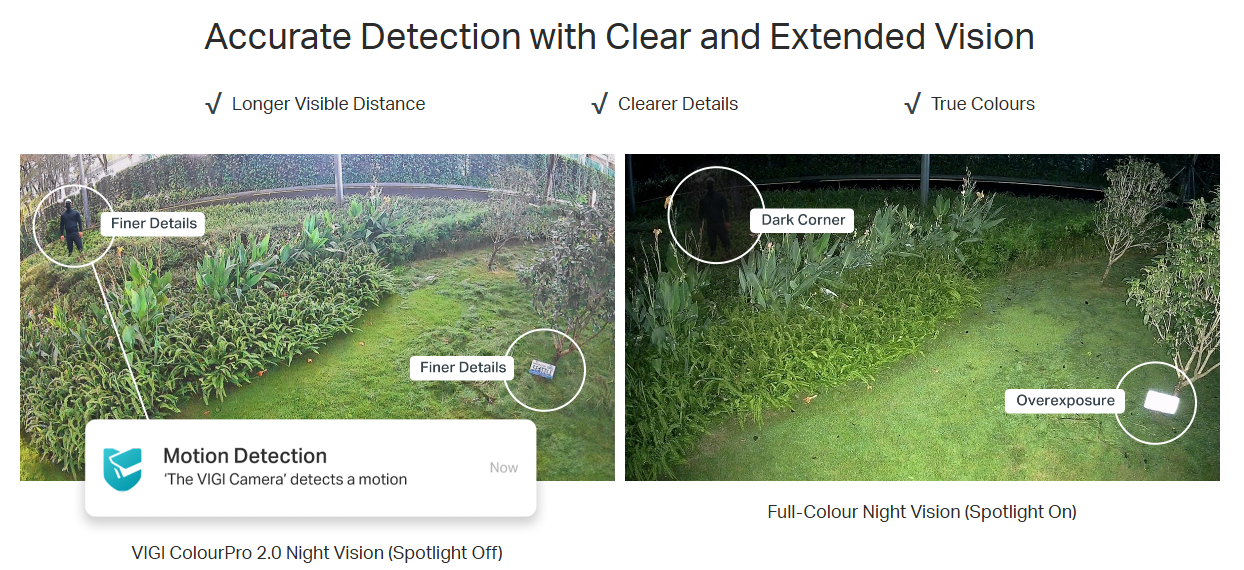

- Smart Detection
- Two-Way Audio
- Smart Video Enhancement Technology
- Flexible Alarm In/Out Devices Integration
- IP67 Weatherproof
- H.265+ Compression Technology
TP-Link VIGI 4E Principles Flyer
TP-Link Omada & VIGI United Solutions Flyer
| CAMERA | |
|---|---|

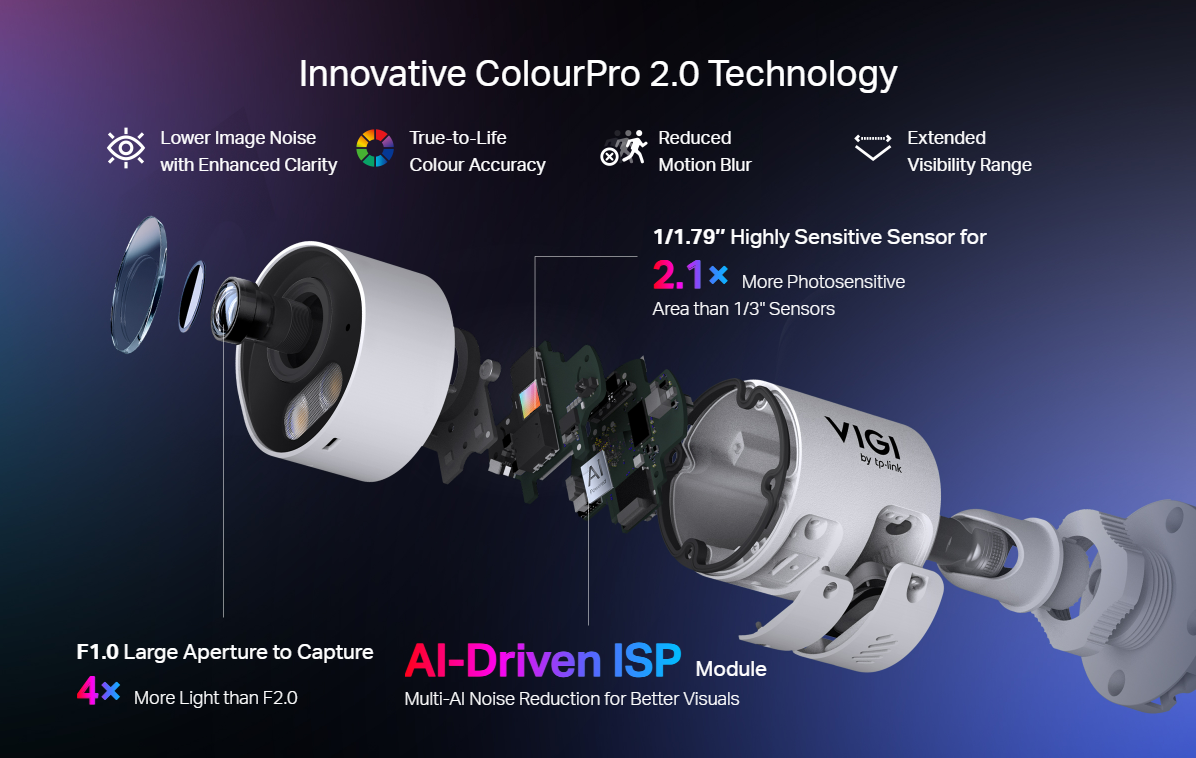

| Image Sensor | 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.0 |
| FOV | • Horizontal FOV: 95° • Vertical FOV: 51° • Diagonal FOV: 115° |
| Lens Mount | M16 |
| DORI Distance | 4 mm: • D: 249 ft (76 m) • O: 95 ft (29 m) • R: 46 ft (14 m) • I: 23 ft (7 m) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| ILLUMINATOR | |
|---|---|
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |

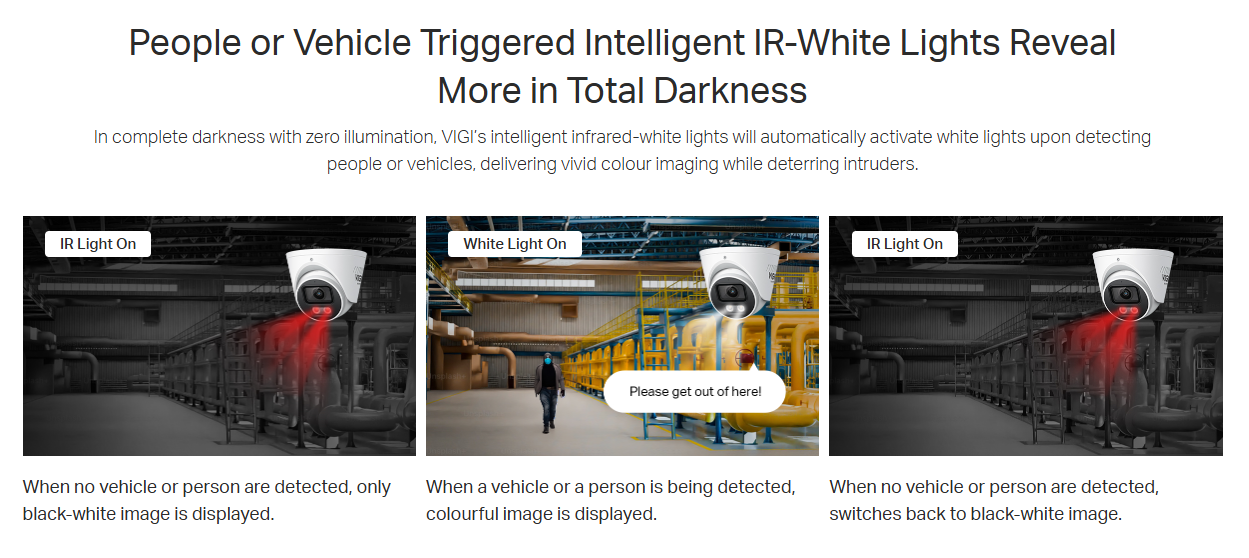

| Integrated Infrared-White LED | • Quantity: 2 • IR Range: 98 ft (30 m)† • White LED Range: 98 ft (30 m)† • Wavelength: 850nm |
| VIDEO | |
|---|---|
| Max. Resolution | 2688×1520 |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: Note: |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: • Note: |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror • Rotation • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | Yes (Built-in Speaker) |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) • Alarm Input Device |
| Alarm Linkage | • Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defense-Sound Alarm • Active Defense-Light Alarm • Email Alarm |
| Deep Learning Function | |
|---|---|
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡ |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In/Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| GENERAL | |
|---|---|
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Material | Metal |
| Net Weight | 0.6 kg |
| Power Supply | • 12V DC ± 5%, Max. 15.6 W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, Class 4, Max. 17.9 W |
| Protection | IP67 Weatherproof |
| Product Dimensions (L x W x H) | Φ2.6 × 7.5 in (Φ66 × 191 mm) |
| Certifications | CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF |
