TP-Link VIGI NVR4016H

Name: TP-Link VIGI NVR4016H
SKU: NVR4016H

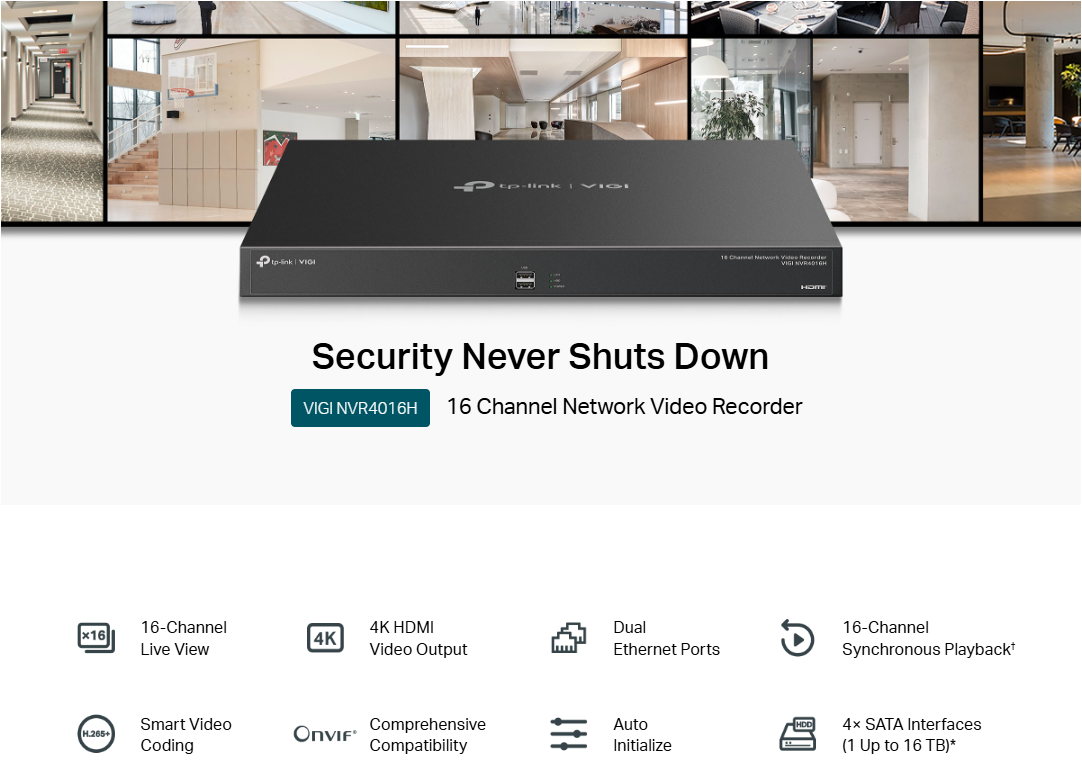

TP-Link VIGI NVR4016H 4K 1.5U 16-Channel Non-PoE Rackmount NVR – Without HDD – 2* GbE LAN Ports

This product is currently unavailable.

TP-Link VIGI NVR4016H 4K 1.5U 16-Channel Non-PoE Rackmount NVR – Without HDD – 2* GbE LAN Ports

Video and Audio
IP Video Input	16-Channel
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
HDMI Output Resolution	2 Channels • HDMI1 Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz • HDMI2 Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode	• HDMI1/HDMI2 Independent output • HDMI1/VGA Independent outputNote: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output.
Multi-View Display	1,4,6,8,9,16

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel^†
Capability	• 25fps: 10-ch@3MP、16-ch@1080P• 30fps: 4-ch@8MP、6-ch@5MP、8-ch@4MP

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF Profile S, CGI

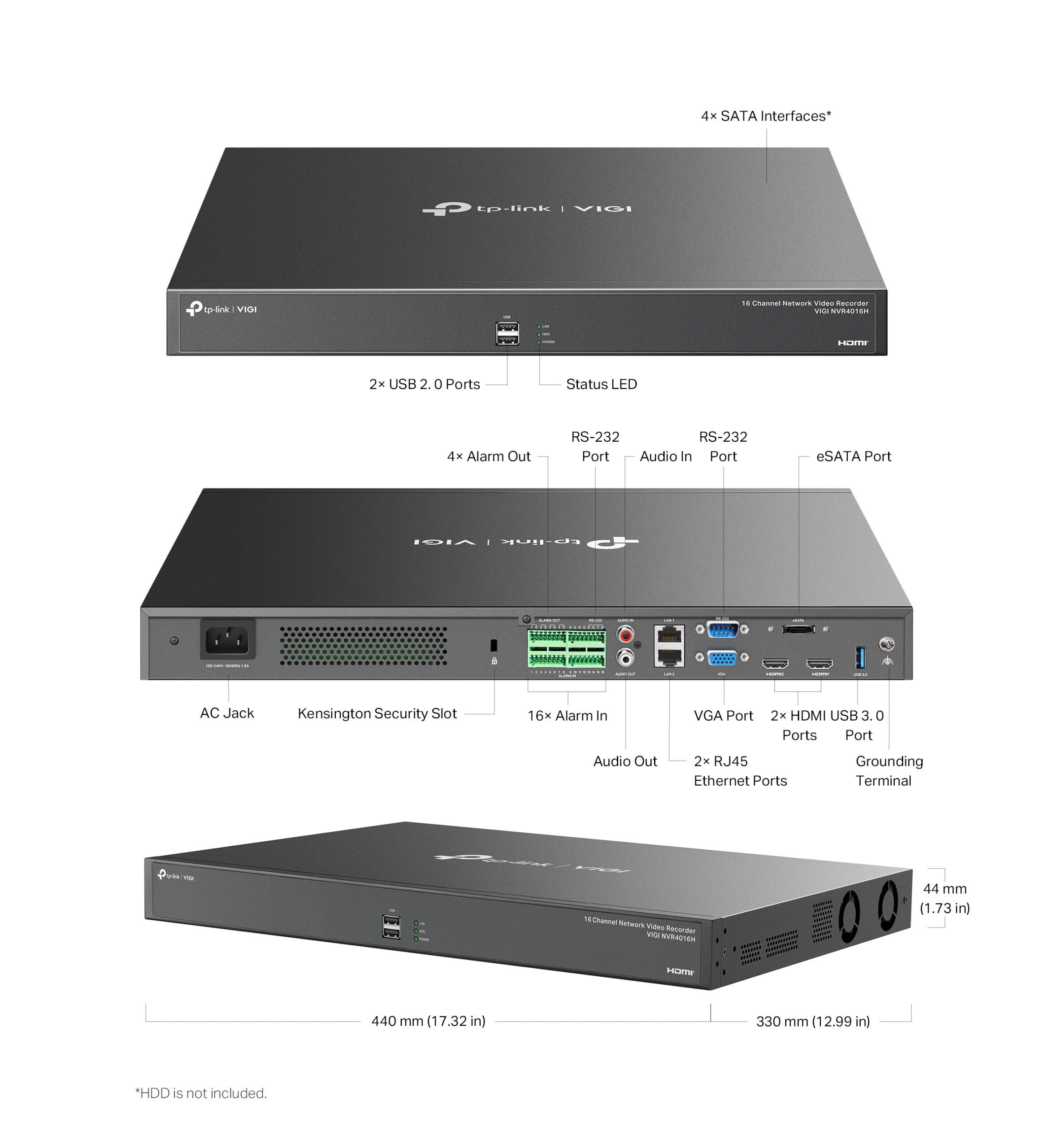

External Interface
Network Interface	2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	16/4
Serial Interface	1, RS232
Power	1× AC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	2
VGA	1

HARD DISK
SATA	4 SATA Interfaces
Capacity	Up to 16 TB Capacity for Each HDD*

Alarm
General Alarm	• Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera.
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera.
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera.

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Content	• VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet
Working Temperature	NVR: -10–55 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm)
Net Weight	4.0 Kg^#
Gross Weight	5.0 Kg^#
Power Supply	100-240 VAC, 50 to 60Hz, 1.5A
Max. Power Consumption	• 5.5 W (Without Disk) • 45 W (With Disk)
Certifications	CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF
