TVT TD-3004H1-4P-B1-B

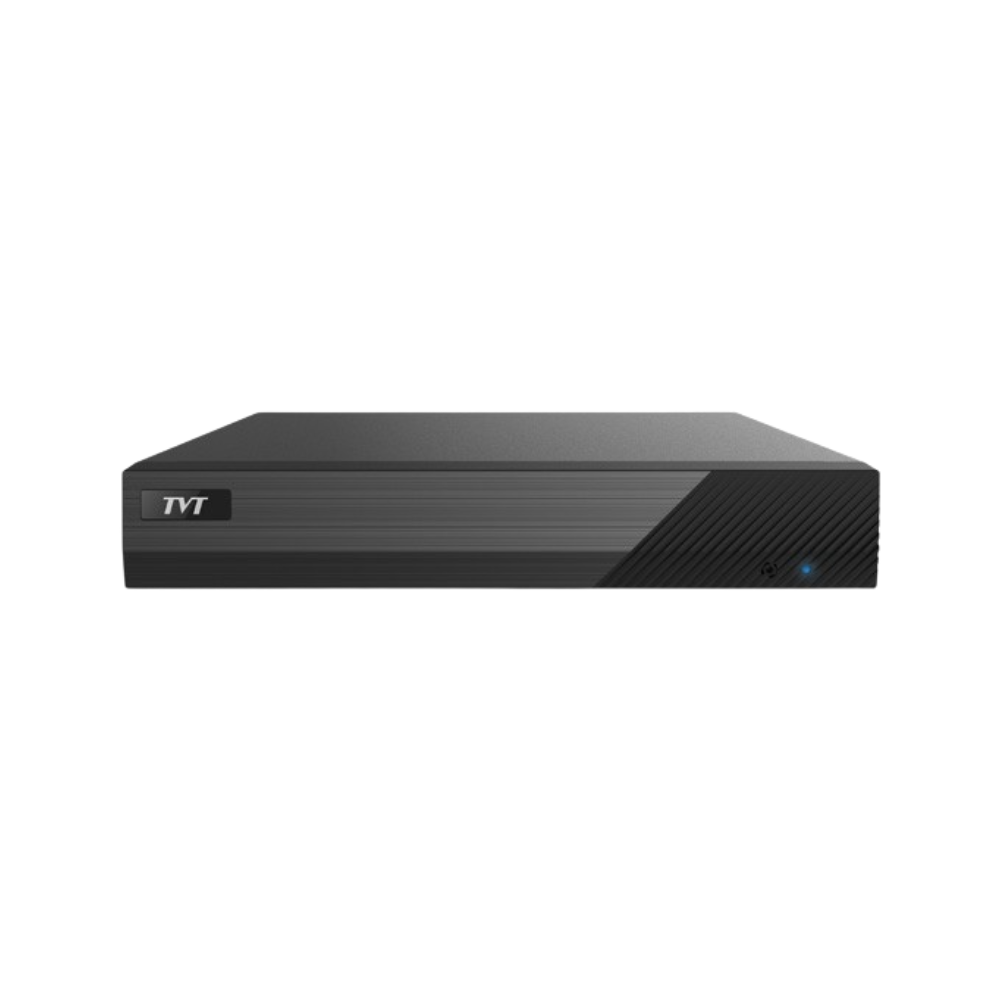

TVT TD-3004H1-4P-B1-B H265 4-Channel 4x PoE NVR – Network Video Recorder – Without HDD
SKU: TD-3004H1-4P-B1-B
Categories: CCTV / Surveillance, IP Surveillance, NVRs, TVT NVRs
Tags: 4-Channel, 4x PoE, H265, NDAA, Network Video Recorder, NVR, TVT
TVT TD-3004H1-4P-B1-B H265 4-Channel 4x PoE NVR – Network Video Recorder – Without HDD
Key Features :-
- Support 4-CH IP video input with resolution supported – 8MP/6MP/5MP/4MP/3MP/1080P/ 960P/720P/DI/CIF
- H.265S / H.265+ / H.265 / H.264 coding
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 4-CH simultaneous playback
- Search : time slice, time, event, tag, smart search
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, crowd density, etc.
- Support POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- Support preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- 4 PoE network ports; IPCs can be directly connected to NVR; PoE power supply supported
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Authorization management, log view and device status view
- 4K HD output, true high resolution display
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS
| Model | TD-3004H1-4P-B1-B | TD-3008H1-8P-B1-B | |
| System | OS | Embedded Linux | |
| Video | Network Input | 4 CH IPC input | 8CH IPC input |
| Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF | ||
| Output | HDMITM × 1: 3840×2160@30fps/1920×1080/1280×1024/1024×768 VGA: 1920×1080/1280×1024/1024× 768 HDMITM and VGA output the same video source |
||
| Compression | H.265S / H.265+ /H.265 /H.264 | ||
| Multi-screen Display | 1/4 | 1 / 4 / 6 / 8 / 9 | |
| Audio | Network Input | 4 CH IPC audio input | 8 CH IPC audio input |
| Local Input | No | ||
| Local Output | No (HDMITM supports the audio output) | ||
| Compression | G.711(U/A) | ||
| Record | Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF | |
| Frame Rate | 30fps/25fps(NTSC/PAL) | ||
| Playback | Simultaneous Playback | Max. 4 CH | Max. 8 CH |
| Search | Time slice / time / event / tag /smart search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Decoding Capability | Live View/ Playback | 1CH 8MP; 4CH 1080P |
|
| Alarm | Type | Manual, sensor, motion, exception, smart events, etc. | |
| Input | No | ||
| Output | No | ||
| Triggering | Record, snapshot, buzzer, preset, e-mail, etc. | ||
| Network | Interface | RJ 45 100Mbps × 1 | |
| Protocol | TCP / IP, HTTP, HTTPS, 802.1, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP, ONVIF, etc. |
||
| Incoming/ Outgoing Bandwidth | 40/64 (Mbps) | 64/64 (Mbps) | |
| *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. |
|||
| Client Connection | Max. 64 users access | ||
| Face | Face Detection Performance (AI by IPC) | 4 CH | 8 CH |
| Face Detection Performance (AI by Device) | No | ||
| Face Match Performance | No | ||
| Statistical Graph of Information | Bar graph | ||
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | ||
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) | 4 CH | 8 CH |
| Human/Vehicle Classification (AI by Device) | No | ||
| Video Metadata | Human/Vehicle Attribute Analysis (AI by IPC) | Yes | |
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP | |
| Plate Detection (AI by IPC) | Yes | ||
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD Interface | SATA3.0 × 1, max 10T | |
| Backup | Local Backup | USB flash drive | |
| Network Backup | Yes | ||
| Port | USB | USB 2.0 × 2 | |
| Remote Controller | No | ||
| PoE | PoE Ports | 100M RJ45 × 4 | 100M RJ45 × 8 |
| Standards | IEEE802.3AF/AT | ||
| Output Power | ≤ 40W | ≤ 72W | |
| Others | Power Supply | DC 48V/1.25A | DC 48V/1.8A |
| Consumption | ≤ 5W ( without HDD, and PoE off ) | ||
| Dimensions (mm) | 255 × 222 × 42 ( W × D × H ) | ||
| Working Environment | -10～50 °C, 10% ～ 90% humidity | ||
| Certificate | CE, FCC | ||
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | ||
