TVT TD-3364H8-A3H

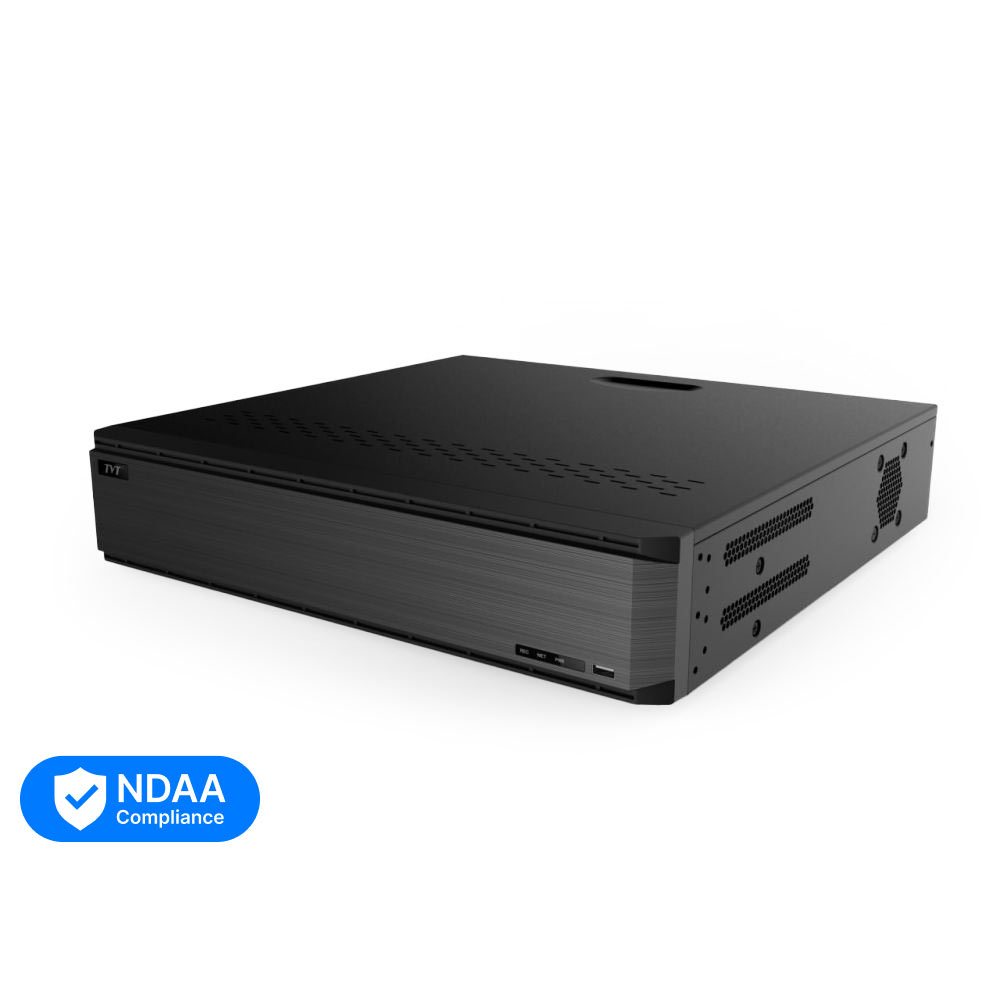

TVT TD-3364H8-A3H H265 4K UHD 64-Channel Non-PoE 2U Rackmount NVR – Network Video Recorder – 8x HDD Bays – Without HDD – Supports Face Comparison – Supports RAID 0/1/5/6/10
SKU: TD-3364H8-A3H
Categories: CCTV / Surveillance, IP Surveillance, NVRs, TVT NVRs
Tags: 64-Channel, AI, H265, NDAA, Network Video Recorder, NVR, Rackmount, RAID, TVT
TVT TD-3364H8-A3H H265 4K UHD 64-Channel Non-PoE 2U Rackmount NVR – Network Video Recorder – 8x HDD Bays – Without HDD – Supports Face Comparison – Supports RAID 0/1/5/6/10
Key Features :-
- H.265S / H.265+ / H.265 / H.264 coding
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
- Playback: 16 CH simultaneous playback
- Search: time slice, time, event, tag, smart and target database search
- Support face detection and comparison
- Support multiple VCA (Video Content Analytics) events, such as region intrusion, tripwire, etc.
- Support OS information overlay on live view and playback
- Support RAID 0, 1, 5, 6, 10
- Express and flexible backup via USB, network and so on
- Preview, record, playback, backup and remote access are supported
- DHCP, DDNS, PPPoE network protocol, etc.
- Compatible with third-party IPCs, such as ONVIF, Hikvision, etc.
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 8K output, true high resolution display
- Support PTZ preset and auto cruise
- Support NAT function and QR Code scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
| Model | TD-3364H8-A3H | |
| System | OS | Embedded Linux |
| Video | IP Video Input | 64 |
| Network Bandwidth | 640Mbps/ 640Mbps(Incoming/Outgoing) *When the AI function of the IPC is enabled, the actual incoming bandwidth (max.bitrate) is more than the set value in the NVR. |
|
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |
| Output | HDMITM1: 7680×4320@60, 7680×4320@30, 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 (When the resolution of HDMITM1output is 8K, HDMITM2 is unavailable and the maximum resolution of HDMITM3 output is 1920×1080) HDMITM2: 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 HDMITM3: 3840×2160@60, 3840×2160@30, 1920×1080，1280×1024, 1024×768 HDMITM4: 1920×1080, 1280×1024, 1024×768 VGA×1: 1920×1080, 1280×1024, 1024×768 (VGA and HDMITM1 output the same video source) |
|
| Multi-screen Display | Main output: 1/4/6/8/9/13/16/25/32/36/64 AUX output 1: 1/4/6/8/9/13/16/25/32/36 AUX output2: 1/4/6/8/9/13/16 AUX output 3: 1/4/6/8/9/13/16 Max. 132(64+36+16+16) |
|
| Compression | H.264/H.265/H.265+/H.265S | |
| Audio | Network input | 64 |
| Local Input | RCA×1 (for two-way talk) | |
| Local Output | RCA×1 | |
| HDMITM Audio Output | Support | |
| Compression | G.711(U/A) | |
| Record | Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
| Frame Rate | N: 30fps; P: 25fps (IPC high frame rate mode: N: 60fps; P: 50fps) | |
| Cloud Storage | Number of Channels | Up to 16CH |
| Record | Resolution: 1080P/720P | |
| Frame Rate: 15fps | ||
| Playback | Simultaneous Playback | 16CH |
| Search | Time slice/time/event/tag/smart search | |
| Function | Play, pause, FF, Rewind, digital zoom, previous frame, next frame, etc. | |
| Decoding Capability | Live View/Playback | Non-AI mode(default mode): 1×16MP@30fps/4×16MP@30fps /9×6MP@30fps /16×4MP@30fps /36×720P@30fps (AI by NVR, face comparison and PicSearch not supported; cloud storage supported) AI Mode: 1×16MP@30fps/4×12MP@30fps/9×5MP@30fps/16×3MP@30fps/36×720P@30fps (AI by NVR, face comparison and PicSearch supported; cloud storage not supported) |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. |
| Input | 16CH | |
| Output | 4CH | |
| Triggering | Record, snapshot, preset, e-mail, etc. | |
| Face | Face Detection Performance (AI by IPC) |
64CH |
| Face Detection Performance (AI by NVR) |
PicSearch disabled: 4CH (2MP) or 4CH(4MP) or 2CH (8MP) or 1CH(16MP) PicSearch enabled: 2CH (2MP) or 2CH(4MP) or 2CH (8MP) or 1CH(16MP) |
|
| Face Match Performance | PicSearch disabled:16CH PicSearch enabled: 8CH |
|
| Comparison Capability | 36 pictures/second | |
| Face Picture Database | 32 libraries 10000 face pictures |
|
| Face Picture Search | Search by picture is supported | |
| Database Management | Add, modify, delete and search face pictures | |
| Face Picture Adding | Add face pictures through APP, WEB and external import | |
| Face Picture Comparison | Supports successful face recognition alarm and stranger match alarm | |
| Track | Track display on a map | |
| Statistical Graph of Information |
Bar graph | |
| Statistical Mode of Information |
Statistics by day, week, month, quarter as well as customized time period | |
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) |
64CH |
| Human/Vehicle Classification (AI by NVR) |
PicSearch disabled: 8CH (2MP) or 4CH (4MP) or 2CH (8MP) or 1CH (16MP) PicSearch enabled: 4CH (2MP) or 4CH (4MP) or 2CH (8MP) or 1CH (16MP) |
|
| Video Metadata | Human/Vehicle Attribute Analysis (AI by IPC) |
Yes |
| Other Functions | Fisheye | Supports fisheye dewarping via NVR/Web Client/mobile APP |
| Plate Recognition (AI by IPC) |
Yes (License plate database: up to 50,000 plate numbers) | |
| Network | Protocol | TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP |
| Interface | RJ45 10/100/1000Mbps ×2 | |
| Client Connection | Max. 128 users access | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD Interface | SATA3.0 × 8, max 16TB per HDD |
| RAID Type | RAID0, 1, 5, 6, 10 | |
| E-SATA Interface | 2 | |
| Port | USB | USB3.0× 1; USB2.0 × 2 (Front:1) |
| RS485 | Yes (full-duplex), connect to PTZ or keyboard | |
| Remote Controller | Optional | |
| Others | Power | ATX-200W |
| Consumption | ≤50W (without HDD) | |
| Dimensions | 445 × 436 × 90mm (W×D×H) | |
| Certificate | CE, FCC | |
| Environmental Protection | Directive EU RoHS, REACH and WEEE | |
| Working Environment | -10~50℃; Humidity: 10%~90% | |
