TVT TD-9443A3BH-LR-D/AZ/PE/AR7

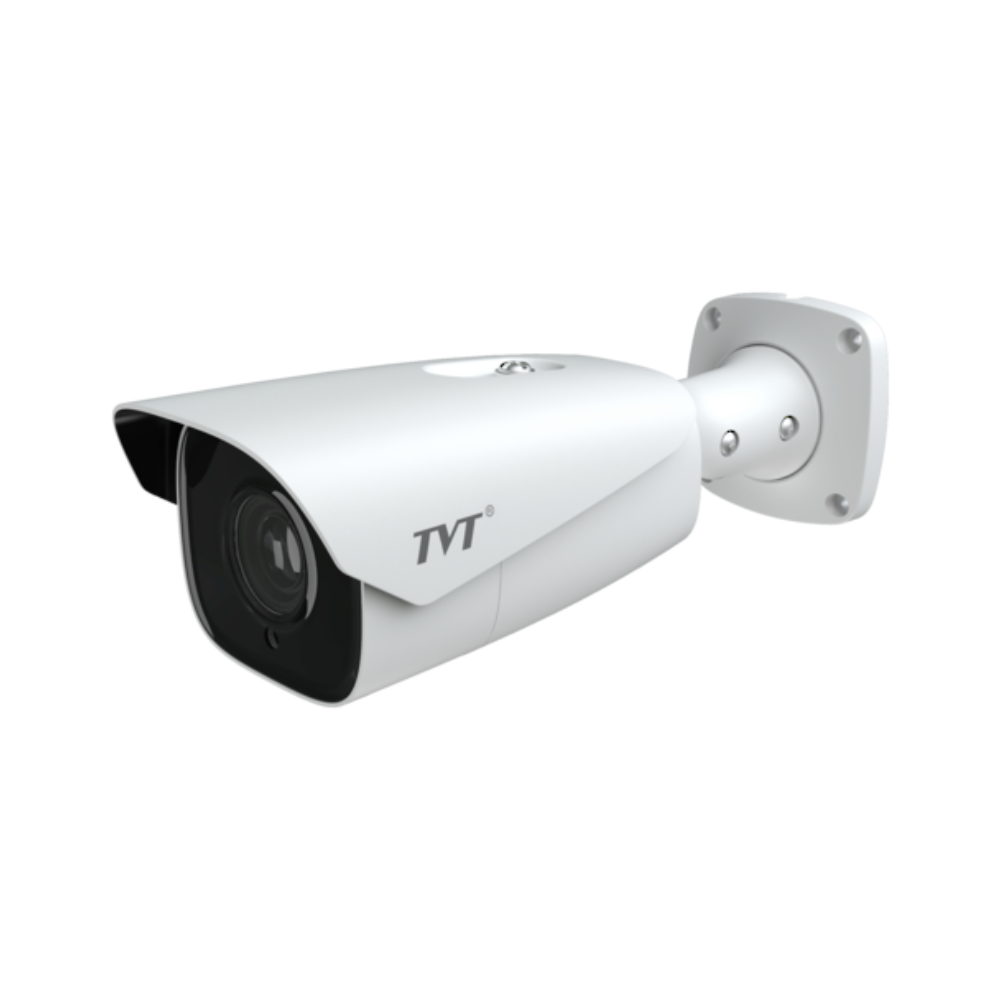

TVT TD-9443A3BH-LR-D/AZ/PE/AR7 H265 4MP PoE IP IR (up to 100m) 120dB True-WDR ANPR (Automatic Number Plate Recognition) LPR (License Plate Recognition) Weatherproof Bullet Camera with 8~32mm Motorized Zoom Lens – Supports Wiegand
SKU: TD-9443A3BH-LR-D/AZ/PE/AR7
Categories: CCTV / Surveillance, IP ANPR LPR Cameras, IP Cameras, IP Surveillance
Tags: 120dB True-WDR, 4MP, 4x Optical Zoom Lens, AI, ANPR, Automatic Number Plate Recognition, Bullet Camera, H265, Infrared, IP, IP67-Rated, IR, License Plate Recognition, LPR, Network, PoE, TVT, Varifocal Motorized Zoom Lens, Vehicle Detection, Weatherproof, Wiegand
TVT TD-9443A3BH-LR-D/AZ/PE/AR7 H265 4MP PoE IP IR (up to 100m) 120dB True-WDR ANPR (Automatic Number Plate Recognition) LPR (License Plate Recognition) Weatherproof Bullet Camera with 8~32mm Motorized Zoom Lens – Supports Wiegand
Key Features :-
- 4MP ( 2560 × 1520 ) @30fps H.265
- Support H265+/H264+/H265/H264/MJPEG coding
- ICR auto switch, true day/night
- Motorized lens
- 3D DNR, true WDR, HLC, BLC and ROI coding
- Built-in micro SD card slot, up to 256GB
- DC12V/AC24V/PoE power supply
- Support three streams
- IP67
- Support mobile surveillance by smart phones with iOS and Android OS
- Intelligent analytics: license plate recognition, vehicle type detection
| Model | TD-9443A3BH-LR | |
| Camera | ||
| Image Sensor | 1 / 1.8″ CMOS | |
| Image Size | 2592 × 1520 | |
| Electronic Shutter | Manual or auto; manual: 1 / 1 s ~ 1 / 100000s | |
| Iris Type | DC Iris | |
| Min. Illumination | 0.0007 [email protected],AGC ON; 0 lux with IR 0.001 [email protected], AGC ON; 0 lux with iR |
|
| Lens | [email protected], motorized | [email protected], motorized |
| Field of View | Horizontal:100.4°~49°; Vertical: 57°~29°;
Diagonal: 117.5°~56° |
Horizontal: 41°~15.5°; Vertical: 23°~9.5°;
Diagonal: 46.5°~18° |
| Lens Mount | Integrated | |
| Recommended ANPR Distance | 3~8m | 7~30m |
| Wide Dynamic Range | 120dB | |
| BLC | Yes | |
| HLC | Yes | |
| Defog | Yes | |
| Digital NR | 3D DNR | |
| S/N Ratio | ≥50dB | |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° | |
| Image | ||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |
| Resolution | 4MP (2592 ×1520 ), 2K (2560 ×1440), 3MP(2304 ×1296),1080P(1920 ×1080), 720P (1280 ×720 ), D1, CIF |
|
| Main Stream | 4MP/2K/3MP/1080P( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps ) HFR Mode: 1080P (60Hz: 1~60fps; 50Hz: 1~50fps) | |
| Sub Stream | 720P/D1/CIF ( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps ) | |
| Third Stream | D1/CIF ( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps ) | |
| Bit Rate | 64 Kbps ~ 8 Mbps | |
| Bit Rate Type | VBR / CBR | |
| Audio Compression | G711A / U | |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR,etc. adjustable through client software or web browser |
|
| ROI | Each ROI to be configured separately | |
| Interfaces | ||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |
| Video Output | CVBS output (BNC× 1) | |
| Audio | 1CH audio input; 1CH audio output | |
| Storage | Built-in micro SD card slot; up to 256GB | |
| Reset | Yes | |
| Alarm | 1CH alarm input; 1CH alarm output | |
| RS 485 | Yes | |
| Wiegand | Yes (26bit) | |
| Functions | ||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |
| Web Browser | IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ | |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, HTTP POST,
802.1x, UPnP, HTTPs, QoS |
|
| Interface Protocol | ONVIF | |
| Storage | Network remote storage; micro SD card storage | |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection | |
| Intelligent Analytics | License plate recognition, video exception detection | |
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock,
IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs |
|
| General Function | Watermark, video mask, heartbeat, corridor mode | |
| PoE | Yes , IEEE802.3af | |
| IR Distance | 50~70m | 70~100m |
| Protection Grade | IP67 | |
| LPR | ||
| Snapshot | Original image (4MP resolution) and license plate image | |
| Vehicle Plate Database | 10,000 | |
| License Plate Detection & Recognition |
Capture of vehicles with license plates and vehicles without license plate, Support plate exposure, travel
direction recognition,plate character fault tolerance, plate comparison, snapshot time display Vehicle feature extraction: including vehicle color, plate color,vehicle type, vehicle brand/model, production year, etc. |
|
| Capture Speed Range | 0~120km/h | |
| Others | ||
| Power Supply | DC12V/AC24V/PoE | |
| Power Consumption | < 12W | |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing) | |
| Storage Environment | – 30 °C ~ 65 °C (-22°F~149°F); Humidity: less than 95 % (non-condensing) | |
| Dimensions ( mm ) | 278.3 × 100.2 × 88.7 | |
| Weight ( net ) | Approx. 1.176KG | |
| Installation | Ceiling mounting; Wall mounting | |
| Certificate | CE, FCC | |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |
