TVT TD-9565E4B-A#D/AZ/PE/AW3

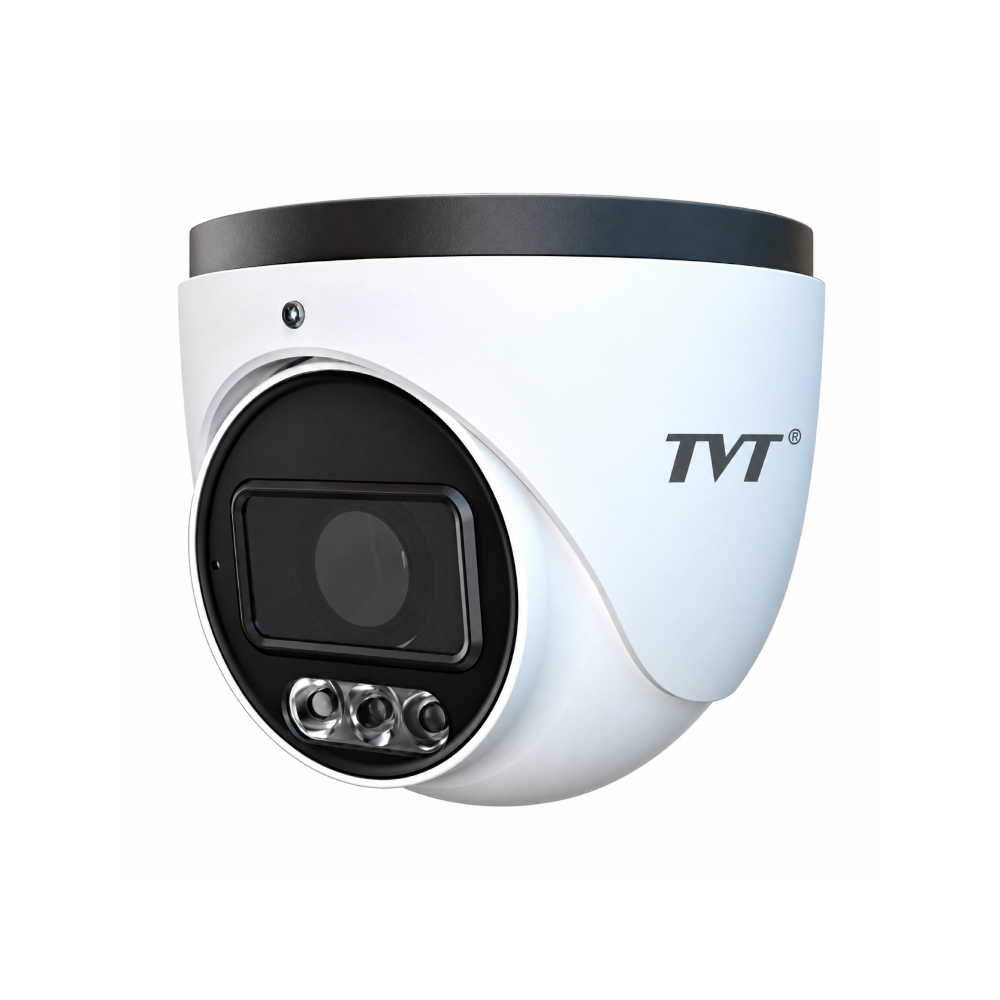

TVT TD-9565E4B-A#D/AZ/PE/AW3 H265 AI SMD 6MP PoE IP Smart-Dual-Light (50m IR + 40m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.7~13.5mm Motorized Zoom Lens – Built-in Mic
SKU: TD-9565E4B-A#D/AZ/PE/AW3
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 5x Optical Zoom Lens, 6MP, AI, Built-in Mic, Eyeball, Face Capture, Face Detection, Full Colour, H265, Human Detection, Infrared, IP, IP67-Rated, IR, Metadata, NDAA, Network, PoE, Smart Dual Light, SMD, Turret Camera, TVT, Varifocal Motorized Zoom Lens, Vehicle Detection, Weatherproof, White, White Light LED
TVT TD-9565E4B-A#D/AZ/PE/AW3 H265 AI SMD 6MP PoE IP Smart-Dual-Light (50m IR + 40m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.7~13.5mm Motorized Zoom Lens – Built-in Mic
Key Features :-
- H.265+ / H.265 / H.264 + / H.264 / MJPEG coding
- Max. resolution: 3296 × 1856
- 30~40m white light view distance; 30~50 IR view distance
- Support smart supplement light
- Support AI ISP
- ICR auto switch, true day / night vision
- 3D DNR, HWDR, HLC, BLC, Smart IR and ROI coding
- Built-in micro SD card slot; up to 512G
- DC12V/PoE power supply
- IP 67 ingress protection
- Support four streams
- Support NAT function
- Support SMD
- Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- Multiple smart events can be enabled at the same time
- Dual system backup
| Model | TD-9565E4B-A | |||
| Camera | ||||
| Image Sensor | 1/2.4 “CMOS | |||
| Max. Resolution | 3296 × 1856 | |||
| Electronic Shutter | 1/3s ~ 1/100000 s | |||
| Iris Type | Fixed Iris | DC Iris | ||
| Min. Illumination | 0.005 lux @F1.6, AGC ON; 0lux with illumination on | |||
| S/N Ratio | ≥50dB | |||
| Lens | [email protected], H.FoV: 104°; V.FoV:54°; D.FoV:125° [email protected], H.FoV: 80°; V.FoV:40°; D.FoV:95° |
[email protected], H.FoV: 104°~36.5°; V.FoV: 55°~21°; D.FoV: 124°~42° |
||
| Focus | Fixed | Motorized | ||
| Lens Mount | M12 | φ14 | ||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main/Fourth stream: H.265+/H.265/H.264+/H.264 Sub/Third stream: H.265+/H.265/H.264+/H.264/MJPEG |
|||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 6MP(3296×1856), 3K(3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P(1920×1080), 720P(1280×720), D1, VGA(640×480), 640×360, CIF, 480×240 | |||
| Main Stream | 6MP/3K/4MP/2K/1080P(60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Sub Stream | 1080P(60Hz:1~15fps; 50Hz: 1~12fps)/ 720P/D1/VGA/640×360/CIF/480×240(60Hz:1~30fps; 50Hz:1~25fps) |
|||
| Third Stream | 720P/D1/VGA/640×360/CIF(60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Fourth Stream | 1080P/720P/D1/VGA/640×360/CIF/480×240(60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 32 Kbps ~ 10 Mbps | |||
| Bit Rate Type | VBR/CBR | |||
| Audio Compression | G711A/U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
|||
| ROI | 8 ROI, each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 (10/100 Base-T) | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH audio output; 2CH built-in microphones | |||
| Storage | Built-in micro SD card slot; up to 512G | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Intelligent Analytics | ||||
| Intelligent Video Detection (IVD) |
Line crossing/region intrusion/entrance/exiting(human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection, people gathering detection | |||
| Statistics | Target counting by line/area , heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 71m(232ft) | 28m(92ft) | 14m(46ft) | 7m(23ft) |
| 3.6mm | 99m(323ft) | 40m(130ft) | 20m(65ft) | 10m(32ft) |
| 2.7~13.5mm(W) | 69m(227ft) | 28m(92ft) | 14m(45ft) | 7m(23ft) |
| 2.7~13.5mm(T) | 194m(637ft) | 78m(255ft) | 39m(127ft) | 19m(64ft) |
| Functions | ||||
| Remote Monitoring | Web Client/NVR/NVMS/mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
|||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, NAT, QoS, ICMP, IGMP | |||
| Interface Protocol | ONVIF Profile S/G/M/T | |||
| API&SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection, audio alarm | |||
| General Function | Watermark, video mask, heartbeat, smart IR, smart supplement light, corridor pattern, image distortion correction, ANR, cloud upgrade, disarming | |||
| Security | Firmware encryption, HTTPS encryption, configuration encryption, video encryption, illegal login lock, IP address filtering, 802.1x, log out after timeout basic and digest authentication for HTTP/RTSP/API service, TLS1.1/1.2/1.3 | |||
| PoE | Yes, IEEE802.3af, class3 | |||
| Supplement Light Range | IR range: 30~50 m; white light range: 30~40 m | |||
| Ingress Protection | IP67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | DC12V: <9.5W; PoE: <11.1W | |||
| Storage Conditions | -30℃ ~ 65℃(-22℉ ~149℉), Humidity: less than 95%(non-condensing) | |||
| Operating Conditions | -30℃ ~ 60℃(-22℉ ~140℉), Humidity: less than 95%(non-condensing) | |||
| Dimensions ( mm ) | Ø111 .6 × 99.3 | |||
| Weight ( net ) | Approx. 0.64KG | |||
| Material | Aluminum alloy body | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU), and REACH(EC1907/2006) | |||
