TVT TD-9565S4-C#D/AZ/PE/AW3

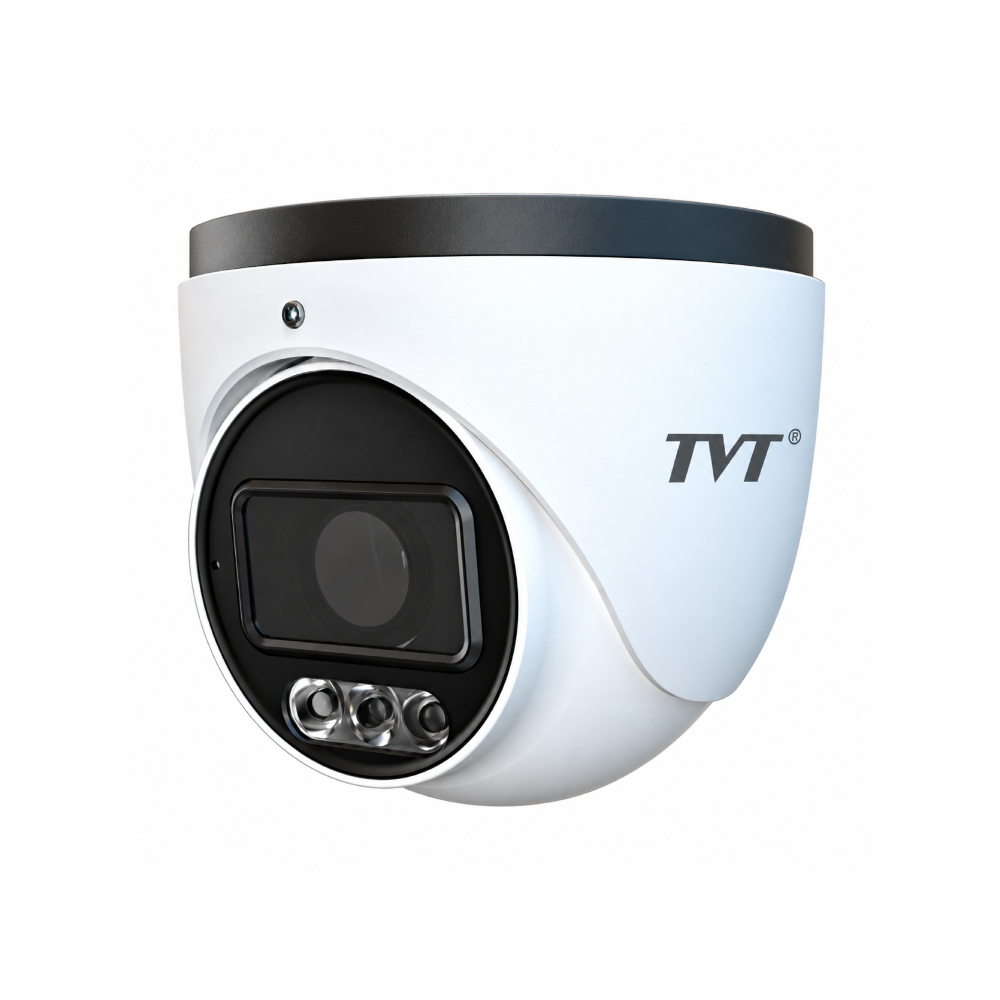

TVT TD-9565S4-C#D/AZ/PE/AW3 H265 AI SMD 6MP PoE IP Smart-Dual-Light (50m IR + 40m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8~12mm Motorized Zoom Lens – Built-in Mic – NDAA Compliant
SKU: TD-9565S4-C#D/AZ/PE/AW3
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 4x Optical Zoom Lens, 6MP, AI, Built-in Mic, Eyeball, Face Capture, Face Detection, Full Colour, H265, Human Detection, Infrared, IP, IP67-Rated, IR, NDAA, Network, PoE, Smart Dual Light, SMD, Turret Camera, TVT, Varifocal Motorized Zoom Lens, Vehicle Detection, Weatherproof, White, White Light LED
TVT TD-9565S4-C#D/AZ/PE/AW3 H265 AI SMD 6MP PoE IP Smart-Dual-Light (50m IR + 40m White-Light) Full-Colour 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8~12mm Motorized Zoom Lens – Built-in Mic – NDAA Compliant
Key Features :-
- H.265+ / H.265 / H.264+ / H.264 / MJPEG coding
- Max. resolution: 6MP (3200 x 1800)
- Auto day/night switch
- 3D DNR, HWDR, HLC, BLC, etc.
- ROI coding
- Support smart supplement light
- 30~40m white light view distance; 30~50m IR view distance
- DC12V / PoE power supply
- IP67 ingress protection
- Support three streams
- Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
- Support NAT function
- Support SMD
- Support line crossing detection, region intrusion detection,abandoned/missing object detection, video exception detection
- Dual-system backup
| Model | TD-9565S4-C | |||
| Camera | ||||
| Image Sensor | 1 / 2.5 “CMOS | |||
| Image Size | 3200×1800 | |||
| Electronic Shutter | 1 / 4 s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.008 lux @F1.6, AGC ON; 0 lux with illumination on | |||
| Lens | 2.8~12mm@F1.6, | |||
| Field of View | Horizontal: 108°~36°; Vertical: 57°~20°; Diagonal: 129°~42° | |||
| Focus | Motorized | |||
| Lens Mount | Φ14 | |||
| Day&Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Digital NR | Yes | |||
| S/N Ratio | ≥50dB | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 6MP (3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P(1920×1080), 720P (1280×720 ), D1, VGA (640×480), 480×240, CIF |
|||
| Main Stream | 6MP(1~20fps) /4MP/2K/1080P (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Sub Stream | 1080P (60Hz:1~15fps; 50Hz:1~12fps)/ 720P/D1/VGA/480×240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) |
|||
| Third Stream | D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) | |||
| Bit Rate | 64 Kbps ~8Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
|||
| Audio Compression | G711A/U | |||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ45 (10/100 Base-T) | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in MIC | |||
| Storage | Built-in micro SD card slot, up to 256GB | |||
| Reset | Yes | |||
| Functions | ||||
| Remote Monitoring | Web browser /NVR/NVMS/Mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, NAT, QoS |
|||
| Interface Protocol | ONVIF | |||
| API&SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict,network disconnection, video exception | |||
| Intelligent Video Detection (IVD) | Line crossing/region intrusion (human/vehicle classification),abandoned/missing object detection | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, ANR, cloud upgrade, smart supplement light, corridor pattern, disarming | |||
| PoE | Yes (IEEE802.3af) | |||
| Supplement Light Range | IR range: 30 ~ 50 m; white light range:30 ~ 40 m | |||
| Ingress Protection | IP67 | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API |
|||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8~12mm(W) | 66m(218ft) | 27m(87ft) | 13m(44ft) | 7m(23ft) |
| 2.8~12mm(T) | 204m(669ft) | 82m(269ft) | 41m(135ft) | 20m(66ft) |
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | DC12V: < 7.6W; PoE: < 9.2W | |||
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Φ 111.6 × 99.6 | |||
| Weight ( net ) | Approx. 0.66KG | |||
| Material | Aluminum alloy body | |||
| Installation | Ceiling mounting; wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
