CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras

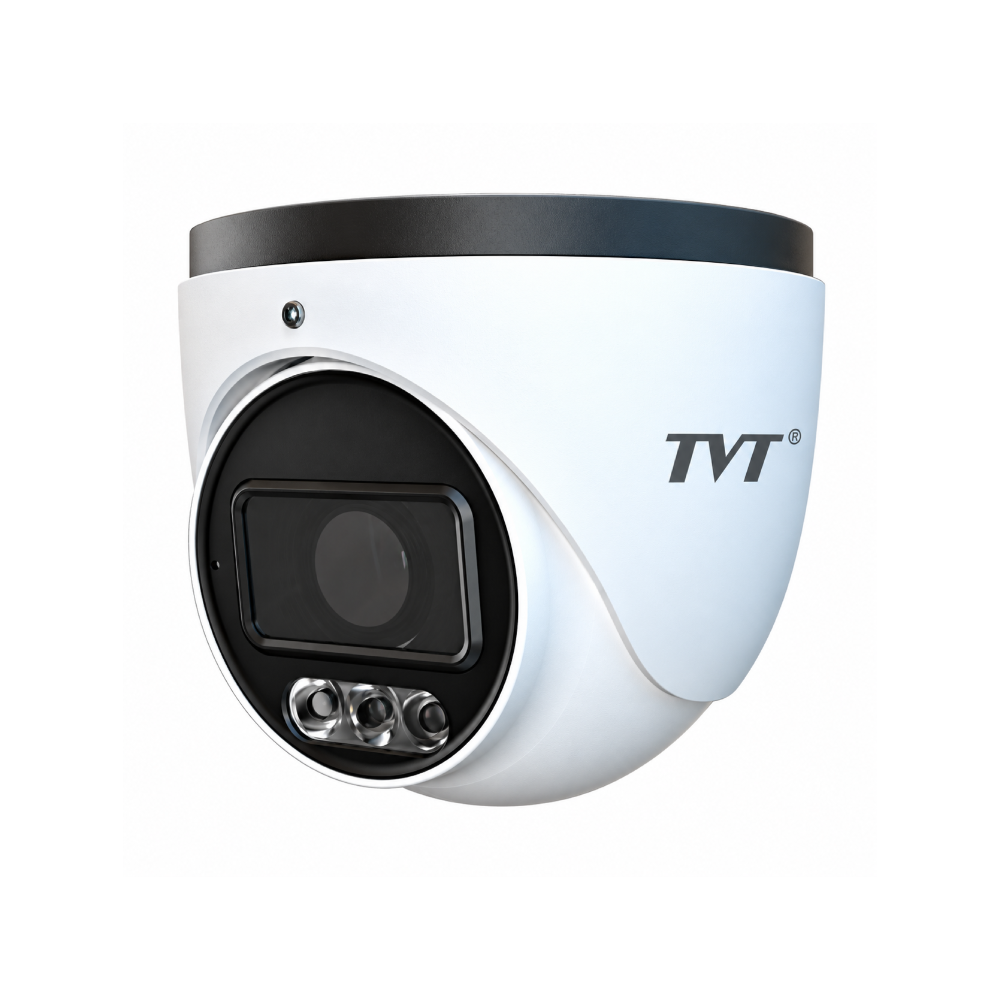

TVT TD-9585C4-A
TVT TD-9585C4-A H265 AI SMD 4K 8MP PoE IP Full-Colour (30m White-Light) Low-Light-Sensor 8MP Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Audio Mic – 110° Horizontal FoV
SKU: TD-9585C4-A
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras
Tags: 120dB True-WDR, 4K, 8MP, AI, Built-in Mic, Eyeball, Face Capture, Face Detection, Fixed Lens, Full Colour, H265, Human Detection, IP, IP67-Rated, NDAA, Network, PoE, SMD, Turret Camera, TVT, Vehicle Detection, Weatherproof, White, White Light LED
TVT TD-9585C4-A H265 AI SMD 4K 8MP PoE IP Full-Colour (30m White-Light) Low-Light-Sensor 8MP Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Audio Mic – 110° Horizontal FoV
Key Features :-
- H.265+ / H.265 / H.264 +/H.264 / MJPEG coding
- Max. resolution: 3840 × 2160
- 20~30m white light view distance
- 24/7 full color imaging
- 3D DNR, HLC, BLC, and ROI coding
- Support electronic image stabilization
- Support image distortion correction
- Support 1CH audio input; 1 CH built-in MIC
- Built-in micro SD card slot; up to 1TB
- DC12V/PoE power supply
- IP67 ingress protection
- Support three streams
- Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- Multiple smart events can be enabled at the same time
- Support P2P function
- Support dual-system backup
| Model | TD-9585C4-A | |||
| Camera | ||||
| Image Sensor | 1 / 1.8 “CMOS | |||
| Image Size | 3840× 2160 | |||
| Electronic Shutter | Auto or manual mode; manual mode: 1 / 3s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.0005 lux @F1.0, AGC ON; 0 lux with illumination on | |||
| S/N Ratio | ≥50dB | |||
| Lens | 2.8 [email protected], H.FoV: 110°; V.FoV:59°; D.FoV:129° 3.6 [email protected], H.FoV: 94°; V.FoV: 50°; D.FoV:111° |
|||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| EIS | Yes | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+/ H.265 / H.264+ / H.264 Sub stream/Third stream: H.265+/ H.265 / H.264+ / H.264/ MJPEG |
|||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 8MP (3840×2160),6MP (3200×1800),4MP (2688×1520),2K (2560×1440), 1080P (1920×1080), 720P (1280×720 ), D1, VGA (640 ×480), 640 ×360, CIF, 480×240 |
|||
| Main Stream | 8MP(1~20fps)/6MP/4MP/2K/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Sub Stream | 1080P/720P/D1/640 ×360 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Third Stream | 720P/D1/640 ×360/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 32 Kbps ~12 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
|||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH built-in microphone | |||
| Storage | Built-in micro SD card slot; up to 1 TB | |||
| Reset | Yes | |||
| Alarm | No | |||
| Intelligent Analytics | ||||
| Smart Event | Line crossing, region intrusion/entrance/exiting (human/vehicle classification), abandoned/ missing object detection | |||
| Statistics | Target counting by line | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection, face capture | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 76m(249ft) | 30m(98ft) | 15m(49ft) | 7m(23ft) |
| 3.6mm | 92m(301ft) | 37m(121ft) | 18m(59ft) | 9m(29ft) |
| Functions | ||||
| Remote Monitoring | Web Client/TVT NVR/NVMS/mobile APP | |||
| Web Browser | Chrome 92.0+/Edge 92.0+/Firefox 91.0+/Safari 13.1+ | |||
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP,
802.1x, UPnP, HTTPS, HTTP POST, P2P, QoS |
|||
| Interface Protocol | ONVIF | |||
| API & SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection | |||
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade, disarming | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock,
IP address filtering, 802.1x authentication, basic and token authentication for HTTP/RTSP |
|||
| PoE | Yes , IEEE802.3af | |||
| White Light Range | 20 ~30 m | |||
| Ingress Protection | IP 67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | <7.5W | |||
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Φ 111.6 × 99.6 | |||
| Weight ( net ) | Approx. 0.625KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
