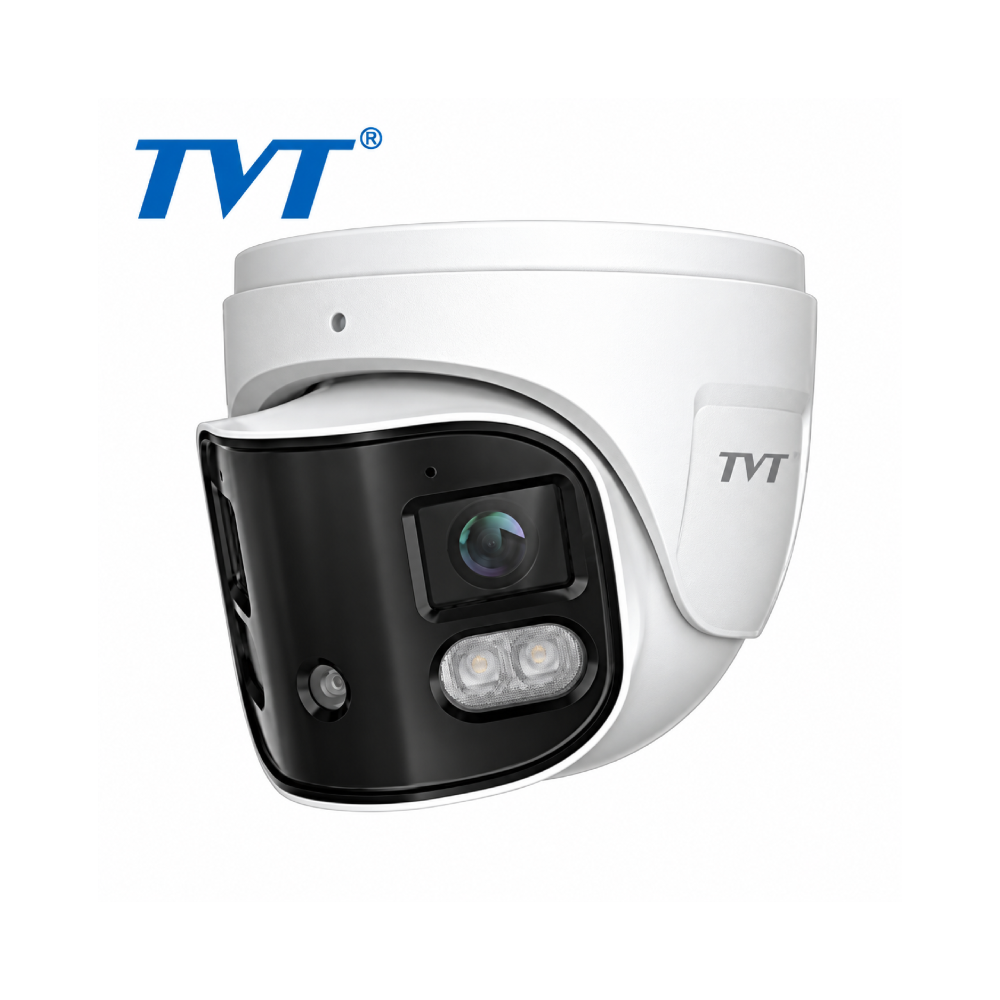

TVT TD-9585E3B-DP
TVT TD-9585E3B-DP H265 4K 8MP Splicing PoE IP Active-Deterrence Smart-Dual-Light (30m IR + 20m White-Light) Full-Colour 180° Ultra-Wide-Angle Weatherproof Eyeball Turret Camera – Built-in Mic + Speaker + Strobe + Siren
SKU: TD-9585E3B-DP
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance
Tags: 120dB True-WDR, 180 Degree, 2-Way Audio, 4K, 8MP, Active Deterrence, AI, Built-in Mic, Eyeball Camera, Face Capture, Face Detection, Full Colour, H265, Human Detection, IP, IP66-Rated, IR, Metadata, NDAA, Network, PoE, Siren, Smart Dual Light, Smart Hybrid Light, SMD, Speaker, Strobe, Turret Camera, TVT, Vehicle Detection, Weatherproof, White Light LED
TVT TD-9585E3B-DP H265 AI 4K 8MP Splicing PoE IP Active-Deterrence Smart-Dual-Light (30m IR + 20m White-Light) Full-Colour 180° Ultra-Wide-Angle Weatherproof Eyeball Turret Camera – Built-in Mic + Speaker + Strobe + Siren
Key Features :-
- H.265+ / H.265 / H.264+ / H.264 / MJPEG coding
- Max.resolution: 8MP (4640 × 1760)
- ICR auto switch, true day / night vision
- Support smart supplement light
- Up to 30m IR night view distance; up to 20m white light distance
- 3D DNR, WDR, HLC, BLC and ROI coding
- Built-in micro SD card slot, up to 256GB
- DC12V / PoE power supply
- IP66 protection grade
- Support three streams
- Support mobile surveillance by smart phones with iOS and Android OS
- Support SMD
- Support NAT function
- Multiple smart events can be enabled at the same time
- Blue and red light warning (flashing alternately)
- Support user-defined warning voice import
- Dual system backup
| Model | TD-9585E3B-DP | |||
| Camera | ||||
| Image Sensor | 1 / 2.7 ” Progressive Scan CMOS × 2 | |||
| Max. Resolution | 4640×1760 | |||
| Electronic Shutter | 1 / 3 s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.0032 [email protected], AGC ON; 0 lux with LED ON | |||
| Lens | 2.8mm @F1.6 | |||
| Field of View | Horizontal: 180°; Vertical:66° | |||
| Lens Mount | M12 | |||
| Day & Night | Auto | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| S/N Ratio | ≥50dB | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 8MP (4640×1760), 6MP(3632×1632), 4MP(3200×1200), 2MP (2304×864), 2048×768, 1600×608, 1200×448, 960×368, 640×240 |
|||
| Main Stream | 8MP/6MP/4MP/2MP(60Hz : 1~30fps; 50Hz : 1~25fps) | |||
| Sub Stream | 2048×768/1600×608/1200×448(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Third Stream | 1200×448/960×368/640×240(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) | |||
| Bit Rate | 64 Kbps ~10Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc.
adjustable through client software or web browser |
|||
| ROI | Each ROI to be configured separately | |||
| Interfaces | ||||
| Network | RJ 45 10M/100M self-adaptive Ethernet port | |||
| Video Output | No | |||
| Audio | 1CH audio input; 1CH audio output; 1CH built-in speaker; 2CH built-in MICs | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | 1CH alarm input; 1CH alarm output | |||
| Intelligent Analytics | ||||
| Intelligent Video Detection
(IVD) |
Line crossing, region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection |
|||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |||
| Face Detection | Face detection and face capture | |||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features,
4 motor vehicle features and 1 non-motor vehicle feature |
|||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 54m(178ft) | 22m(71ft) | 11m(36ft) | 5m(18ft) |
| Functions | ||||
| Remote Monitoring | Web Browser/NVMS/NVR/mobile APP | |||
| Web Browser | Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST/GET, 802.1x,
UPnP, HTTPS, NAT, QoS |
|||
| Interface Protocol | ONVIF | |||
| API&SDK | Yes | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm,
audio alarm, light alarm |
|||
| General Function | Watermark, video mask, heartbeat, smart supplement light, ANR, cloud upgrade, disarming | |||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuratio encryption, illegal login lock, IP address filtering,
802.1x authentication, basic and token authentication for HTTP/RTSP/API |
|||
| PoE | Yes , IEEE802.3af | |||
| Supplement Light Range | IR Range: up to 30m; White light range: up to 20m | |||
| Ingress Protection | IP66 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | PoE: max. 10.2W; DC12V: max. 9W | |||
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | Ø 111.5 × 102.2 | |||
| Weight ( net ) | Approx.0.719KG | |||
| Material | Aluminum alloy body | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
