TVT TVT-D2.8-B-6MP-C

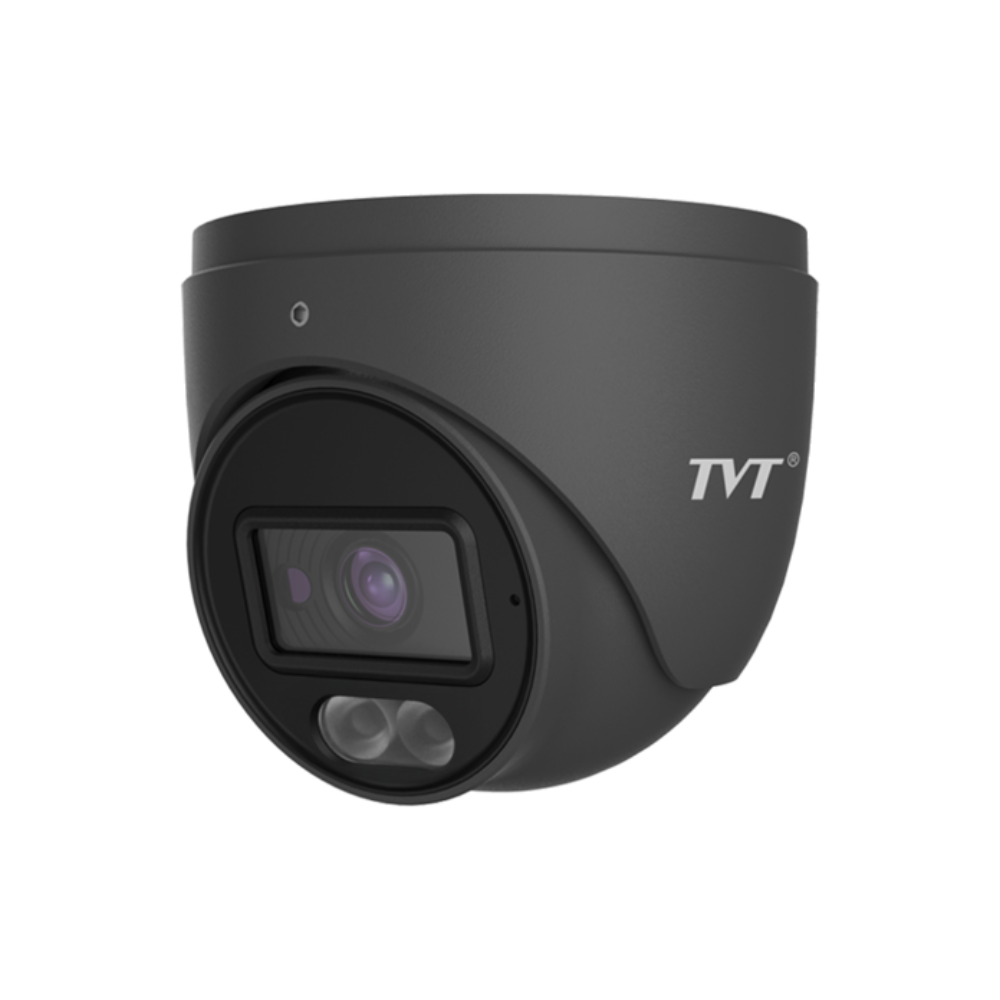

TVT TVT-D2.8-B-6MP-C H265 AI (Artificial Intelligence) 6MP PoE IP Smart-Hybrid-Light (30m IR +30m White-Light) Full-Colour 120dB True-WDR Weatherproof Dark-Grey (Black) Eyeball Network Camera with 2.8mm Fixed Lens – Built-in Audio Mic
TVT TVT-D2.8-B-6MP-C H265 AI (Artificial Intelligence) 6MP PoE IP Smart-Hybrid-Light (30m IR +30m White-Light) Full-Colour 120dB True-WDR Weatherproof Dark-Grey (Black) Eyeball Network Camera with 2.8mm Fixed Lens – Built-in Audio Mic
Key Features :-
- Manufacturers SKU = TD-9564S4-C
- H.265+ / H.265 / H.264+ / H.264 / MJPEG coding
- Max. resolution: 6MP (3200 × 1800)
- Auuto day/night switch
- 3D DNR, HWDR, HLC, BLC, etc.
- ROI coding
- Support smart supplement light
- 20~30m white light view distance; 20~30m IR view distance
- DC12V / PoE power supply
- IP 67 ingress protection
- Support three streams
- Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
- Support NAT function
- Support SMD
- Support line crossing detection, region intrusion detection,abandoned/missing object detection, video exception detection
- Dual-system backup
|
Model Specifications |
TD-9564S4-C |
|
Camera |
|
|
Image Sensor |
1 / 2.5 “CMOS |
|
Image Size |
3200 × 1800 |
|
Electronic Shutter |
1 / 4 s ~ 1 / 100000s |
|
Iris Type |
Fixed Iris |
|
Min. Illumination |
0.008 lux @ F1.6, AGC ON; 0 lux with illumination on |
|
Lens |
2.8mm @ F1.6, Horizontal FoV: 104°; Vertical FoV: 55°;Diagonal FoV: 128° 3.6mm @ F1.6, Horizontal FoV: 78°; Vertical FoV: 38°; Diagonal FoV: 94° |
|
Focus |
Fixed |
|
Lens Mount |
M12 |
|
Day&Night |
ICR |
|
Wide Dynamic Range |
120dB |
|
BLC |
Yes |
|
HLC |
Yes |
|
Digital NR |
Yes |
|
S/N Ratio |
≥50dB |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° |
|
Image |
|
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|
H.265 Compression Standard |
Main Profile @ Leve 4.1 High Tier |
|
Resolution |
6MP (3200 × 1800), 4MP (2688× 1520), 1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640× 480), 480× 240, CIF |
|
Main Stream |
60Hz: 6MP (1~20fps) /4MP/1080P (1~30fps) 50Hz: 6MP (1~20fps) /4MP/1080P (1~25fps) |
|
Sub Stream |
720P / D1 / VGA / CIF (60Hz: 1~30fps; 50Hz: 1~25fps) |
|
Third Stream |
D1 / 480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) |
|
Bit Rate |
64 Kbps ~8Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
|
Audio Compression |
G711A/U |
|
ROI |
Each ROI to be configured separately |
|
Interfaces |
|
|
Network |
RJ45 |
|
Video Output |
No |
|
Audio |
1CH audio input; 1CH built-in MIC |
|
Storage |
Built-in micro SD card slot, up to 256GB |
|
Reset |
Yes |
|
Functions |
|
|
Remote Monitoring |
Web browser / TVT NVR / NVMS2.X / Mobile APP |
|
Web Browser |
IE (plug-in required) / Google Chrome / Edge / Firefox / Safari |
|
Online Connection |
Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage; micro SD card storage |
|
Smart Alarm |
Motion detection, SMD, SD card full, SD card error |
|
Smart Event |
Video Exception (scene change, video blur and abnormal color detection), line crossing /region intrusion detection(human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection |
|
General Function |
Watermark, IP address filtering, video mask, heartbeat, system config backup, smart supplement light, corridor pattern |
|
PoE |
Yes (IEEE802.3af) |
|
Supplement Light Range |
IR range: 20 ~ 30 m; white light range:20 ~ 30 m |
|
Ingress Protection |
IP67 |
|
Security |
Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP |
|
DORI Distance |
||||
|
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8mm |
69m(226ft) |
28m(92ft) |
14m(46ft) |
7m(23ft) |
|
3.6mm |
105m(344ft) |
42m(138ft) |
21m(69ft) |
10m(33ft) |
|
Others |
||||
|
Power Supply |
DC12V / PoE |
|||
|
Power Consumption |
< 6.5W |
|||
|
Storage Conditions |
– 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
|||
|
Operating Conditions |
– 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
|||
|
Dimensions ( mm ) |
Φ 94.6 × 82.8 |
|||
|
Weight ( net ) |
Approx. 0.45KG |
|||
|
Installation |
Ceiling mounting; wall mounting |
|||
|
Certificate |
CE, FCC |
|||
|
Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
|||
