Uniview IPC2125LE-ADF40KM-G

Uniview IPC2125LE-ADF40KM-G Easystar H265 5MP PoE IP IR (50m) 120dB True-WDR Weatherproof Bullet Camera with 4mm Fixed Lens – Buit-in Audio Mic

  • Uniview TR-JB05-B-IN

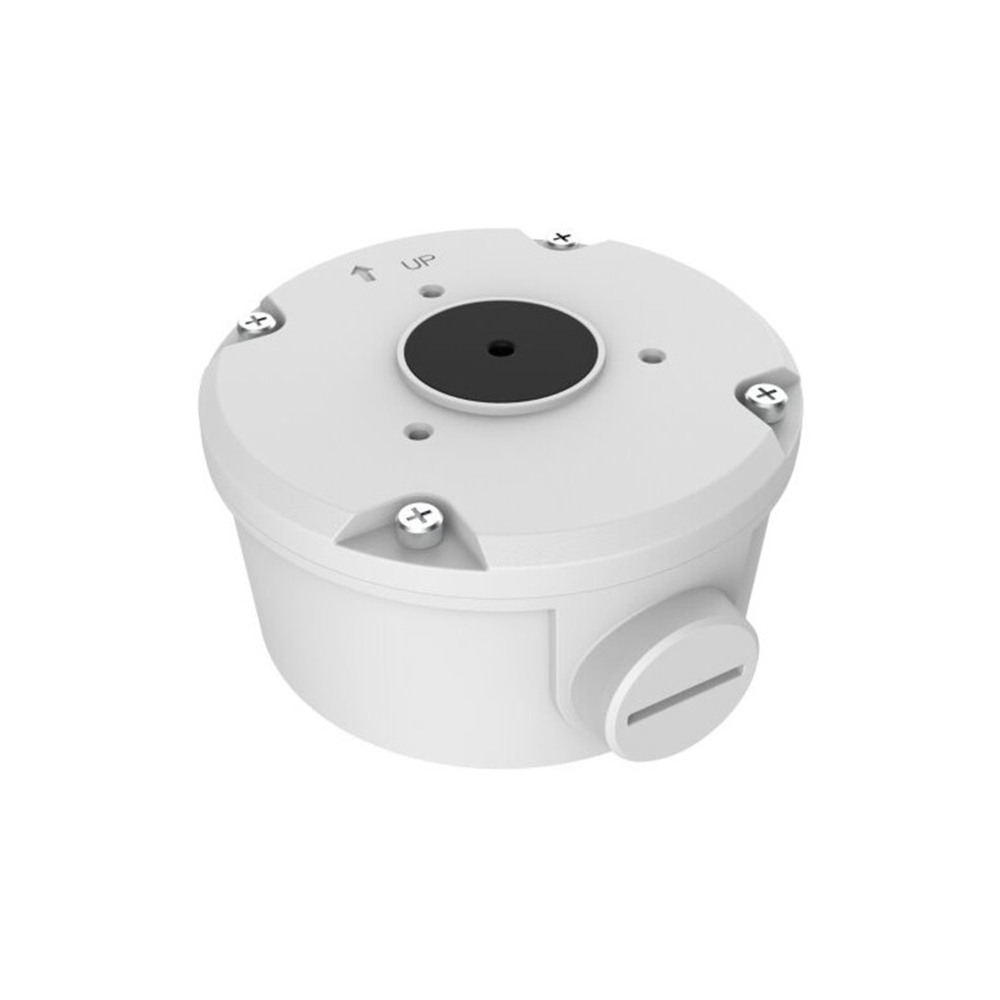

    Uniview TR-JB05-B-IN Weatherproof Cable Junction box for IPC21XX series with circular base

  • Uniview TR-A01-IN

    Uniview Uniview TR-A01-IN Plastic Cable Gland - To Be Used with Uniview Camera Mounting Accessories

  • Uniview TR-UP06-C-IN

    Uniview TR-UP06-C-IN Weatherproof Galvanized Steel Pole-Mount Adapter / Bracket For IPC23XX OEM、IPC23XX/22X、IPC74X and IPC252/26X Series Cameras

This product is currently unavailable.

Uniview IPC2125LE-ADF40KM-G Easystar H265 5MP PoE IP IR (50m) 120dB True-WDR Weatherproof Bullet Camera with 4mm Fixed Lens – Buit-in Audio Mic

Features –

  • High quality image with 5MP, 1/2.7″CMOS sensor
  • 5MP (2880*1620) @ 25/20fps; 4MP (2560*1440) @ 25/20fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @ 30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Easystar technology ensures high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 50m (164ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis
IPC2125LE-ADF28KM-G IPC2125LE-ADF40KM-G
Camera
Sensor 1/2.7″, 5.0 megapixel, progressive scan, CMOS
Minimum Illumination Support Easystar: Colour: 0.003 lux ( F1.6, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
S/N >56dB
WDR 120dB
Lens
Lens Type 2.8mm @F1.6 4.0mm @F1.6
Iris Fixed
Field of View (H) 112.9° 91.2°
Field of View (V) 59.1° 47.9°
Field of View (D) 121.2° 95.9°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0
Illuminator
IR Range Up to 50m (164ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
9:16 Corridor Mode Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video stream Dual streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC Supported
BLC Supported
Defog Digital Defog
Events
Basic Detection Cross line, intrusion(based on human body detection),motion detection, Ultra motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Power Interface Ø 5.5mm coaxial power plug
Dimensions(L × W × H) 190×73×71mm (7.5”×2.9”×2.8”)
Weight 0.45kg (0.99lb)
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
