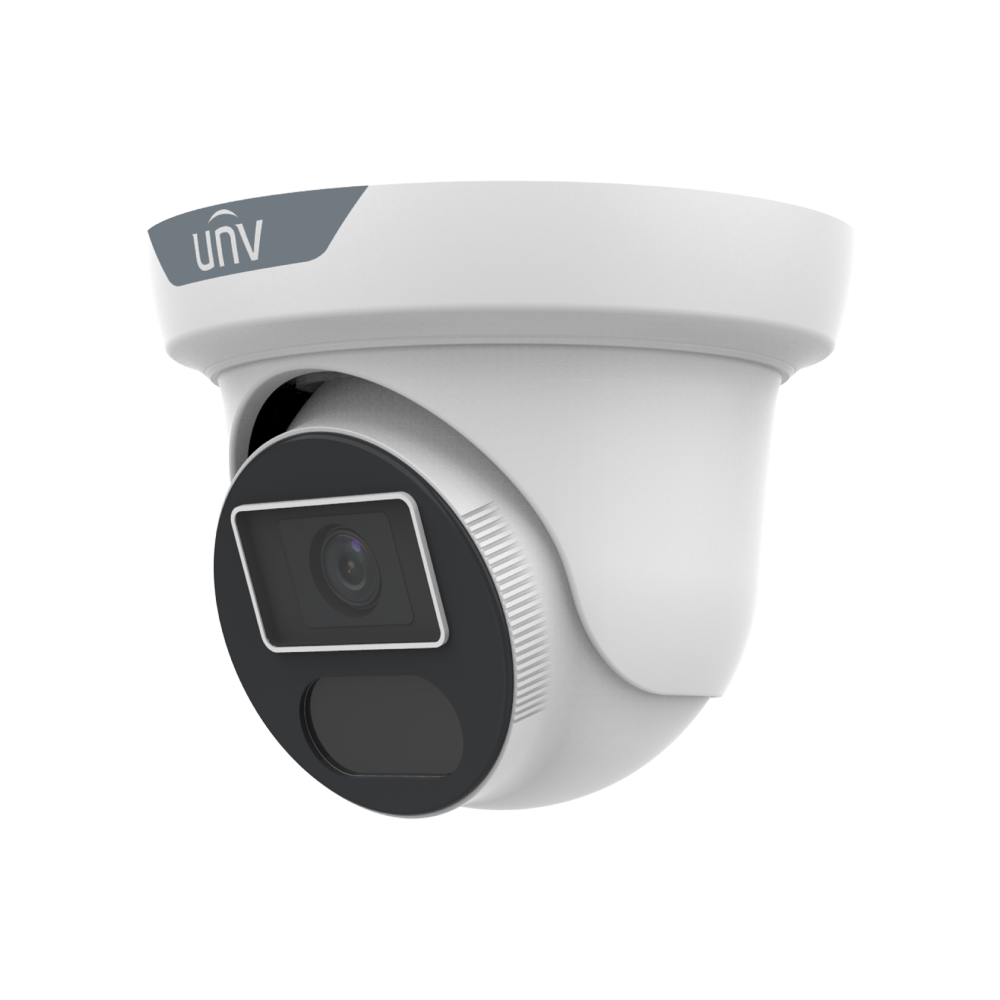

Uniview IPC3618SS-ADF28K-I1 Prime-Series H265 AI (Artificial Intelligence) LightHunter 4K 8MP PoE IP EXIR (40m) 130dB True-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Mic

Key Features :-

  • High quality image with 8 MP, 1/2.8″ CMOS sensor
  • 8MP (3840 × 2160) @ 30/25 (default) fps; 5MP (3072 × 1728) @ 30/25 fps; 4MP (2560 × 1440) @ 30/25 fps; 1080P (1920 × 1080) @ 30/25 fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
  • Intelligent people flow counting and crowd density monitoring
  • Smart intrusion prevention with color retrieval
  • ASM (auto scene match)
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • 130 dB true WDR technology ensures clear image in strong backlight scene
  • Supports 9:16 corridor mode
  • Built-in mic
  • Smart IR, up to 40m (131.2 ft) IR distance
  • MicroSD, up to 512 GB
  • IP67 protection
IPC3618SS-ADF28K-I1 IPC3618SS-ADF40K-I1
Camera
Max Resolution 8 MP
Sensor 1/2.8″ CMOS
Min. Illumination Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° to 352°, Tilt: 0° to 70°, Rotate: 0° to 350°
S/N >56 dB
WDR 130 dB
Lens
Focal Length 2.8 mm 4.0 mm
Iris Type Fixed
Iris F1.6
Field of View (H) 97.49° 88.35°
Field of View (V) 52.31° 49.61°
Field of View (D) 102.29° 94.19°
Lens Type Fixed
DORI
DORI Distance (Lens) 2.8 mm 4 mm
DORI Distance (Detect) 86.9 m (285.1 ft.) 124.1 m (407.2 ft.)
DORI Distance (Observe) 34.8 m (114.2 ft.) 49.7 m (163.1 ft.)
DORI Distance (Recognize) 17.4 m (57.1 ft.) 24.8 m (81.4 ft.)
DORI Distance (Identify) 8.7 m (28.5 ft.) 12.4 m (40.7 ft.)
Illuminator
Illumination Distance (IR) 40 m (131.2 ft)
IR On/Off Control Auto/Manual
Wavelength 850 nm
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps;
Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps;
Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple streams
Auto Scene Match (ASM) Support (only WDR)
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IR Support
Digital Noise Reduction 2D/3D DNR
Flip Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital defog
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis N/A
People Counting Support people flow counting and crowd density detection
Attribute Collection SIP with color retrieval
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression G.711U, G.711A, AAC-LC
Audio Bitrate G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio N/A
Suppression Support
Sampling Rate G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, APP
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 7.0 W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø129 mm × 110 mm (Ø5.1″ × 4.3″) (Ø × H)
Weight 0.42 kg (0.93 lb)
Material Metal + Plastic
Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button N/A
Web Client Language 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
UNV IPC3618SS-ADF28(40)K-I1

Data-sheet
